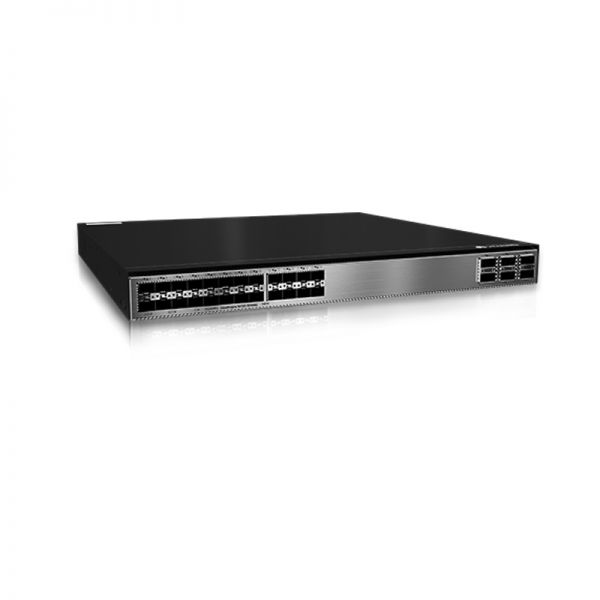

S6730-S24X6Q – Huawei S6730-S Series Switches


Model: S6730-S24X6Q – Huawei S6730-S Series Switches
Detail:
S6730-S Series,24 x 10 Gig SFP+/6 x 40 Gig QSFP/Dual pluggable power modules, 600W AC (Power supply needs to be

AED11,299.00

CloudEngine S6730-S series full-featured 10 GE switches are Huawei’s new generation fixed switches ,to provide 10 GEĀ downlink ports as well as 40 GE uplink ports.

CloudEngine S6730-S can be used to provide high-speed access for 10 Gbit/s access to high-density servers or function as aĀ core/aggregation switch on a campus network to provide 40 Gbit/s rate. In addition, CloudEngine S6730-S provides a wideĀ variety of services, comprehensive security policies, and various QoS features to help customers build scalable, manageable,reliable, and secure campus and data center networks.

Quick Specs

Table 1 shows the Quick Specs.

Product Code S6730-S24X6Q
Forwarding Performance 480Ā Mpps
Switching Capacity 960Gbps/2.4Tbps
Fixed ports 24 x 10 Gig SFP+, 6 x 40 Gig QSFP+
Dimensions (W x D x H) 442 mm x 420 mm x 43.6 mm
Chassis height(U) 1U
Input voltage

(Power supply needs to be ordered seperately.)

AC Power

• Rated AC voltage: 100V to 240V AC; 50/60 Hz

• Max. AC voltage: 90V to 290V AC; 45–65 Hz

DC Power

• Rated DC voltage: –48Vļ½žā€“60V

• Max. DC voltage:-38.4V DCļ½ž-72V DC

Input current

(Power supply needs to be ordered seperately.)

AC 600W:Max 8A

DC 1000W:Max 30A

Product Details

S6730-SĀ SeriesĀ provides these features and highlights:

• Abundant Convergence

• Providing Granular Network Management

• Flexible Ethernet Networking

• Intelligent Stack (iStack)

• Cloud-based Management

• VXLAN

• OPS

• Big Data Powered Collaborative Security

• Intelligent O&M

• Intelligent Upgrade

The Accessories

Table 2 shows the recommended elements for theĀ S6730-S Series.

Models Descriptions
eSFP-GE-SX-MM850 Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC)
SFP-GE-LX-SM1310 Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC)
S-SFP-GE-LH40-SM1310 Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,40km,LC)
S-SFP-GE-LH40-SM1550 Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,40km,LC)
S-SFP-GE-LH80-SM1550 Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,80km,LC)
eSFP-GE-ZX100-SM1550 Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,100km,LC)
SFP-GE-LX-SM1310-BIDI Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,10km,LC)
SFP-GE-LX-SM1490-BIDI Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,10km,LC)
LE2MGSC40DE0 Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,40km,LC)
LE2MGSC40ED0 Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,40km,LC)
SFP-GE-ZBXD1 Optical Transceiver,eSFP,GE,BIDI Single-mode Module(1570nm(Tx)/1490nm(Rx),80km,LC)
SFP-GE-ZBXU1 Optical Transceiver,eSFP,GE,BiDi Single-mode Module(1490nm(Tx)/1570nm(Rx),80km,LC)
SFP-GE-BXU1-SC 1000Base,BIDI Optical Transceiver,SFP,GE,Single-mode Module(TX1490nm/RX1310nm,10km,SC)
CWDM-SFPGE-1471 CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1471nm,80km,LC)
CWDM-SFPGE-1491 CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1491nm,80km,LC)
CWDM-SFPGE-1511 CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1511nm,80km,LC)
CWDM-SFPGE-1531 CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1531nm,80km,LC)
CWDM-SFPGE-1551 CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1551nm,80km,LC)
CWDM-SFPGE-1571 CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1571nm,80km,LC)
CWDM-SFPGE-1591 CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1591nm,80km,LC)
CWDM-SFPGE-1611 CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1611nm,80km,LC)
DWDM-SFPGE-1560-61 DWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1560.61nm,120km,LC)
SFP-1000BaseT Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45)
SFP-10G-USR 10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC)
OMXD30000 Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC)
SFP-10G-iLR Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,1.4km,LC)
OSX010000 Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC)
OSX040N01 Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,40km,LC)
SFP-10G-ER-1310 Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,40km,LC)
SFP-10G-ZR 10GBase-ZR Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,80km,LC)
SFP-10G-BXU1 10GBase,BIDI Optical Transceiver,SFP+,10G,Single-mode Module(TX1270nm/RX1330nm,10km,LC)
SFP-10G-BXD1 10GBase,BIDI Optical Transceiver,SFP+,10G,Single-mode Module(TX1330nm/RX1270nm,10km,LC)
SFP-10G-ER-SM1330-BIDI Optical Transceiver,SFP+,10G,BIDI Single-mode Module(TX 1330nm/RX 1270nm,40km,LC)
SFP-10G-ER-SM1270-BIDI Optical Transceiver,SFP+,10G,BIDI Single-mode Module(TX 1270nm/RX 1330nm,40km,LC)
SFP-10G-ZCW1471 Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1471nm,70km,LC)
SFP-10G-ZCW1491 Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1491nm,70km,LC)
SFP-10G-ZCW1511 Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1511nm,70km,LC)
SFP-10G-ZCW1531 Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1531nm,70km,LC)
SFP-10G-ZCW1551 Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1551nm,70km,LC)
SFP-10G-ZCW1571 Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1571nm,70km,LC)
SFP-10G-ZCW1591 Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1591nm,70km,LC)
SFP-10G-ZCW1611 Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1611nm,70km,LC)
QSFP-40G-SR4 40GBase-SR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.15km,MPO)
QSFP-40G-iSR4 40GBase-iSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.15km,MPO)(Connect to four SFP+ Optical Transceiver)
QSFP-40G-eSR4 40GBase-eSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.3km,MPO)(Connect to four SFP+ Optical Transceiver)
QSFP-40G-iSM4 40GBase-iSM4 Optical Transceiver,QSFP+,40G,Single-mode Module (1310nm,1.4km,MPO)(Connect to four SFP+ Optical Transceiver)
QSFP-40G-eSM4 40GBase-eSM4 Optical Transceiver,QSFP+,40G,Single-mode Module (1310nm,10km,MPO)(Connect to four SFP+ Optical Transceiver)

Compare to Similar Items

TableĀ 3Ā shows the comparison.

Models S6720-30C-EI-24S-AC S6730-S24X6Q
Switching Capacity 2.56 Tbit/s 960Gbps/2.4Tbps
Forwarding Performance 720 Mpps 480Ā Mpps
Fixed Ports 24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports 24 x 10 Gig SFP+, 6 x 40 Gig QSFP+
Power Supply AC Power Supply AC/DC Power Supply
Dimensions (W x D x H) 442 mm x 420 mm x 44.4 mm 442 mm x 420 mm x 43.6 mm
Input Voltage AC:
Rated voltage range: 100V to 240V, 50 Hz/60 Hz
Maximum voltage range: 90V to 264V, 50 Hz/60 Hz
AC Power

• Rated AC voltage: 100V to 240V AC; 50/60 Hz

• Max. AC voltage: 90V to 290V AC; 45–65 Hz

DC Power

• Rated DC voltage: –48Vļ½žā€“60V

• Max. DC voltage:-38.4V DCļ½ž-72V DC

S6730-S24X6Q Specification

Forwarding Performance 480Ā Mpps
Switching Capacity 960Gbps/2.4Tbps
Fixed ports 24 x 10 Gig SFP+, 6 x 40 Gig QSFP+
Dimensions (W x D x H) 442 mm x 420 mm x 43.6 mm
Chassis height(U) 1U
Input voltage

(Power supply needs to be ordered seperately.)

AC Power

• Rated AC voltage: 100V to 240V AC; 50/60 Hz

• Max. AC voltage: 90V to 290V AC; 45–65 Hz

DC Power

• Rated DC voltage: –48Vļ½žā€“60V

• Max. DC voltage:-38.4V DCļ½ž-72V DC

Input current AC 600W:Max 8A

DC 1000W:Max 30A

Maximum power consumption 225W
Minimum power consumption 88W
Operating temperature

Ā

• 0–1800 m altitude: -5ā„ƒto 45ā„ƒ

• 1800–5000 m altitude: The operating temperature reduces by 1ā„ƒĀ every time the

altitude increases by 220 m.

Storage temperature -40-70ā„ƒ
Operating altitude 5000 m
Noise (sound pressure at normal

temperature)

65dB(A)
Surge protection specification AC power interface: differential mode: ±6kV: common mode: ±6kV

DC power interface: differential mode: ±2kV: common mode: ±4kV

Power supply type 600W AC Power

1000W DC Power

Relative humidity 5% to 95% (non-condensing)
Fans 4 , Fan modules are pluggable
Heat dissipation

Ā

Heat dissipation with fan, intelligent fan speed adjustment

Service Features

MAC Up to 64K MAC address entries

IEEE 802.1d standards compliance

MAC address learning and aging

Static, dynamic, and blackhole MAC address entries

Packet filtering based on source MAC addresses

VLAN 4K VLANs

Guest VLANs and voice VLANs

GVRP

MUX VLAN

VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports

VLAN mapping

ARP Static ARP

Dynamic ARP

IP routing Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing

policy

Up to 64K FIBv4 entries

Up to 32K FIBv6 entries

Interoperability VLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVST

Link-type Negotiation Protocol (LNP), similar to DTP

VLAN Central Management Protocol (VCMP), similar to VTP

Ethernet loop protection RRPP ring topology and RRPP multi-instance

Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection

switchover

SEP

ERPS (G.8032)

BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM

STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)

BPDU protection, root protection, and loop protection

IPv6 features Neighbor Discover (ND)

PMTU

IPv6 Ping, IPv6 Tracert, IPv6 Telnet

ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol

types

Multicast Listener Discovery snooping (MLDv1/v2)

IPv6 addresses configured for sub-interfaces, VRRP6, DHCPv6, and L3VPN

Multicast

Ā

IGMP v1/v2/v3 snooping and IGMP fast leave

Multicast forwarding in a VLAN and multicast replication between VLANs

Multicast load balancing among member ports of a trunk

Controllable multicast

Port-based multicast traffic statistics

IGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSM

MSDP

Multicast VPN

QoS/ACL Rate limiting in the inbound and outbound directions of a port

Packet redirection

Port-based traffic policing and two-rate three-color CAR

Eight queues on each port

DRR, SP, and DRR+SP queue scheduling algorithms

WRED

Re-marking of the 802.1p and DSCP fields of packets

Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC

address, destination MAC address, source IP address, destination IP address, TCP/UDP

source/destination port number, protocol type, and VLAN ID

Queue-based rate limiting and shaping on ports

Security Hierarchical user management and password protection

DoS attack defense, ARP attack defense, and ICMP attack defense

Binding of the IP address, MAC address, port number, and VLAN ID

Port isolation, port security, and sticky MAC

MAC Forced Forwarding (MFF)

Blackhole MAC address entries

Limit on the number of learned MAC addresses

IEEE 802.1X authentication and limit on the number of users on a port

AAA authentication, RADIUS authentication, and HWTACACS authentication

NAC

SSH V2.0

HTTPS

CPU protection

Blacklist and whitelist

Attack source tracing and punishment for IPv6 packets such as ND, DHCPv6, and MLD packets

IPSec for management packet encryption

ECA

Deception

Reliability

Ā

LACP

E-Trunk

Ethernet OAM (IEEE 802.3ah and IEEE 802.1ag)

ITU-Y.1731

DLDP

LLDP

BFD for BGP, BFD for IS-IS, BFD for OSPF, BFD for static routes

VXLAN VXLAN functions, VXLAN L2 and L3 gateways, BGP EVPN

VXLAN configuration using NETCONF/YANG

SVF Acting as the parent node to vertically virtualize downlink switches and APs as one device for

management

Two-layer client architecture

ASs can be independently configured. Services not supported by templates can be configured on

the parent node.

Third-party devices allowed between SVF parent and clients

iPCA

Ā

Marking service packets to obtain the packet loss ratio and number of lost packets in real time

Measurement of the number of lost packets and packet loss ratio on networks and devices

Management andĀ maintenance

Ā

Cloud-based management

Virtual cable test

SNMP v1/v2c/v3

RMON

Web-based NMS

System logs and alarms of different severities

GVRP

MUX VLAN

NetStream

Telemetry
