Samson AirLine 77 Wind Instrument True Diversity UHF Wireless System (K2: 490.975 MHz)

Add to Wishlist

1,299.00 د.إ

Add to Wishlist
Key Features
  • HM40 Wind Microphone
  • CR77 UHF Diversity Receiver
  • 14 Hours with AAA Battery
  • XLR and 1/4″ Phone Outputs

Samson SW7AVSW4 Overview

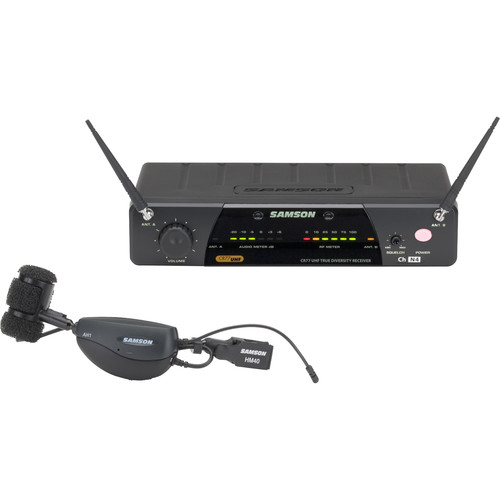

The Samson Airline 77 Wireless Wind Instrument Microphone System features the AH1 transmitter, HM40 wind instrument microphone, and CR77 true-diversity UHF receiver with 1/4″ phone and XLR output connections. The system provides horn players true wireless freedom during performances, without beltpacks or cables. The HM40 microphone attaches to the bell of horns and reproduces audio with pristine clarity and accuracy.

Up to 14 hours of continuous operation is achieved on a single AAA battery. The CR77 true-diversity receiver is the heart of the Airline 77 series and features PLL synthesized tuning, true diversity reception, dual antennas, XLR and 1/4″ phone output connectors, RF level LED meters, and a large output volume control dial.

True diversity UHF wireless wind instrument system with PLL frequency control
CR77 receiver features multi-segment audio level and RF level LED meters, Squelch and volume control, XLR and unbalanced 1/4-inch outputs with mic/line level output switch
AH1 headset transmitter features power/battery LED, power switch and mute switch
HM40 condenser horn microphone employs cardioid pickup pattern
Horn bell clamp included for easy attachment of entire AH1/HM40 assembly to horn
AC adapter and 1/4-inch to 1/4-inch cable included
SKU: SW7AVSW4-K2 Category: Tag:

Samson SW7AVSW4 Specs

Receiver
Receiving Frequency K2: 490.975 MHz
Oscillation Type PLL
De-Emphasis 50 ms
IF Frequency 10.7 MHz
Antennas 1/4 wavelength rod
In/Out DC inlet
XLR balanced output
1/4″ (6.3 mm) unbalanced output
LED Display Receiver A/B (green), power on (red), AF level (6 segment), RF level (6 segment)
Level Control Audio level volume, squelch level control
Operating Temperature 32 to 122°F (0 to 50°C)
Operating Voltage 12 VDC ±10%
Current Consumption 160 mA (all LED lights illuminated)
Sensitivity 18 dBm (@ THD 2%)
Squelch Sensitivity: 0 to 40 dBm (adjustable)
Selectivity ±150 kHz (AF Out ratio -60 dB)
Total Harmonic Distortion (THD) 1% max (@ AF 1 kHz, RF 46 dBu)
Signal to Noise Ratio 90 dB (with IHF-A filter)
Residual Noise 90 dBv (with IHF-A filter)
AF Frequency Response 50 Hz to 15 kHz (±3 dB overall)
Audio Output Level Unbalanced: 0 dBv
Balanced (slide switch selectable): -20 dBm (line), -40 dBm (mic)
Audio Output Impedance Unbalanced: 5 kOhms
Balanced: 600 Ohms
Transmitter
Operating Power 1.5 V typical, 1.05 V minimum, 2 V maximum
Current Consumption 60 mA typical
Battery Life 14 hours (AAA size battery)
RF Output Power 5 mW (-4 dB minimum, +3 dB maximum)
Frequency Stability -40 kHz minimum, 40 kHz maximum
Spurious 1 µW
Modulation 13 kHz minimum, 15 kHz typical, 17 kHz maximum, input 1 kHz-20 dBv
Input Impedance Microphone: 2 kOhms
Total Harmonic Distortion (THD)
Audio Frequency Response 50 Hz to 15 kHz (±3.5 dB)
Controls Power switch, mute switch volume
Input 2.5mm Stereo Jack
Indicators Power on (LED flash), low battery (LED on)
Dimensions Not specified by manufacturer
Weight Not specified by manufacturer
Packaging Info
Package Weight 2.495 lb
Box Dimensions (LxWxH) 12.1 x 10.8 x 3.8″
