Samson AirLine 88 Wireless Cardioid Fitness Headset Microphone System (K: 470 to 494 MHz)

Add to Wishlist

AED999.00

Add to Wishlist
Key Features
  • True Wireless for Fitness Instructors
  • Integrated AE50X Cardioid Mic Capsule
  • Sweat-Resistant AH8 Micro Transmitter
  • CR88 True-Diversity Receiver

Samson SWC88AH8 Overview

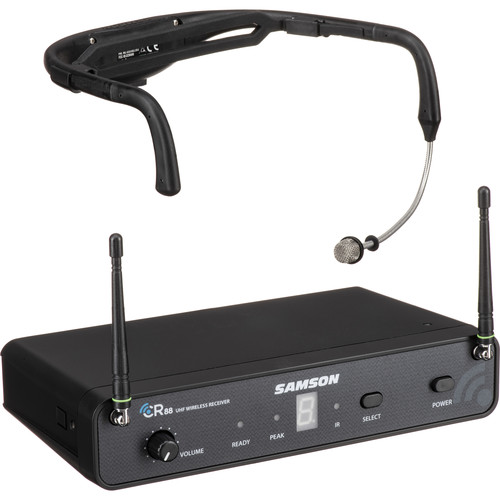

Ideal for fitness and aerobics instructors, the Samson AirLine 88 Wireless Cardioid Fitness Headset Microphone System offers quality sound, water and sweat resistance, dependable performance, and simple setup. Featuring a low-profile AH8 transmitter headset with a secure yet comfortable fit, the system delivers a true wireless experience with no bodypack and no cable, allowing complete freedom of movement during Pilates, high-intensity training, yoga, or spin classes.

The AirLine 88 includes a CR88 receiver, which can be placed on a tabletop or securely rackmounted in a portable flight case or a permanent installation using the included hardware. Two output connectors allow you to connect the receiver to any mixing board, PA, or sound system.

The AH8 transmitter provides up to 8 hours of continuous use on a built-in rechargeable battery. The 300′ operating range lets you move freely about the gym. For classes with more than one instructor or facilities with multiple studios, up to 8 mics can operate simultaneously in each frequency band.

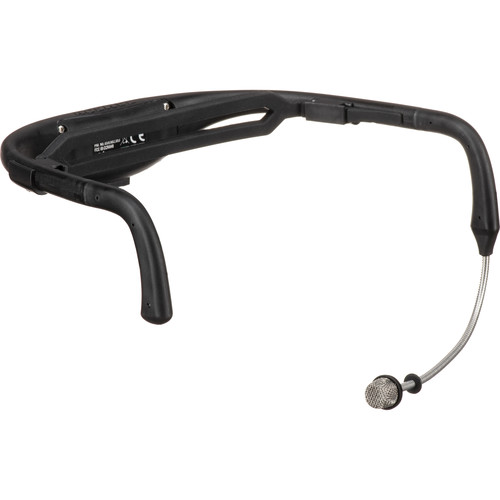

Water-/Sweat-Resistant Headset Mic Delivers Clear Sound

  • The headset is ideal for group-fitness instructors who need a durable, yet lightweight headset microphone that remains in place even during the most intense workouts, while providing a comfortable fit.
  • The AE50X miniature condenser microphone capsule delivers clear vocal reproduction. Its cardioid pickup pattern provides excellent isolation from stray and unwanted noise, like sound from ceiling speakers, for clear and intelligible speech.
  • The adjustable gooseneck allows you to position the mic for comfort and optimal voice capture.
  • The headset features water-/sweat-resistant components for protection against perspiration and the elements, including a marine-grade stainless steel gooseneck.
  • 4 foam windscreens and a stainless steel windscreen are included to help reduce plosive sounds.

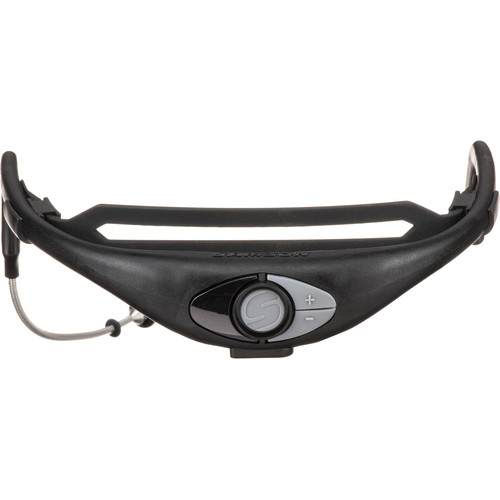

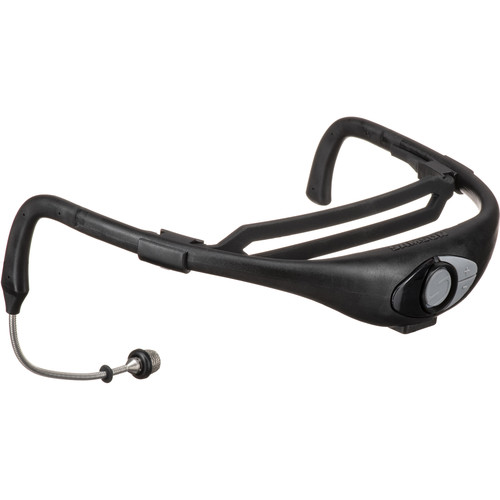

AH8 Micro Transmitter for Cable-Free Movement

  • The integrated design of the AH8 transmitter combines a micro transmitter and an adjustable gooseneck, completely eliminating beltpacks and cables from the setup.
  • The low-profile headset is designed to mold around the back of your head rather than over the top, keeping the transmitter out of the way and completely unobtrusive.
  • Easily accessible variable-gain control and one-touch mute as well as a battery life LED indicator make the transmitter simple to use.

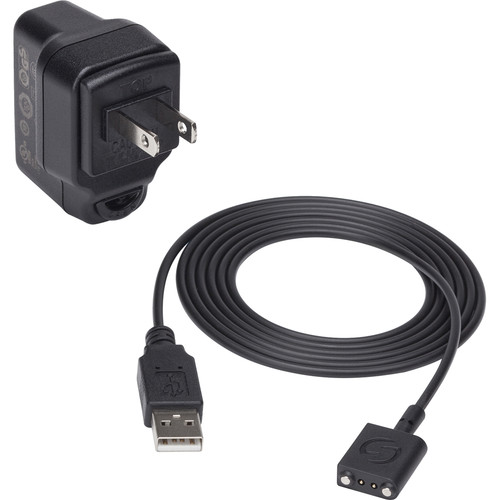

  • The built-in rechargeable lithium-ion battery provides 8 hours of use on a single charge.

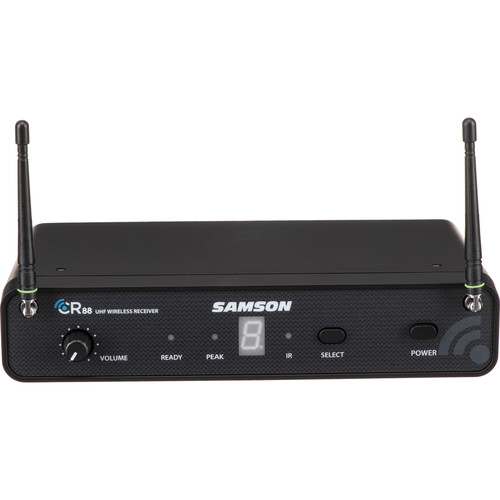

CR88 Rackmount Receiver Works with Any Sound System

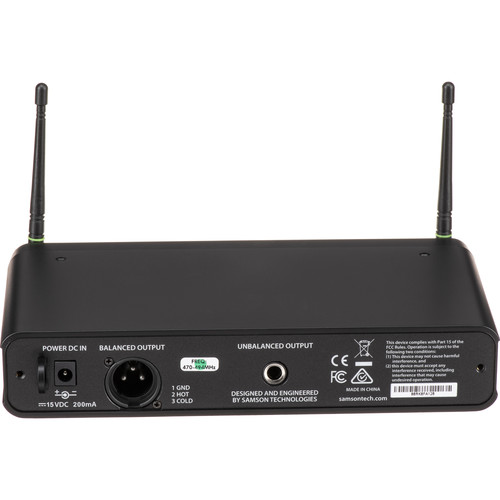

  • A balanced XLR output and an unbalanced 1/4″ output allow you to connect the receiver to any mixing board or PA system.
  • The half-rack receiver chassis can be mounted alone in a standard 19″ rack using the included mounting brackets and screws.
  • Quick to set up, the receiver offers 16 available frequencies to help you find a clean RF channel in case of interference.
  • The transmitter easily syncs to the receiver via infrared with a quick press on the Sync button.
  • An LED display and LED status indicators show the receiver’s current operating channel as well as system readiness and signal overload.
  • True RF diversity helps minimize dropouts.
  • Tone-key and auto-mute circuitry ensure that only the audio signal from the AH8 transmitter reaches the receiver, automatically muting the system when the transmitter is out of range to prevent unwanted noise.
SKU: SWC88AH8-K Category: Tag:

Samson SWC88AH8 Specs

System
Wireless Transmission Analog UHF
Number of RF Channels 16
Included Transmitters 1 x Headworn with Microphone
Diversity True Diversity
RF Frequency Band K:
470 to 494 MHz
RF Bandwidth 24 MHz
RF Channel Scanning Manual
Max Operating Range 300′ / 91.4 m (Line of Sight)
Max Systems per Setup 8
Dynamic Range >100 dB
Encryption None
Pilot Tone 32.768 kHz
Receiver
Form Factor Tabletop / Rackmount
Mounting Options Rackmount (with Included Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x 1/4 Wave External, Fixed (Front-Mount)
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Output
1 x 1/4″ TS Female Unbalanced Output
Audio Output Level XLR Output:
+9 dBu (Line Level)
1/4″ Output:
+14 dBu (Consumer Level)
Frequency Response 50 Hz to 15 kHz
Impedance XLR Output:
240 Ohms (Balanced)
1/4″ Output:
810 Ohms (Unbalanced)
Adjacent Channel Isolation >50 dB
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 15 VDC at 200 mA (Included)
Display & Indicators 1 x Multi-Segment LED (Channel)
1 x LED (Peak)
1 x LED (Sync)
Operating Temperature 14 to 140°F / -10 to 60°C
Dimensions 4.9 x 1.7 x 8.3″ / 125 x 44 x 210 mm
Weight 0.9 lb / 388 g
Transmitter 1
Transmitter
Form Factor Headworn with Microphone
RF Output Power 10 mW
Audio I/O None
Muting Mute Switch
Auto-Level Control No
Gain Range 20 dB
Sync Method IR
Power Requirements Battery
Battery Type 1 x Built-In Rechargeable (Included)
Internal Battery Capacity 500 mAh
Approx. Battery Life 8 Hours (Lithium Rechargeable)
Display & Indicators 1 x LED (Battery Status, Mute)
Dimensions 6.7 x 3.9 x 5.9″ / 170 x 100 x 150 mm
Weight 2.1 oz / 60 g
Microphone
Form Factor Headset
Sound Field Mono
Capsule Condenser
Polar Pattern Cardioid
Operating Voltage 3.6 V
Packaging Info
Package Weight 2.85 lb
Box Dimensions (LxWxH) 12.55 x 9.15 x 3.75″
