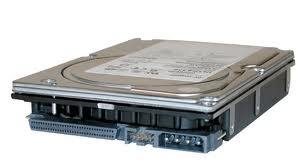

ST336607LW Seagate SCSI Hard Drives

Capacity: 36GB
Spindle Speed: 10,000RPM
Interface Type: SCSI 68pin / HD68 Female
Disk Size: 3.5″x1.0″ (LFF Hard Drive)
Sustained Throughput (MBps): 59.9
Average Seek Time (read/write ms): 4.7 / 5.3
Electrical Interface Speed: SCSI LVD U320 – 320MBps 16-bit
On-Board Cache: 8MB

The Cheetah 10K.6 is Seagate’s sixth-generation 10K RPM high performance, high capacity disc drive. With the fastest interfaces, the highest reliability and the most mature product design, the Cheetah 10K.6 enables the lowest ownership cost. In data intensive environments, increasing the capacity per disc drive lowers ownership costs by deploying fewer systems that use less cubic feet of space requiring less infrastructure such as cabinets, HBAs and less wattage of power.
spacer
Features

Low Ownership Cost
Large capacities enables greater storage per cubic foot meaning that fewer systems are deployed, less space is utilized and operating costs are lowered.

The Fastest 10K Cheetah ever!
25% improved Data Transfer Rate and nearly a 10% improvement in Seek Times over the prior generation Cheetah 73LP.

Several Millennia of Engineering & Manufacturing Experience
Seagate is a dependable, consistent partner offering the best technology manufactured in a highly automated factory assuring unmatched reliability.

Highest Reliability Most Mature Product Design
Data integrity assured

10,000 RPM spindle speed
Fast access to a variety of storage applications

The Most Advanced Interfaces
Ultra320 SCSI & 2Gbit/sec Fibre Channel interfaces allow the fast operation of more drives than ever at the highest speeds possible.

Distinctions

* The Highest Reliability Rating in the Disc Drive Industry
* Consistently High Investment in Research & Development Creates the Highest Technology Products
* Unmatched Design and Manufacturing Experience
* The Seagate Exclusive Design Service Center (DSC) Can Lower the Cost of Deploying Storage Systems
* The Lowest Cost of Ownership 10K Storage Solution
* The Cheetah Brand of Disc Drives are the Preferred Disc Drive for Storage Area Networks (SAN)

Alt. MPN: 08Y748 8Y748

 UNFORMATTED CAPACITY (GB) ________________47.5
       FORMATTED CAPACITY (GB) __________________36.7
       AVERAGE SECTORS PER TRACK ________________718 rounded down
       ACTUATOR TYPE ____________________________ROTARY VOICE COIL
       TRACKS ___________________________________99,710
       CYLINDERS ________________________________49,855 user
       HEADS ______PHYSICAL______________________2
       DISCS (2.5 in) ___________________________1
       MEDIA TYPE _______________________________THIN FILM/GMR
       RECORDING METHOD _________________________PRML
       INTERNAL TRANSFER RATE (mbits/sec)________475 to 841
       INTERNAL FORMATTED TRANSFER RATE (MB/sec)_59 to 105
       EXTERNAL TRANSFER RATE (mbyte/sec) _______40 Sync
            Low Voltage Differential(LVD) _______80/320 Sync
       SPINDLE SPEED (RPM) ______________________10,008
       AVERAGE LATENCY (mSEC) ___________________2.99
       BUFFER ___________________________________8MB
         Read Look-Ahead, Adaptive,
         Multi-Segmented Cache
       INTERFACE ________________________________Ultra-SCSI Wide
              Low Voltage Differential __________Ultra3-SCSI Wide
              ASA II, SCAM level 2 (1 default)
       BYTES PER TRACK __________________________368K avg
       SECTORS PER DRIVE ________________________71,687,372
       TPI (TRACKS PER INCH) ____________________64,000
       BPI (PEAK KBITS PER INCH) ________________570
       AVERAGE ACCESS (ms read/write)____________4.7/5.3
         Drive level without controller overhead
       SINGLE TRACK SEEK (ms read/write) ________0.35/0.55
       MAX FULL SEEK (ms read/write) ____________9.0/9.5
       MTBF (power-on hours) ____________________1,200,000
       SHOCK (G's, 11/2/.5 ms):
                operating (Read/Write) __________15
                abnormal ________________________40
                nonoperating ____________________75/225/120
       ACOUSTICS (Bels typical, sound power) ____3.6
       POWER DISSIPATION (watts/BTUs) Active ____/
                                      Idle ______7.2/24.6
       POWER REQUIREMENTS: +12V START-UP (amps) _1.03
                           +12V TYPICAL (amps) __0.26 idle
                           +5V START-UP (amps) __0.90
                           +5V TYPICAL (amps) ___0.81 idle
                           IDLE (watts) _________
       LANDING ZONE (cyl) _______________________AUTO PARK
       IBM AT DRIVE TYPE ________________________0 or NONE

       Physical:
                        Height (inches/mm):      1.0/25.4
                        Width  (inches/mm):     4.00/101.6
                        Depth  (inches/mm):     5.75/146
                        Weight    (lbs/kg):     1.61/0.731

Already low-level formatted at the factory with x spare sectors at
the end of each x cylinder region.

ZBR = Zone Bit Recording = Variable sectors per track
