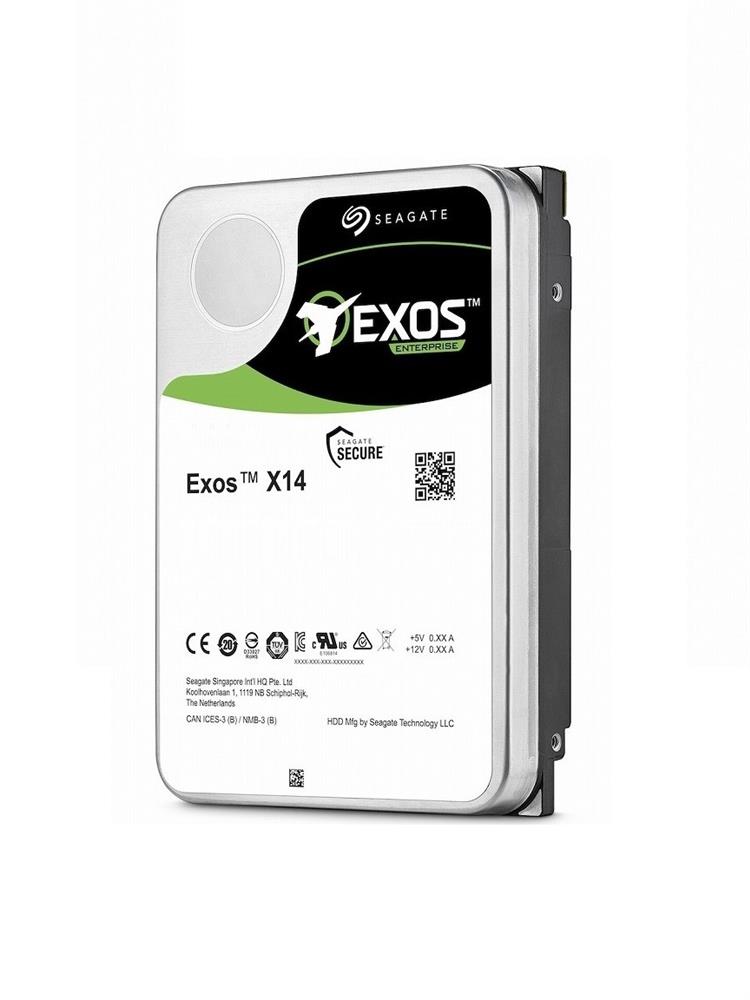

Seagate Exos X14 ST12000NM0008 12TB 3.5″ LFF 6Gbps 7.2K Enterprise SATA Hard Disk Drives

Add to Wishlist
Exos X12 Series



  • Stores up to 10 PB in a single 42U rack with helium technology
  • Advanced Write Caching provides a 20% performance boost*
  • Up to 21% improvement in IOPS/watt
  • Customised with PowerChoiceā„¢ and RAID RebuildĀ®
  • 550 TB/yr ā€” 10Ɨ the workload rating of desktop drives
  • Seagate SecureĀ® encryption technology

1,299.00 د.إ

Add to Wishlist

Seagate Exos X14 ST12000NM0008 12TB 3.5″ LFF 6Gbps 7.2K RPM FastFormat 512e Enterprise SATA Hard Disk Drives – Brand New Seagate Exos X14 ST12000NM0008 12TB 3.5″ LFF 6Gbps 7.2K RPM FastFormat 512e Enterprise SATA Hard Disk Drives – Brand New

EXOS X14 and Exos X14z
Seagate manufactures hard drives that specifically address the needs of the hyperscale storage market. As the flagship of the SeagateĀ® X class, the Exosā„¢ X14 and Exos X14z enterprise hard drives are the highest-capacity hard drives in the fleet.

Best-Fit Applications

  • Hyperscale applications/cloud data centers
  • Massive scale-out data centers
  • Big data applications
  • High-capacity density RAID storage
  • Mainstream enterprise external storage arrays
  • Distributed file systems, including Hadoop and Ceph Enterprise backup and restoreā€” D2D, virtual tape
  • Centralized surveillance

ā€¢ All 4Kn/512e drives ship in 512-byte emulation mode but can be
easily reformatted to 4Kn (and vice versa) with the FastFormat
feature.
ā€¢ FastFormat only works with 512e and 4Kn. You canā€™t use FastFormat with 512-byte native drives.
ā€¢ FastFormat reformats the drive, so all data on the drive will be lost once you issue the command. Donā€™t forget to back up your data before issuing FastFormat!
ā€¢ T10 fast format conversion between 4K and 512E configurations is possible only if sector sizes are exact multiples of 8.
ā€¢ The new sector size will take effect only after a fast format.

MPN: 2H3101-002

SKU: ST12000NM0008 Category: Tags: ,
Weight 0.690 kg
Exos Enterprise X14
Standard Model FastFormat (512e/4Kn) ST12000NM0008
Interface 6Gb/s SATA III
Capacity 142TB / 12000GB
Features
Helium Sealed-Drive Design Yes
Protection Information (T10 DIF) —
SuperParity Yes
Low Halogen Yes
PowerChoice Technology Yes
PowerBalance Technology Yes
Hot-Plug Support Yes
Cache, Multisegmented (MB) 256
Organic Solderability Preservative Yes
RSA 2048 Firmware Verification Yes
Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours) 2,500,000
Reliability Rating @ Full 24Ɨ7 Operation (AFR) 0.35%
Nonrecoverable Read Errors per Bits Read 1 Sector per 1015
Power-On Hours per Year (24Ɨ7) 8760
512e Sector Size (Bytes per Sector)
  • 512
4Kn Sector Size (Bytes per Sector)
  • 4096
Performance
Spindle Speed (RPM) 7200
Interface Access Speed (Gb/s)
  • 6.0
  • 3.0
Max Sustainable Transfer Rate
  • 261
  • 249
Random Rewad/Write 4K QD03 WCD (IOPS) 170/418
Average Latency (ms) 4.16
Interface Ports Single
Rotational Vibration @ 20-1500Hz (rad/sec) 12.5
Power Consumption
Idle A (W) Average
  • 5.00W
Max Operating, Random Read/Write 4K/16Q (W)
  • 10.0
  • 6.0
Power Supply Requirements +12 V and +5 V
Evrironmental/Temperature
Temperature, Operating (Ā°C) 5Ā°C – 60Ā°C
Vibration, Nonoperating: 2 to 500Hz (Grms) 2.27
Shock, Operating Read/Write (Gs) 70/40Gs
Shock, Nonoperating, 1ms/2ms (Gs) 250
Physical
Height (in/mm, max) 1.028in/26.1mm
Weight (in/mm, max) 4.010in/101.85mm
Depth (in/mm, max) 5.787in/147.0mm
Weigt (g/lb) 690g/1.521lb
