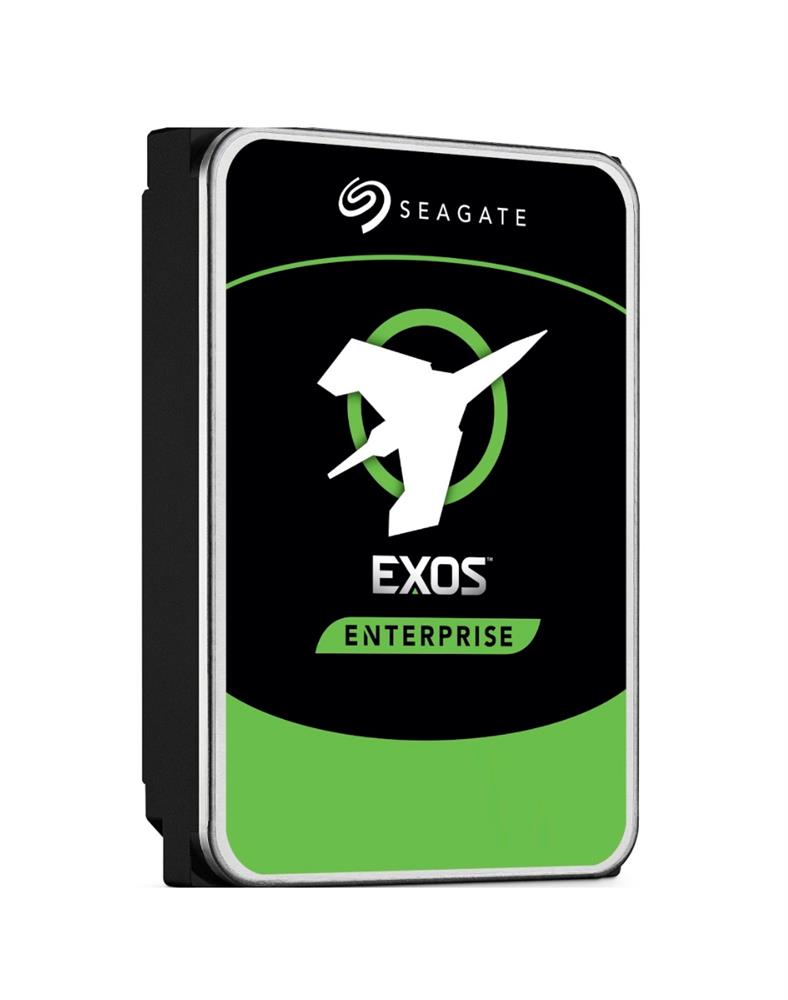

Seagate Exos X16 ST14000NM003G 14TB SED SATA Hard Drive


3,199.00 د.إ

Seagate Exos X16 ST14000NM003G 14TB 3.5-Inch LFF 6Gbps 7.2K RPM Enterprise 512e Fast Format SED SATA Hard Drive – Brand New

Seagate Exos X16 ST14000NM003G 14TB / 14000GB 3.5″ LFF / Large Form Factor 6.0 Gb/s 7200 RPM Enterprise 512e / 512 Emulation Fast Format SED / Self-Encrypted SATA / Serial ATA HDD / Hard Drive – Brand New

Scalable. Responsive. Innovative.
Exos X16

Seagate manufactures hard drives that specifically address the needs of the hyperscale storage market. As the flagship of the Seagate X class, the Exos X16 enterprise hard drives are the highest-capacity hard drives in the fleet.

Maximum Storage Capacity for Highest Rack Space Efficiency

Industry’s first 16TB driveĀ for 33% more petabytes per rack.

Highest 16TB hard drive performanceĀ with enhanced caching, making it perfect for cloud data center and massive scale-out data center applications

Hyperscale SATA modelĀ tuned for large data transfers and low latency

PowerBalanceĀ feature optimizes Watts/TB

Helium sealed-drive designĀ delivers lower total cost of ownership through lower power and weight.

Next-generation helium side-sealing weld technologyĀ for added handling robustness and leak protection.

Digital environmental sensorsĀ to monitor internal drive conditions for optimal operation and performance

Data protection and security:Ā Seagate Secure features for safe, affordable, fast and easy drive retirement

Proven enterprise-class reliability backed byĀ 5-year limited warranty and 2.5M-hr MTBF rating

Best-Fit Applications

  • Hyperscale applications/cloud data centers
  • Massive scale-out data centers
  • Big data applications
  • High-capacity density RAID storage
  • Mainstream enterprise external storage arrays
  • Distributed file systems, including Hadoop and Ceph
  • Enterprise backup and restore— D2D, virtual tape
  • Centralized surveillance
SKU: ST14000NM003G Category: Tags: ,
Weight 0.670 kg
Exos Enterprise X16
SED Model FastFormat (512e/4Kn) ST14000NM003G
Interface 6Gb/s SATA
Capacity 14TB / 14000GB
Features
Helium Sealed-Drive Design Yes
Protection Information (T10 DIF)
SuperParity Yes
Low Halogen Yes
PowerChoice Technology Yes
PowerBalance Technology Yes
Hot-Plug Support Yes
Cache, Multisegmented (MB) 256
Organic Solderability Preservative Yes
RSA 2048 Firmware Verification Yes
Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours) 2,500,000
Reliability Rating @ Full 24Ɨ7 Operation (AFR) 0.35%
Nonrecoverable Read Errors per Bits Read 1 Sector per 1015
Power-On Hours per Year (24Ɨ7) 8760
512e Sector Size (Bytes per Sector) 512
4Kn Sector Size (Bytes per Sector) 4096
Performance
Spindle Speed (RPM) 7200
Interface Access Speed (Gb/s)
  • 6.0
  • 3.0
Max Sustainable Transfer Rate
  • 261
  • 249
Random Rewad/Write 4K QD03 WCD (IOPS) 170/440
Average Latency (ms) 4.16
Interface Ports Single
Rotational Vibration @ 20-1500Hz (rad/sec) 12.5
Power Consumption
Idle A (W) Average 5.00W
Max Operating, Random Read/Write 4K/16Q (W)
  • 10.0
  • 6.3
Power Supply Requirements +12 V and +5 V
Evrironmental/Temperature
Temperature, Operating (°C) 5°C – 60°C
Vibration, Nonoperating: 2 to 500Hz (Grms) 2.27
Shock, Operating Read/Write (Gs) 50
Shock, Nonoperating, 1ms/2ms (Gs) 200
Physical
Height (in/mm, max) 1.028in/26.1mm
Weight (in/mm, max) 4.010in/101.85mm
Depth (in/mm, max) 5.787in/147.0mm
Weigt (g/lb) 670g/1.477lb
