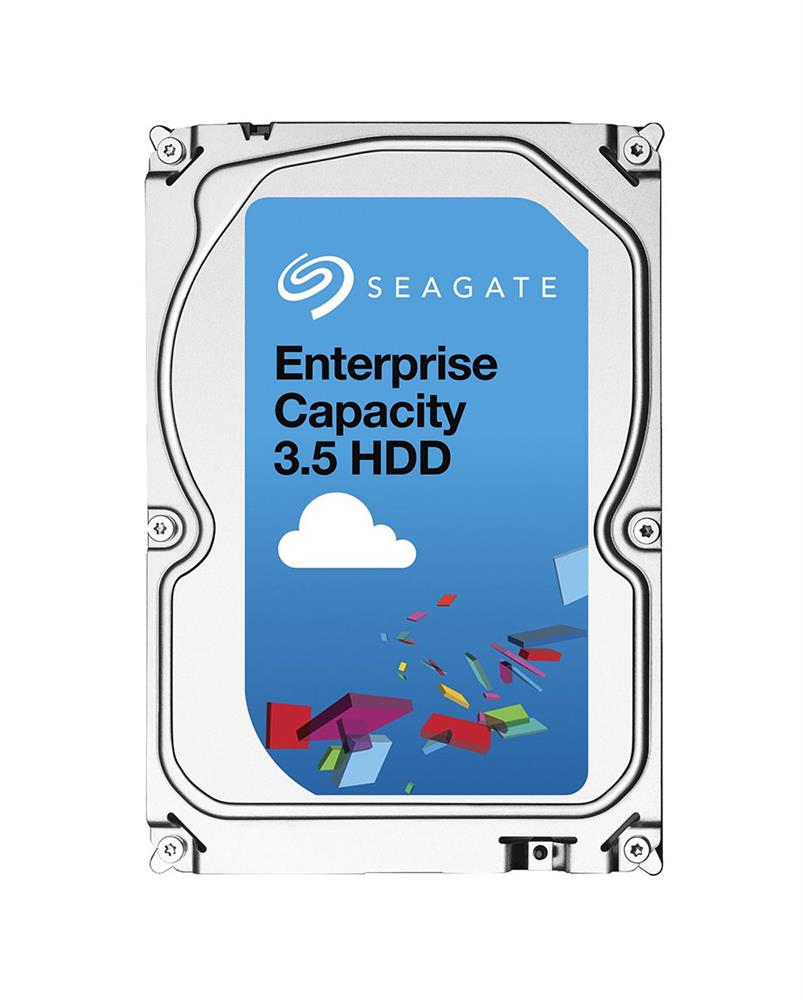

Seagate Helium ST10000NM0156 10TB Enterprise SED SATA Hard Drive

Add to Wishlist

1,799.00 د.إ

Add to Wishlist

Seagate Helium ST10000NM0156 10TB 3.5″ LFF 6Gbps 7.2K RPM Enterprise 512e SED SATA Hard Drive – Brand New

Seagate Helium ST10000NM0156 10TB / 10000GB 3.5″ LFF / Large Form Factor 6.0 Gb/s 7200 RPM Enterprise 512e / 512 Emulation SED / Self-Encrypting SATA / Serial ATA HDD / Hard Drive – Brand New

Enterprise Capacity 3.5 HDD (Helium)

Maximum Storage Capacity for Highest Rack Space Efficiency

  • 10TB per drive 1 for 25% more petabytes per rack
  • Industry’s lowest power and weight for optimum data center TCO
  • Highest 10TB HDD performance with enhanced caching, making it perfect for OLTP and HPC application
  • Hyperscale SATA model tuned for large data transfers
  • PowerBalance™ feature optimizes IOPS/Watt
  • Advanced Write Caching feature for 20% boost in random write performance
  • Forged, wrought-aluminum base and a helium sealed-drive design with no porosity and uniform density
  • Superior material and weld-width design for a more robust, hermetically sealed-drive enclosure that protects from helium leaks
  • Digital environmental sensors for measuring internal humidity, pressure and temperature, helping to ensure high reliability, performance and quality
  • Latest hermetic interconnect technology supporting higher data rate heads and higher pin counts for extreme thermal conditions
  • Proven enterprise-class reliability backed by 2.5M-hr MTBF

Best-Fit Applications

  • Hyperscale applications/cloud data centers
  • Massive scale-out data centers
  • OLTP and HPC applications
  • High-capacity density RAID storage
  • Mainstream enterprise external storage arrays
  • Distributed file systems, including Hadoop and Ceph
  • Enterprise backup and restore—D2D, virtual tape
  • Centralized surveillance
SKU: ST10000NM0156 Category: Tags: ,
Weight 0.650 kg
Enterprise Capacity 3.5 HDD (Helium)
SED Model (512e) ST10000NM0156
Specification
Capacity 10TB / 10,000GB
Interface SATA 6Gb/s Standard
Features
Helium Sealed-Drive Design With Wide Weld Yes
Digital Environmental Sensors Yes
Protection Information (T10 DIF) —
SuperParity Yes
PowerChoice™/PowerBalance™ Technology Yes
Low Halogen/Hot-Plug Support Yes
Cache, Multisegmented (MB) 256
Organic Solderability Preservative Yes
Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours) 2.5 Million
Reliability Rating@ Full 24×7 Operation (AFR) 0.35%
Nonrecoverable Read Errors per Bits Read 1 Sector per 1015
Power-On Hours per Year (24×7) 8760
512e Sector Size (Bytes per Sector) 512
4Kn Sector Size (Bytes per Sector) 4096
Performance
Spindle Speed (RPM) 7200
Interface Access Speed (Gb/s) 6.0, 3.0, 1.5
Max. Sustained Transfer Rate OD (MB/s, MiB/s) 256MB/s
Random Read/Write 4K QD16 WCD (IOPS) 170
370
Average Latency (ms) 4.16
Interface Ports Single
Rotational Vibration@ 1500Hz (rad/s) 12.5
Power Consumption
Idle A (W) Average 4.5W
Max Operating Power, Random Write (WCD) 4K/4Q RR50% / RW50% 8.0
Max Operating Power, Random Read 4K/16Q (W) 8.4
Power Supply Requirements +12v AND &PLUS5 V
Environmental
Temperature, Operating (°C) 5°C – 60°C
Vibration, Nonoperating: 10Hz to 500Hz (Grms) 2.27
Shock, Operating 2ms (Read/Write) (Gs) 70/40Gs
Shock, Nonoperating, 1ms/2ms (Gs) 250Gs
Physical
Height (mm/in, max) 26.11mm/1.028in
Width (mm/in, max) 101.85mm/4.010in
Depth (mm/in, max) 147.0mm/5.787in
Weight (g/lb) 650g/1.433lb
