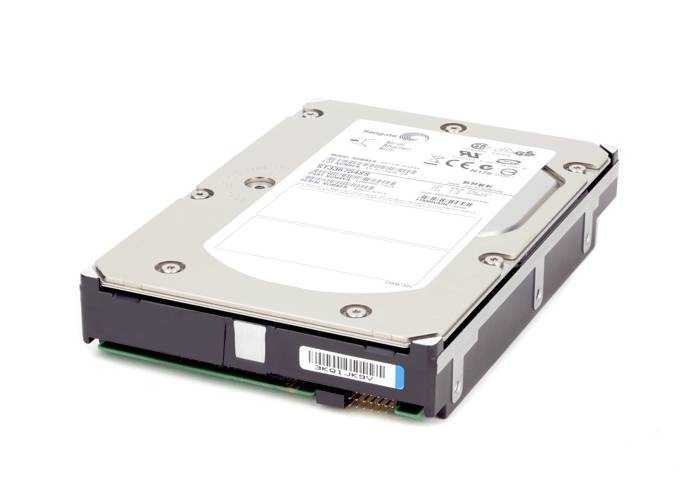

Seagate ST10000NM0176 10TB SED-FIPS SATA Hard Drive

Add to Wishlist

2,299.00 د.إ

Add to Wishlist

Seagate Helium ST10000NM0176 10TB 3.5-Inch LFF 6Gbps 7.2K RPM Enterprise 512e SED-FIPS SATA Hard Drive – Brand New

Seagate Helium ST10000NM0176 10TB / 10000 3.5″ LFF / Large Form Factor 6.0 Gb/s 7200 RPM Enterprise 512e / 512 Emulation SED / Self Encrypting FIPS / Federal Information Processing Standards SATA / Serial ATA HDD / Hard Drive – Brand New

Maximum Storage Capacity for Highest Rack Space Efficiency

  • 10TB per drive 1 for 25% more petabytes per rack
  • Industry’s lowest power and weight for optimum data center TCO
  • Forged, wrought-aluminum base and a helium sealed-drive design with uniform density and no porosity
  • Superior material and weld-width design for a more robust, hermetically sealed-drive enclosure that protects from helium leaks
  • Digital environmental sensors for measuring internal humidity, pressure and temperature, helping to ensure high reliability, performance and quality
  • Latest hermetic interconnect technology supporting higher data rate heads and higher pin counts for extreme thermal conditions
  • Proven enterprise-class reliability backed by 2.5M-hr MTBF

Best-Fit Applications

  • Hyperscale applications/cloud data centers
  • Massive scale-out data centers
  • High-capacity density RAID storage
  • Mainstream enterprise external storage arrays
  • Distributed file systems, including Hadoop and Ceph
  • Enterprise backup and restoreā€”D2D, virtual tape
  • Centralized surveillance
SKU: ST10000NM0176 Category: Tags: ,
Weight 0.650 kg
Specifications
Capacity 10TB/10,000GB
SED-FIPS/Common Criteria Model (512e) ST10000NM0176
Features
Helium Sealed-Drive Design With Wide Weld Yes
Digital Environmental Sensors Yes
Protection Information (T10 DIF) —
SuperParity Yes
PowerChoiceā„¢ Power/Performance Technology Yes
Low Halogen/Hot-Plug Support Yes
Cache, Multisegmented (MB) 256
Organic Solderability Preservative Yes
Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours) 2.5 Million
Reliabilility Rating @ Full 24×7 Operation (AFR) 0.35%
Non-recoverable Read Errors per Bits Read, Max 1 sector per 10E15
Power-On Hours 8760
512e Sector Size (Bytes per Sector) 512
4Kn Sector Size (Bytes per Sector) 4096
Performance
Spin Speed(RPM) 7200RPM
Interface Access Speed (Gb/s) 6.0, 3.0, 1.5
Max. Sustained Transfer Rate OD (MB/s) 254MB/s
Random Read/Write 4K QD16 WCD (IOPS) 170, 370
Average Latency (ms) 4.16
Interface Ports Single
Rotational Vibration @ 1500Hz (rad/s) 12.5
Power Consumption
Idle A (W) Averge 4.5W
Max Operating Power, Random Write (WCD) 4K/4Q RR50% / RW50% 8.0
Max Operating Power, Random Read 4K/16Q (W) 8.4
Power Supply Requirements +12 V and +5 V
Environmental
Temperature, Operating (Ā°C) 5Ā°C ā€“ 60Ā°C
Vibration, Nonoperating: 10Hz to 500Hz (Grms) 2.27
Shock, Operating 2ms (Read/Write) (Gs) 70/40Gs
Shock, Nonoperating, 1ms/2ms (Gs) 250
Physical
Height (mm/in, max) 26.11mm/1.028in
Width (mm/in, max) 101.85mm/4.010in
Depth (mm/in, max) 147.0mm/5.787in
Weight (g/lb) 650g/1.433lb
