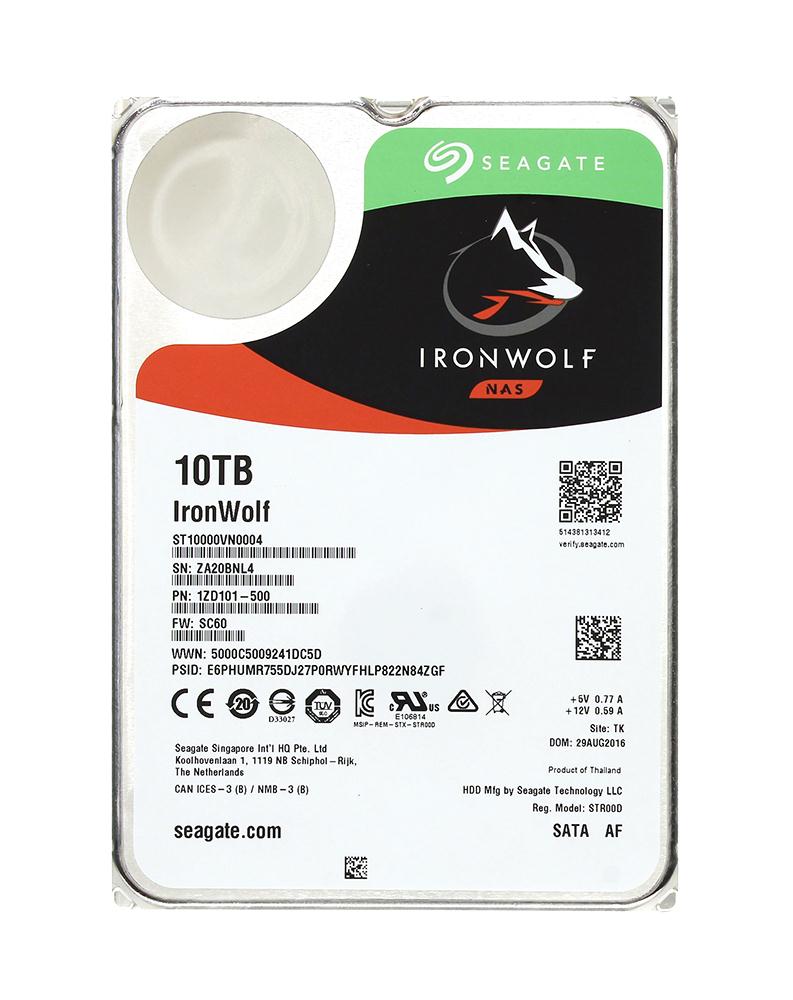

Seagate IronWolf NAS ST10000VN0004 10TB / 10,000GB 3.5-in 6.0 Gb/s 7200 RPM 512 Emulation SATA / Serial ATA Hard Disk Drive – Factory ReCertificated
IRONWOLF NAS
The Power of Agility for Home, SOHO and SMB NAS enclosures
IronWolf is designed for everything NAS. Get used to tough, ready and scalable 24×7 performance that can handle multiple-drive environments with a wide range of capacities.
KEY ADVANTAGES
Optimized for NAS with AgileArray – AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with the most advanced power management possible.
High performance means no lag times – or downtime for users during high traffic time for the NAS. Seagate leads the competition with the highest performance in NAS-class drives.
Range of capacities up to 10TB.– More capacity options mean more choices that will fit within the budget. Seagate provides a scalable solution for any NAS use-case scenario.
Get ahead with more cache. – IronWolf provides high-cache options allowing your NAS to serve data faster.
Do more with multi-user technology. – Enables user workload rate of 180TB/year. Multiple users can confidently upload and download data to the NAS server, knowing it can handle the workload, whether you’re a creative professional or small business.
Designed for always on, always accessible 24×7 performance. – Access your data on your NAS any time, remotely or on site.
1M hours MTBF – represents an improved total cost of ownership (TCO) with reduced maintenance costs.
| Weight | 0.650 kg |
|---|
| IronWolf NAS Seagate | |
|---|---|
| Model Numbers | ST10000VN0004 |
| Interface | SATA 6Gb/s |
| Features and Performance | |
| Formatted Capacity | 10TB / 10000GB |
| Sector Size | 512e |
| Number of Drive Bays Supported | 1 to 8 |
| Multi-User Technology (TB/yr) | 180 |
| Rotational Vibration (RV) Sensors | Yes |
| Dual-Plane Balance | Yes |
| Error Recovery Control | Yes |
| Max Sustained Data Transfer Rate OD (MB/s) | 210 |
| Spindle Speed (RPM) | 7200 |
| Cache (MB) | 256 |
| Reliability/Data Integity | |
| Load/Unload Cycles | 600,000 |
| Nonrecoverable Read Errors per Bits Read, Max | 1 per 10E15 |
| Power-On hours (per year) | 8760 |
| Workload Rate Limit (WRL) (TB/year) | 180 |
| Mean Time Between Failures (MTBF) (hours) | 1M |
| Power Management | |
| Startup Current, Typical (12V, A) | 1.8 |
| Average Operating Power (W) | 6.8 |
| Idle Average (W) | 4.42 |
| Standby Mode/Sleep Mode, Typical (W) | 0.8/0.8 |
| Voltage Tolerance (5V) | ±5% |
| Voltage Tolerance (12V) | ±105% |
| Environmental | |
| Temperature (°C) | |
| Operating (ambient, min) | 5 |
| Operating (drive case, max) | 70 |
| Nonoperating (ambient, min) | -40 |
| Non Operating (ambient, max) | 70 |
| Halogen Free | Yes |
| Shock, Operating/Nonoperating: 2ms (max, Gs) | 70/250 |
| Acoustics | |
| Idle (typical, bels) | 2.8 |
| Operating (typical, bels) | 3.2 |
| Physical | |
| Height (mm/in, max) | 26.11/1.028 |
| Width (mm/in, max) | 101.85/4.01 |
| Depth (mm/in, max) | 146.99/5.787 |
| Weight (g/lb, typical) | 650/1.433 |
