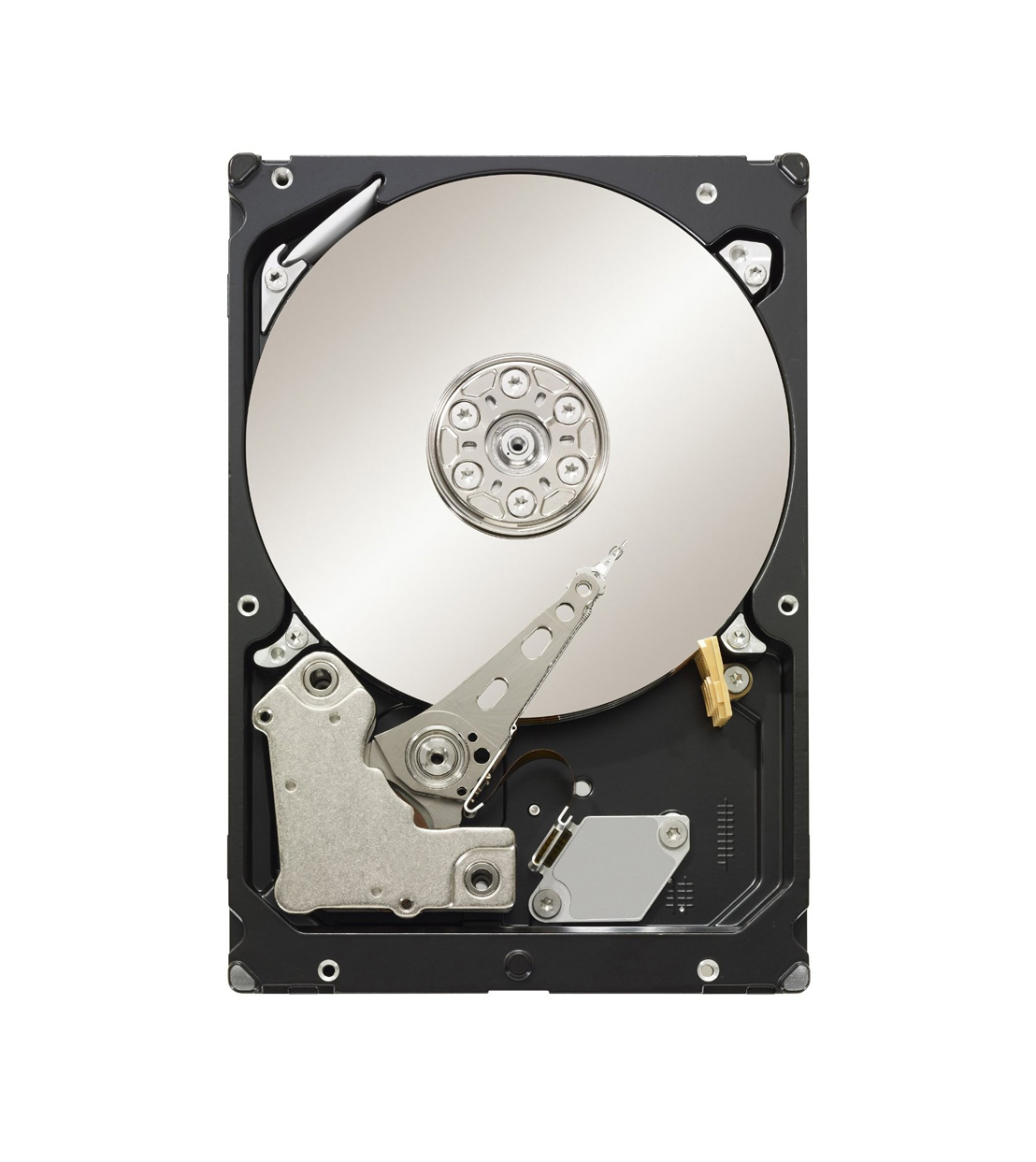

Seagate ST3000VX002 3000GB SATA Hard Drive


AED599.00

Seagate ST3000VX002 3TB / 3000GB 3.5in 6.0Gbps 5,900 RPM Surveillance SATA Hard Drive – Brand New

Alt MPN: 1F416R-500

Surveillance HDD

Helps Improve Costs and Data Integrity

  • The industry’s first surveillance-optimized hard drive platform with capacities up to 6TB improves video streaming, drive performance and data integrity in surveillance applications.
  • Seventh-generation SeagateĀ® surveillance drive is tuned for high write-cycle workloads typical in video surveillance storage systems.
  • The Surveillance HDD supports higher-resolution cameras and up to 16 drives per system, with up to 32 cameras per drive.
  • Reliably performs in multi-drive systems with RAID support from RV sensors.
  • 24Ɨ7 operational capabilities while maintaining high MTBF of 1M hours.
  • Options for a current-limited startup of less than 2A supports the use of embedded system power supplies.
  • Low power consumption options support always-on surveillance systems.
  • Never miss a frame with quick time-to-ready.
  • Idle3 spin control features enable power-on in standby mode or drive spin-down to conserve power and improve reliability during archival periods.

Best-Fit Applications

  • NVR
  • Embedded SDVR
  • Hybrid SDVR
  • Surveillance DVR
SKU: ST3000VX002 Category: Tags: ,
Weight 0.610 kg
SPECIFICATIONS
Model number ST3000VX002
Capacity 3TB/3000GB
Interface SATA 6Gb/s
Cache, MB 64
Bytes per Sector 4096
SURVEILLANCE PERFORMANCE
R/V (Rotational Vibration) Sensor Yes
Drive Bays Supported 1 to 16
Cameras Supported up to 32
Max Sustained Data Rate, OD Read (MB/s) 180
VOLTAGE
Voltage Tolerance, Including Noise (5V) ±5%
Voltage Tolerance, Including Noise (12V) ±10%
POWER MANAGEMENT
Startup Current 12V (A) 1.8
Operating Mode, Typical (W) 5.6
Idle Average (W) 4.0
Standby Mode (W) 0.5
Sleep Mode (W) 0.5
ENVIRONMENTAL
Temperature
Operating (ambinet, min °C)
Operating (drive case, max °C)
Non-Operating (ambient, min °C)
Non-Operating (ambient, max °C)
0
70
-40
70
RELIABILITY
Load/Unload Cycles 300,000
Non-Recoverable Read Errors per Bits Read, Max 1 per 10e14
Mean Time Between Failures (MTBF, hours) 1,000,000
Power-On Hours 8760
PHYSICAL
Height (mm/in) 26.11/1.028
Width (mm/in) 101.6/4.0
Depth (mm/in) 146.99/5.787
Weight (g/lb) 610/1.345
