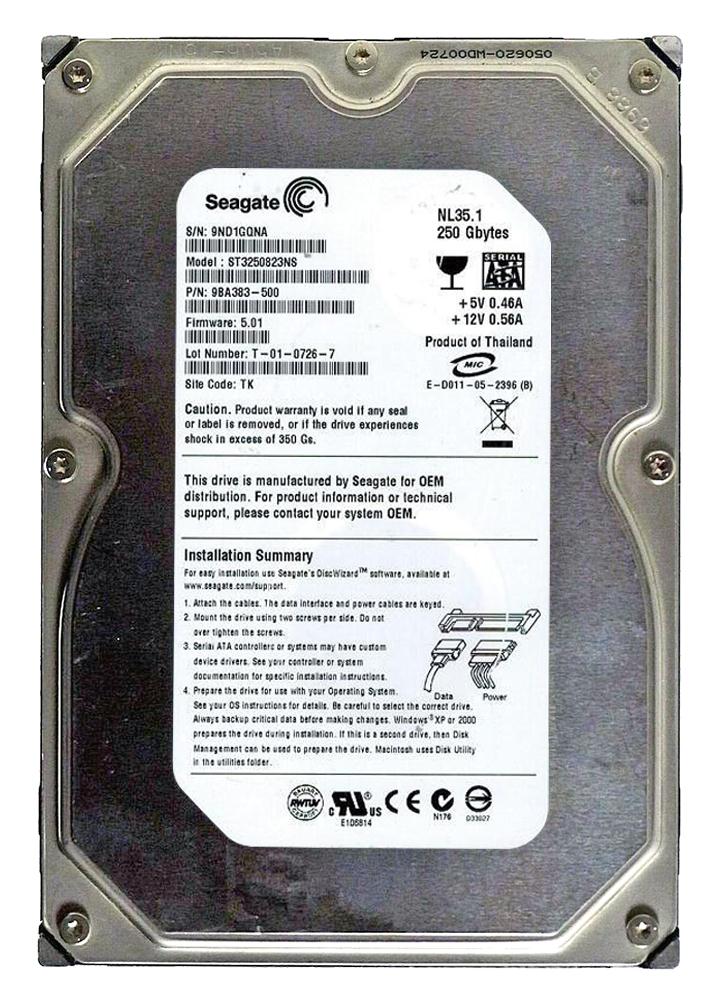

Seagate ST3250823NS 250GB 3.5in 3Gbps 7.2K RPM HS NL NL35 Series SATA HDD – Refurbuished
Seagate ST3250823NS 250GB 3.5″ 3Gbps 7.2K RPM HS NL NL35 Series SATA HDD – Refurbuished
This drive provides the following key features:
- 7,200 RPM spindle speed.
- 8 Mbyte buffer.
- High instantaneous (burst) data-transfer rates (up to 150 Mbytes per second).
- Tunneling Giant Magneto resistive (TGMR) recording heads and EPRML technology, provide the drives with increased areal density.
- State-of-the-art cache and on-the-fly error-correction algorithms.
- Native Command Queueing with command ordering to increase performance in demanding applications.
- Full-track multiple-sector transfer capability without local processor intervention.
- Quiet operation.
- 300 Gs nonoperating shock.
- SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
- Support for S.M.A.R.T. drive monitoring and reporting.
- Supports latching SATA cables and connectors.
- Supports S.M.A.R.T. Command Transport (SCT) to provide enterprise-like features in an industry-accepted transport mechanism.
- Supports the Write Same command to allow large writes without host interface overhead.
- Supports Error Recovery Control to allow the host to put a soft time limit on read and write commands.
- One-Step Microcode Download which allows enterprise clients to download new drive code with a single download command using the host download utility.
- Workload management features to manage drive temperature and activity. This optimizes drive reliability in nearline environments with no user intervention required.
| Weight | 0.635 kg |
|---|
| Drive Model | ST3250823NS |
|---|---|
| DRIVE SPECIFICATION | |
| Formatted Gbytes (512 bytes/sector) | 250 |
| Guaranteed sectors | 488,397,168 |
| Bytes per sector | 512 |
| Default sectors per track | 63 |
| Default read/write heads | 16 |
| Default cylinders | 16,383 |
| Recording density in BPI (bits/inch max) | 763,000 |
| Track density TPI (Track/inch avg) | 120,000 |
| Areal density (Mbits/inch avg) | 91,560 |
| Spindle speed (RPM) | 7,200 |
| Internal data transfer rate (Mbytes/sec max) | 95 |
| Sustained transfer rate OD (Mbytes/sec) | 65 |
| I/O data transfer rate (Mbytes/sec max) | 150 |
| ATA data-transfer modes supported | PIO modes 0ā4, Multiword DMA modes 0ā2, Ultra DMA modes 0ā6 |
| SATA data-transfer modes supported | 1.5 Gbits/sec |
| Cache buffer | 8 Mbytes |
| Height (mm/in max) | 26.11/1.028 |
| Width (mm/in max) | 101.85/4.010 |
| Length (mm/in max) | 146.99/5.787 |
| Weight (g/ib max) | 635/1.39 |
| Average latency (msec) | 4.16 |
| Power-on to ready (typical) | 10 sec |
| Standby to ready (typical) | 10 sec |
| Track-to-track seek time Imsec typical) | 0.8(read), 1.0(write) |
| Average seek Read/Write (msec typical) | 8.0/9.0 |
| Startup current (typical) 12V (peak) | 2.8 amps |
| Seek power (typical) watts | 9.9 |
| Operating power (typical) watts | 9.2 |
| Idle mode (typical) watts | 7.71 |
| Standby mode (typical) watts | 1.2 |
| Sleep mode | 1.2 |
| Voltage tolerance (including noise) | 5V Ā± 5%, 12V Ā± 10% |
| Ambient Temperature (operating) | 0Ā° to 60Ā°C |
| Ambient Temperature (non-operating) | ā40Ā° to 70Ā°C |
| Temperature gradient(Ā°C per hour max operating) | 20Ā°C |
| Temperature gradient(Ā°C per hour max non-operating) | 30Ā°C |
| Relative humidity (operating) | 5% to 90% |
| Relative humidity (non-operating) | 5% to 95% |
| Relative humidity gradient | 30% per hour max |
| Wet bulb temperature(Ā°C max operating) | 37.7 |
| Wet bulb temperature(Ā°C max non-operating) | 40.0 |
| Altitude, operating | -60.96m to 3,048m (-200ft to 10,000+ft) |
| Altitude, non-operating (meters below mean sea level, max) | -60.96m to 12,192m (-200ft to 40,000+ft) |
| Shock, operating (max at 2 msec) | 63 Gs |
| Shock, non-operating (max at 2 msec) | 300 Gs |
| Vibration, operating | 5ā22 Hz: Limited displacement, 23ā350 Hz: 0.5 G acceleration |
| Vibration, non-operating | 5ā22 Hz: Limited displacement, 23ā350 Hz: 5 Gs acceleration |
| Idle Drive acoustics, sound power (bels) | 2.8 (typical) 3.4 (max) |
| Performance seek Drive acoustics, sound power (bels) | 3.7 (typical) 3.9 (max) |
| Non-recoverable read errors | 1 per 10e14 bits read |
| MTBF (Mean Time Before Failure) | 1,000,000 hours |
| Cantact start-stop cycles (25Ā°C, 50% relative humidity) | 50,000 |
| Supports Hotplug operation per SATA II specification | Yes |
| Shock, operating (max at 2 msec) | 63 Gs |
