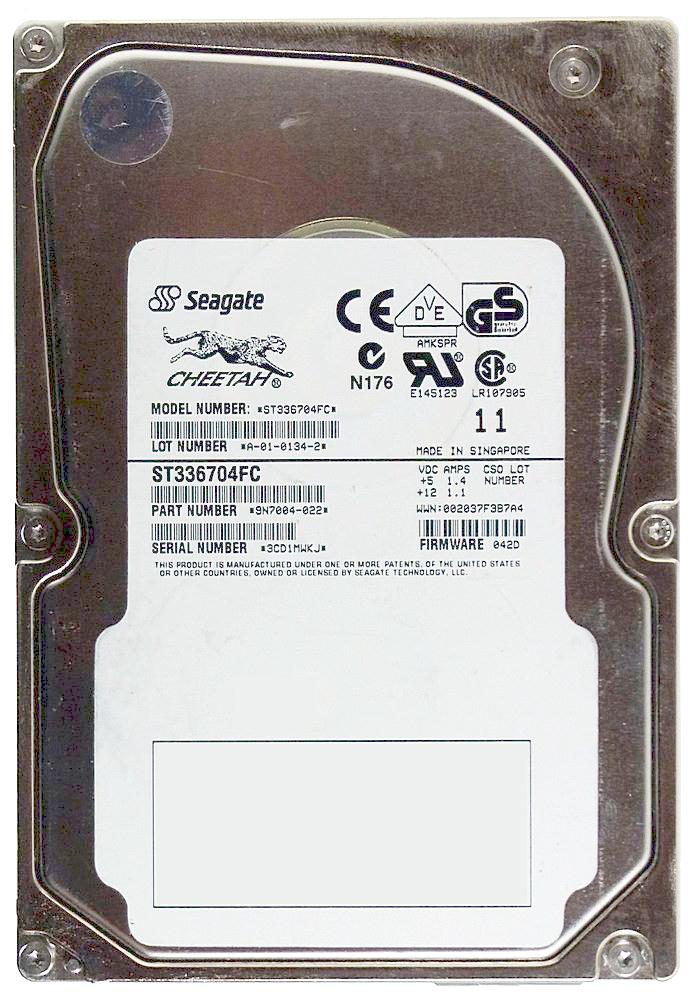

Seagate ST336704FC Fibre / Fiber Channel Hard Drive

Add to Wishlist

AED299.00

Add to Wishlist

Seagate Cheetah ST336704FC 36LP 36GB 10K 2Gbps 40pin Fibre / Fiber Channel Hard Drive – Refurbished

Cheetah 36LP FC drives have the following standard features:

• Integrated dual port FC-AL controller

• Concurrent dual port transfers

• Support for FC arbitrated loop, private and public attachment

• Differential copper FC drivers and receivers

• Downloadable firmware using the FC-AL interface

• Supports SCSI enclosure services via interface connector

• 128-deep task set (queue)

• Supports up to 32 initiators

• Drive selection ID and configuration options are set on the FC-AL backpanel or through interface commands.

Jumpers are not used on the drive.

• Fibre Channel worldwide name uniquely identifies the drive and each port

• User-selectable logical block size (512 to 704 bytes per logical block)

• Selectable frame sizes from 128 to 2,112 bytes

• Industry standard 3.5-inch low profile form factor dimensions

• Programmable logical block reallocation scheme

• Flawed logical block reallocation at format time

• Programmable auto write and read reallocation

• Reed-Solomon error correction code

• Sealed head and disc assembly (HDA)

• No preventive maintenance or adjustments required

• Dedicated head landing zone

• Automatic shipping lock

• Embedded Grey Code track address to eliminate seek errors

• Self-diagnostics performed at power on

• 1:1 interleave

• Zone bit recording (ZBR)

• Vertical, horizontal, or top down mounting

• Dynamic spindle brake

• 4,096 Kbyte data buffer (16,384 Kbytes on FCV drives). See Section 4.5.

• Embedded servo design

• Reallocation of defects on command (Post Format)

• Fibre Channel interface transports SCSI protocol

SKU: ST336704FC Category: Tags: ,
Weight 0.6 kg
Technical Specifications
  Description
Model number ST336704FC
Model Name Cheetah 36LP
Form Factor(width) 3.5″
Form Factor(height) low-profile
  Physical Specifications
Height 25.4 mm
Width 101.6 mm
Length 146 mm
Weight 0.6 kg
  Capacity/Interface
Formatted Capacity 36.7 Gbytes, formatted
Interface Type 40-pin SCA
  Performance
  Transfer Rates
Internal Transfer Rate (min) 28 Mbits/sec
Internal Transfer Rate (max) 427 Mbits/sec
Formatted Int Transfer Rate (min) 26.700000 Mbits/sec
Formatted Int Transfer Rate (max) 40.200000 Mbits/sec
External (I/O) Transfer Rate (max) 200 MBytes/sec
Avg Formatted Transfer Rate 35.5 MBytes/sec
  Seek Times
Average Seek Time, Read 5.2 msec typical
Average Seek Time, Write 6 msec typical
Track-to-Track Seek, Read 0.6 msec typical
Track-to-Track Seek, Write 0.9 msec typical
Average Latency 2.99 msec
  Other
Default Buffer (cache) Size 4,096 Kbytes
Spindle Speed 10,000 RPM
  Configuration
Number of Discs (physical) 6
Number of Heads (physical) 12
Total Cylinders 14,100
Bytes Per Sector 512
  Recording Components
Recording Method NPV
  Electrical Requirements
  Current
  Power
Idle Power (typ) 12.5 watts
  Environmental Specifications
  Shock and Vibration
Max Operating Shock (11-msec) 10 Gs
Max Nonoperating Shock (2-msec) 200 Gs
Operating Vibration (max) 0.5 Gs
Nonoperating Vibration (max) 2 Gs
  Temperature and Humidity
Operating Temperature (max) 55 deg C
Operating Temperature (min) 5 deg C
Nonoperating Temperature (max) 70 deg C
Nonoperating Temperature (min) -40 deg C
  Altitude
  Acoustics
Acoustics, Idle (sound power, typ) 3.9 Bels
  Reliability
MTBF (Hours) 1,200,000 hours
Recoverable Read Errors 10 per 1012 bits read
Nonrecoverable Read Errors 1 per 1015 bits read
Seek Errors 1 per 108 bits read
Supports S.M.A.R.T. Yes
