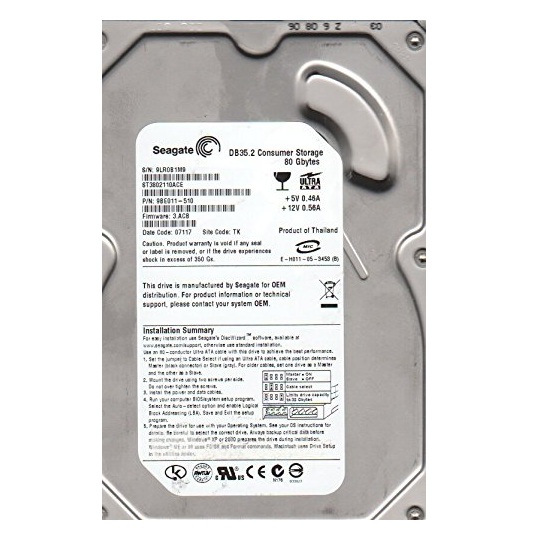

Seagate ST3802110ACE 80GB IDE Hard Drive

Add to Wishlist

399.00 د.إ

Add to Wishlist

Seagate DB35 Series 7200.2 ST3802110ACE 80GB 3.5″ 7.2K RPM IDE/Ultra ATA-100 HDD – Brand New

Seagate DB35 Series 7200.2 ST3802110ACE 80GB 3.5inch 7200 RPM IDE/Ultra ATA-100 Hard Drive – Brand New

Alt MPN: 9BE011-510

This drives provide the following key features:

  • Minimal acoustics for consumer storage usage profile.
  • Bedroom quiet performance.
  • Optimized power for consumer storage devices.
  • Spinup current limited to a maximum of 2 amps.
  • 7,200-RPM spindle speed
  • 2-Mbyte buffer
  • High instantaneous (burst) data transfer rates (up to 100 Mbytes per second) using Ultra DMA mode 5.
  • Tunneling Magnetoresistive (TMR) recording heads.
  • State-of-the-art cache and on-the-fly error-correction algorithms.
  • Full-track multiple-sector transfer capability without local processor intervention.
  • 350 Gs nonoperating shock.
  • Support for S.M.A.R.T. drive monitoring and reporting.
  • Support for Read Multiple and Write Multiple commands.
  • Support for autodetection of master/slave drives that use cable select (CSEL).
  • SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
  • The 3D Defense System™, which includes Drive Defense, Data Defense, and Diagnostic Defense, offers the industry’s most comprehensive protection for disc drives.
SKU: ST3802110ACE Category: Tags: , ,
Weight 0.580 kg
SPECIFICATIONS
Model Number ST3802110ACE
Formatted Gbytes (512 bytes/sector) 80
Guaranteed sectors 156,301,488
Bytes per sector 512
Default sectors per track 63
Default read/write heads 16
Default cylinders 16,383
Recording density, KBPI (kbits/in max) 840.0
Track density, KTPI (ktracks/in max) 141.5
Areal density, (Gbits/in max) 119.0
Spindle speed (RPM) 7,200
Internal data transfer rate (Mbits/sec max) 867.2
Sustained data transfer rate (Mbytes/sec max) 83.0
I/O data-transfer rate (Mbytes/sec max) 100
ATA data-transfer rate modes supported PIO modes 0-4*
Multiword DMA modes 0-2
Ultra DMA modes 0-5
Cache bufer 2 Mbytes
Height (mm/in max) 261/1.028
Width (mm/in max) 101.6/4.00 +/-0.010inches
Length (mm/in max) 146.99/5.787
Weight (g/lb typical) 580/1.28
Average latency (msec) 4.16
Power-on to ready (sec max) 16 sec
Standby to ready (sec max) 16 sec
Track-to-track seek time (msec typical) <0.8 (read), <1.0 (write)
Average seek (msec typical) 18 (read), 20 (write)
Startup current (typical) 12V (peak) 2.0 amps
Seek power (typical) 12.40 watts
Operating (Consumer Storage Profile) 9.25 watts
Operating (PVR Storage Profile) 4.91
Idle mode (typical) 8.00 watts
Standby mode (typical) 0.80 watts
Sleep mode (typical) 0.80 watts
Voltage tolerance (including noise) 5V +/- 5%
12V +/- 10%
Ambient temperature 0° to 60°C (operating)
-40° to 70°C (nonoperating)
Temperature gradient (°C per hour max) 20°C (operating)
30°C (nonoperating)
Relative humidity 5% to 90% (operating)
5% to 95% (nonoperating)
Relative humidity gradient 30% per hour max
Wet bulb temperature (°C max) 37.7 (operating)
40 (nonoperating)
Altitude, operating -60.96 m to 3,048 m
(-200 ft to 10,000+ ft)
Altitude, nonoperating (below mean sea level, max) -60.96 m to 12,192 m
(-200 ft to 40,000+ ft)
Operational Shock (max at 2 msec) 63 Gs
Non-Operational Shock (max at 2 msec) 350 Gs
Vibration, operating 5-22 Hz: +/- 0.25″. Displacement limited <br<22-350 hz:=”” 0.5=”” gs=”” <br=””>350-500 Hz: 0.25 Gs</br<22-350>
Vibration, nonoperating 5-22 Hz: +/- 0.25″, Displacement limited
22-350 Hz: 5.0 Gs
350-500 Hz: 1.0 Gs
Drive acoustics, sound power
Idle (bels)

Operational, CE seeks (bels)

Operational, PVR seeks (bels)

 2.43 (typical)
2.51 (max)
2.61 (typical)
2.63 (max)
2.45 (typical)
2.51 (max)
Nonrecoverable read errors 1 per 10e14 bits read
Annualized Failure Rate (AFR) 0.70%
Contract start-stop cycles (25°C, 50% rel. humidity) 50,000
