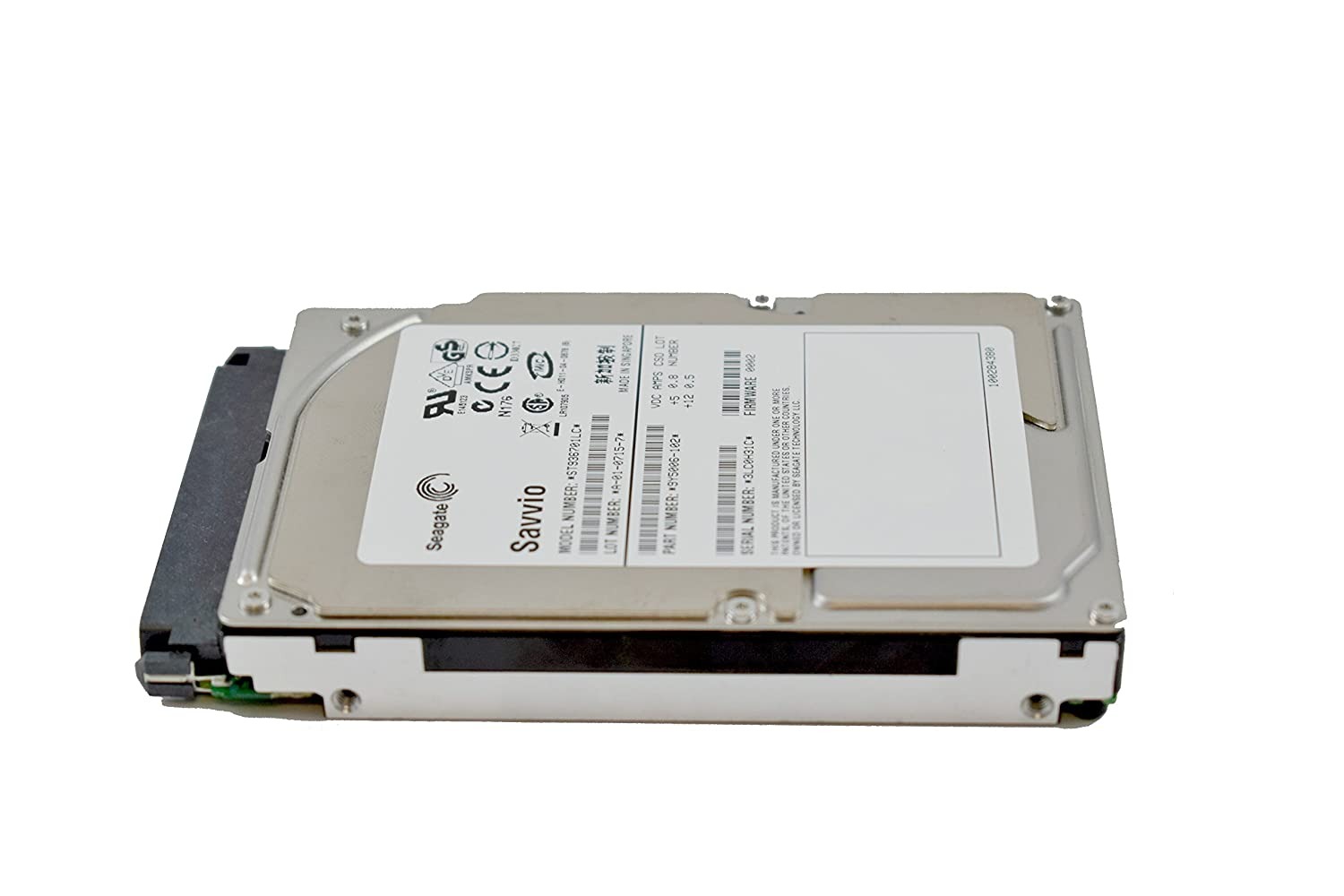

Seagate Savvio 10K.1 36GB 10K U320 80pin SCA-2 SCSI Hard Drive ST936701LC – Refurbished
Savvio is the first 2.5-inch enterprise disc drive, making possible a new class of high I/O, high-density storage solutions. Savvio enables space-constrained data centers to achieve higher IOPs (input/output per second) performance in small form factor system configurations while maintaining the highest levels of reliability
| Specifications | 36.7 GB |
|---|---|
| Model Number | ST936701LC |
| Interface | Ultra320 SCSI |
| PHYSICAL | |
| Height (max) | 14.81 mm (0.583 inches) |
| Width (max) | 70.1 mm (2.76 inches) |
| Length (max) | 111.7 mm (4.40 inches) |
| Weight (typical) | 220 grams (0.49 pounds) |
| Cache | 8 MBytes |
| Capacity | 36.7 GB |
| Guaranteed Sectors | 71,687,372 |
| Number of pins on the I/O connector | 80 |
| Total tracks per surface | 51,052 |
| PERFORMANCE | |
| Spindle Speed | 10,000 rpm |
| Average latency | 3.00 msec |
| Random read seek time | 4.70 msec |
| Random write seek time | 5.10 msec |
| RELIABILITY | |
| MTBF | 1,400,000 hours |
| Power-on hours | 8,760 hours |
| Unrecoverable read errors | 1 in 1015 |
| Recoverable read errors | 10 in 1012 |
| ENVIRONMENT | |
| Temperature | |
| Ambient operating temperature (min) | 5 degrees C |
| Ambient operating temperature (max) | 55 degrees C |
| Ambient nonoperating temperature (min) | -40 degrees C |
| Ambient nonoperating temperature (max) | 70 degrees C |
| Maximum operating temperature change | 20 degrees C per hour |
| Maximum nonoperating temperature change | 20 degrees C per hour |
| Maximum operating case temperature | 60 degrees C |
| Humidity | |
| Minimum Relative humidity (operating) | 5 % |
| Maximum Relative humidity (operating) | 95 % |
| Minimum Relative humidity (nonoperating) | 5 % |
| Maximum Relative humidity (nonoperating) | 95 % |
| Maximum allowable humidity change | 20 % per hour |
| Altitude | |
| Operating altitude (min) | -305 meters |
| Operating altitude (min) | -1,000 feet |
| Operating altitude (max) | 3,048 meters |
| Operating altitude (max) | 10,000 feet |
| Nonoperating altitude (min) | -305 meters |
| Nonoperating altitude (min) | -1,000 feet |
| Nonoperating altitude (max) | 12,210 meters |
| Nonoperating altitude (max) | 40,000 feet |
| Shock | |
| Vibration | |
| Operating Shock (max) | 20 Gs |
| Operating shock | 2 msec |
| Nonoperating Shock (max) | 275 Gs |
| Nonoperating shock | 2 msec |
| Operating vibration | 1.0 Gs |
| Operating vibration | 5 to 500 Hz |
| Nonoperating vibration | 3.00 Gs |
| Nonoperating vibration | 5 to 500 Hz |
| ACOUSTICS | |
| Acoustics (Idle Volume) | 3.5 bels |
