| Category | Specification |
|---|---|
| General Information | |

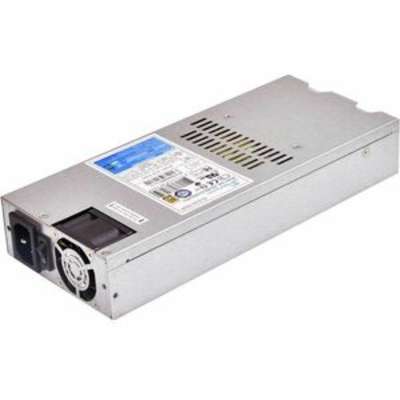

| Product Name | Seasonic Power Supply SS-500L1U 500W 80 Plus Gold EPS12V 1U Low THD |
| Product Model | SS-500L1U |
| Package Type | OEM |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | EPS12V, ATX12V |
| Efficiency | 90% |
| Power Factor Correction (PFC) | Active |
| Protection Type | Short Circuit, Over Power, Over Voltage |
| Modular | Yes |
| Features | Low Noise |
| Power Description | |
| Input Voltage | 120 V AC, 230 V AC |
| Input Frequency | 60 Hz |
| Number of +12V Rails | 1 |
| Output Voltage | 3.3 V DC, 5 V DC, 12 V DC, -12 V DC, 5 V SB |
| Output Voltage Detail | 3.3 V DC @ 20 A 5 V DC @ 20 A 12 V DC @ 40 A -12 V DC @ 0.3 A 5 V SB @ 2.5 A |
| Output Power | 500 W |
| Reliability | |
| MTBF | 100000 Hour |
| Physical Characteristics | |
| Form Factor | Internal |
| Height | 1.6″ |
| Width | 3.9″ |
| Miscellaneous | |
| Energy Efficiency Certification | 80 Plus Gold |
| Environmental Compliance | WEEE, Taiwan RoHS |
There are no reviews yet.
