Sennheiser Dante-Kit MEG 14-40 Basic

Add to Wishlist

11,599.00 د.إ

Add to Wishlist
Key Features
  • SL DI 4 XLR Dante Interface
  • 4 x MAT 133 Table Stands
  • 4 x MEG 14-40 Gooseneck Microphones
  • Phantom Power via PoE
  • Remote-Controllable Gain Level
  • Dante Interface Can Be Daisy-Chained
  • For Lectures, Conferences, and Meetings

Sennheiser DANTE KIT MEG 14-40Ā Overview

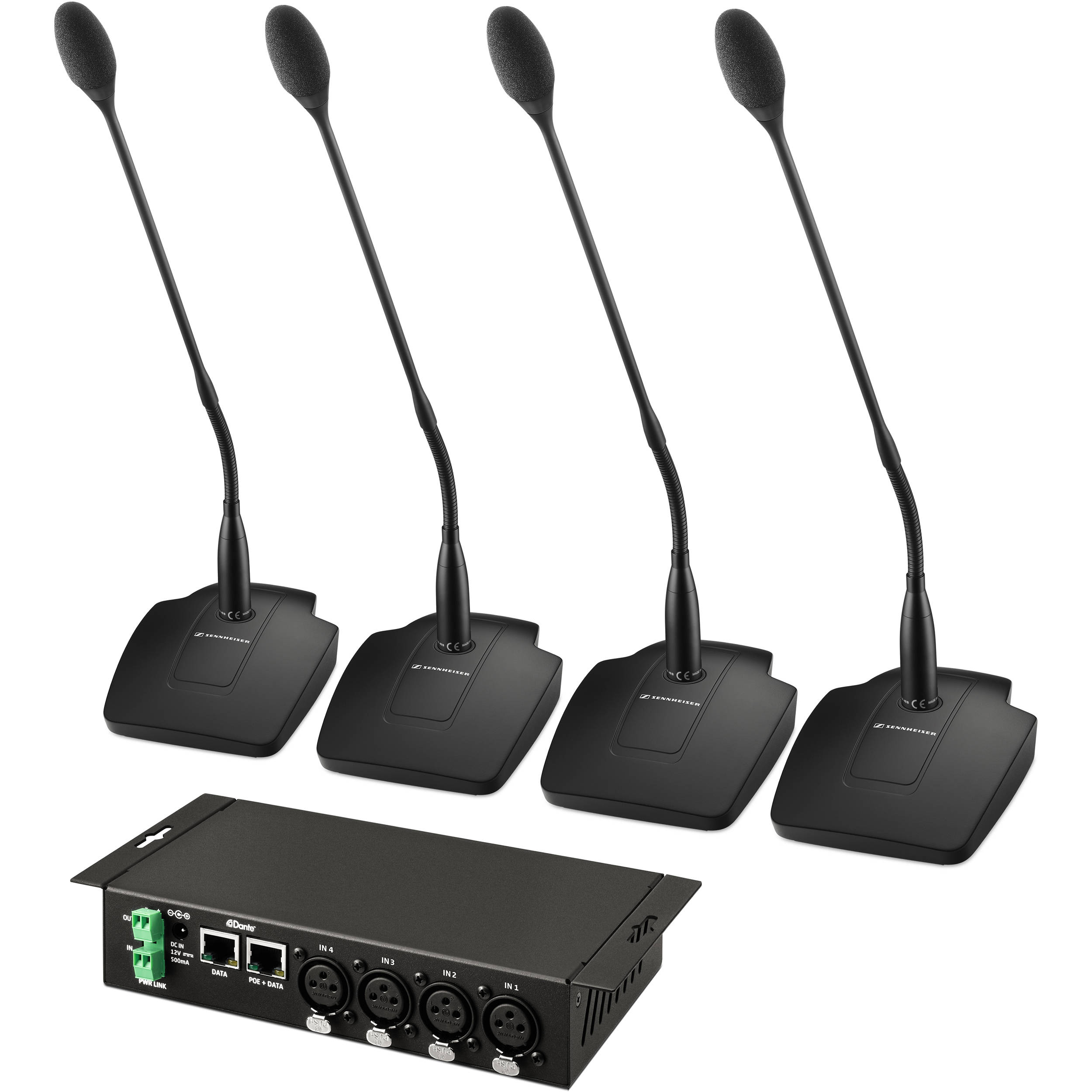

Set the scene for smooth and clearly structured meetings and discussions with theĀ Dante-Kit MEG 14-40 BasicĀ fromĀ Sennheiser. Included in the kit is an SL DI 4 XLR four-input Dante preamp and interface, four black MAT 133 table stands, and four MEG 14-40 gooseneck microphones.

Equipped with KE 10 capsules, the microphones feature a directional cardioid polar pattern and yield a frequency response of 50 Hz to 20 kHz for high speech intelligibility. Each mic connects to the SL DI 4 XLR four-input Dante preamp and interface for wireless microphone receivers via a standard 3-pin XLR cable (available separately). As an analog-to-digital audio converter, the SL DI 4 XLR allows adding analog microphone systems to a Dante system. The SL DI 4 XLR is compatible with all Sennheiser wireless microphone receivers.

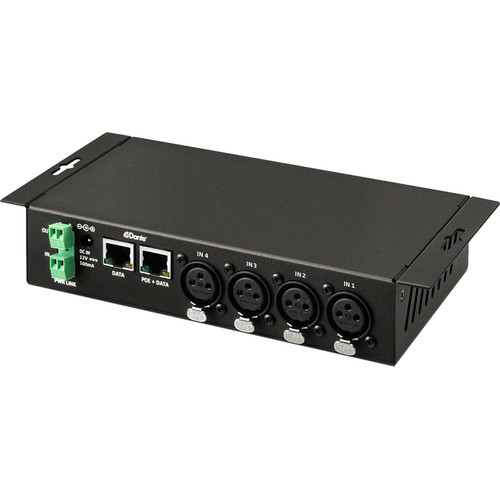

Sennheiser SL DI 4 XLR Four Input Dante Preamp & Interface

TheĀ SL DI 4 XLRĀ fromĀ SennheiserĀ is a four input Dante preamp and interface for wireless microphone receivers with mic/line inputs to a Dante system. It can be mounted and used almost anywhere close to audio sources and minimizing interference-prone analog wiring in wireless applications.

Featuring four balanced mix/line inputs, each with software-selectable 48V phantom power and different gain levels, the interface provides front-panel LED indicators for showing each channel’s gain and phantom power status, which makes for easy troubleshooting.

Plus, it has two network connections to allow Dante Daisy Chaining. This allows you to have multiple SL DI 4 XLR units and use a single Cat-5 home-run connection to a network switch for daisy chaining power. The unit is powered by either an external 12 VDC or any PoE (Power over Ethernet) network switch. All adjustable parameters such as mic/line gain and phantom power are software controlled.

Four XLR balanced and RF filtered mic/line inputs
Gain is individually adjustable per channel via software
802.3af compliant PoE (Power over Ethernet) powered to work with any compliant PoE network switch, or an external +12 VDC power supply
48V phantom power ā€“ powers virtually all types of phantom powered microphones typically used in installed AV systems. Phantom power is switchable per channel via software
ID LED allows easy identification of the SL DI 4 XLR
Dante Daisy Chaining allows multiple SL DI 4 XLRs to be connected over a single home run to the Ethernet switch

Sennheiser MAT 133 Table Stand (Black)

The blackĀ MAT 133 Table StandĀ byĀ SennheiserĀ is for connecting and operating XLR gooseneck microphones. It is used in audio applications such as in lectures, boardrooms, meeting rooms, and more. The MAT 133 is built rugged and provides an XLR-3F microphone in and an XLR-3M microphone output. This stand uses 24 to 48V phantom power. It is compatible with the MEG and MZH series goosenecks.

UPC: 615104230620

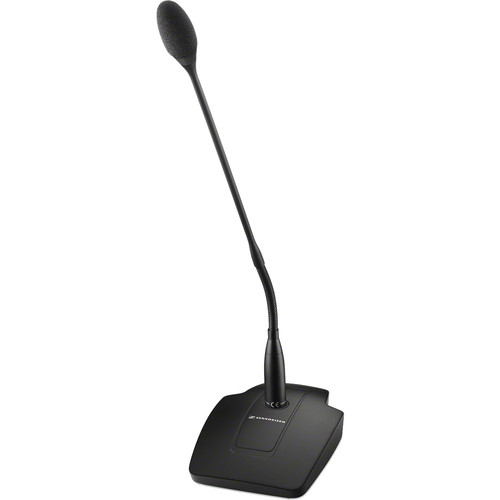

Sennheiser MEG 14-40 Gooseneck Microphone (XLR 3-Pin)

TheĀ Sennheiser MEG 14-40Ā is a 15.7ā€ gooseneck microphone designed to provide intelligible speech reproduction for lectures, conferences, meetings, and houses of worship. It features an XLR 3-pin connector, which is compatible with most standard microphone preamps.

Its KE 10 capsule features a directional cardioid polar pattern and yields a frequency response of 50 Hz to 20 kHz. RF shielding protects against interference from wireless devices, giving you a cleaner signal. The flexible 15.7ā€ gooseneck allows precise placement in front of the spokesperson. No batteries are needed to power the MEG 14-40; it operates on 12 to 48V phantom power.

15.7″ gooseneck mic with integrated Sennheiser KE 10 cardioid capsule
RF shielding against intermodulation from wireless equipment
Streamlined design for seamless integration
XLR 3-pin male connector
SKU: DANTE KIT MEG 14-40 BASIC Category: Tag:

Sennheiser SL DI 4 XLR Four Input Dante Preamp & InterfaceĀ Specs

Audio Input
Input Type Balanced and RF filtered
Gain 0 dB, +15 dB, + 30 dB, +45 dB, software selectable
10 dB pad, software selectable
Input Impedance >1.8 kOhms @ any gain
Maximum Input Levels +18 dBu @ 0 dB gain, with pad
+8 dBu @ 0 dB gain, no pad
-7 dBu @ +15 dB gain, no pad
-22 dBu @ +30 dB gain, no pad
-36 dBu @ +45 dB gain, no pad
Phantom Power +48 V, 10 mAh per input, software selectable
Audio Performance
EIN -113 dBu
THD+N Input signal 3 dB below maximum
Frequency Response 20 Hz – 20 kHz
Dante Network
Type Standard Ethernet
Connector Single RJ-45
Cable Quality: Cat-5
Transmission Speed 100 Mbps
Daisy Chain 2 units when powered by 802.3af PoE
3 units when powered by external +12 VDC power supply (Sennheiser NT 12-50CS)
Properties
Power Requirements Class 0 802.3af PoE PD compliant
+12 VDC
Power Consumption 2.7 W (225 mAh) @ +12 VDC, no phantom power
5.5 W (460 mAh) @ +12 VDC, 10 mAh phantom power load per input
Operating Temperature 32 to 104Ā°F (0 to 40Ā°C)
Dimensions (W x H x D) 8.6 x 1.5 x 4.7″ (219 x 38 x 120 mm)
Weight 1.7 lb (0.77 kg)
Packaging Info
Package Weight 2.16 lb
Box Dimensions (LxWxH) 12.8 x 7.2 x 2.55″

Sennheiser MAT 133 Table Stand (Black)Ā Specs

Physical
Connector Mic in: XLR-3F, pin assignment 1 = ground, 2 = positive (+), 3 = negative (āˆ’)
Mic out: XLR-3M, pin assignment 1 = ground, 2 = positive (+), 3 = negative (āˆ’)
Phantom Power Requirement P24 to P48
Operating Temperature 14Ā° to 122Ā°F (-10Ā° to 50Ā°C)
Current Consumption 1.9 mA
Dimensions (W x D x H) 4.7 x 6.7 x 1.7″ (12 x 17 x 4.3 cm)
Weight 2.67 lb (211.09 g)
Packaging Info
Package Weight 3.5 lb
Box Dimensions (LxWxH) 9.9 x 8.8 x 3.8″

Sennheiser MEG 14-40 Gooseneck Microphone (XLR 3-Pin)Ā Specs

Microphone
Form Factor Gooseneck
Sound Field Mono
Capsule Condenser
Polar Pattern Cardioid
Orientation End Address
Circuitry Solid-State
High-Pass Filter None
Gain Adjustment Yes
Indicators None
Performance
Frequency Range 50 Hz to 20 kHz
Maximum SPL 130 dB SPL
Impedance 100 Ohms
Equivalent Noise Level 26 dB A-Weighted
37 dB CCIR
Connectivity
Output Connectors (Analog) 1 xĀ XLR 3-Pin Male
Power
Operating Voltage 12 to 48 V
Operating Current Consumption 3 mA
Physical
Color Black
Operating Temperature 32 to 104Ā°F / 0 to 40Ā°C
Dimensions Ćø: 0.31 x L: 17.71″ / Ćø: 0.79 x L: 44.98Ā cm
Weight 4.72Ā oz / 134Ā g
Packaging Info
Package Weight 0.48 lb
Box Dimensions (LxWxH) 19.95 x 1.75 x 1.75″
