Sennheiser EW 100 G4 2-Person Camera-Mount Wireless Combo Microphone System Kit (A1: 470 to 516 MHz)


7,299.00 د.إ

Key Features
  • For Mobile Journalist, Videographer
  • 2 x Bodypack and ME2-II Omni Lav
  • Omni Handheld Mic & Plug-On Transmitter
  • 2 x Camera-Mount Receiver, Mic Combiner

TheĀ EW 100 G4 2-Person Camera-Mount Wireless Combo Microphone System KitĀ fromĀ B&HĀ is an extensive wireless mic system designed to deliver a compact, flexible, and reliable audio solution for a wide variety of applications including 2-person sit-down interviews, man-on-the-street interviews, documentaries, lectures, and more.

The kit offers two ME2-II omnidirectional lavalier mics with bodypack transmitters, a Senal omnidirectional handheld interview microphone with plug-on transmitter, two lightweight camera-mount receivers, a Vello mounting bracket, and a Kopul CMCS-1 microphone combiner. A waterproof SKB case is also included for transporting and storing the system.

Both receivers and the mic combiner can be mounted onto a single camera using the triple-shoe bracket. The two receivers plug into the combiner, which in turn plugs into the 3.5mm audio input of your camera. This allows you to record both mics using the single input of your DSLR, keeping your rig portable and compact. Alternatively, you can attach each system to its own camera during multi-cam shoots

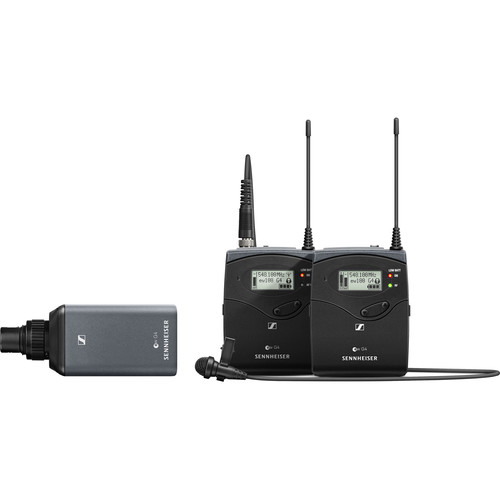

Sennheiser EW 100 ENG G4 Camera-Mount Wireless Combo Microphone System (A1: 470 to 516 MHz)

TheĀ Sennheiser EW 100 ENG G4Ā camera-mount wireless combo microphone system features the proven combination of reliability, flexible control, and broadcast-quality sound that has made the EW Series an industry standard for videographers, journalists, and content creators all over the world.

Designed to accommodate a wide range of applications, the EW 100 ENG G4 gives you the tools to adapt and meet the wireless challenges that inevitably arise on set. The system includes a bodypack transmitter with an ME 2-II omnidirectional lavalier mic, great for hands-free interviews. Also included is a plug-on transmitter, which can be attached to a handheld dynamic microphone of your choice for man-on-the-street interviews or to a shotgun mic for wireless booming (both types of mics are available separately).

The camera-mount receiver connects to a camcorder or a DSLR/mirrorless camera to capture crisp-sounding speech or dialog, for projects ranging from wedding and corporate videos to documentaries and vlogs.

The EW 100 ENG G4 is backward-compatible with previous evolution systems, giving you the ability to mix and match G4/G3/G2/G1 receivers or bodypack, handheld, and plug-on transmitters. It is also compatible with EW 500 systems.

Note: While this system includes two transmitters, only one can be used at a time.

Built for Dependable Performance in the Field

  • The EW 100 ENG G4 features rugged, all-metal chassis well suited for extended use on location. The lightweight, compact bodypack transmitter is easy to conceal and offers rounded edges that are soft to the touch and comfortable for the talent to wear. A locking connector ensures that your lav doesn’t detach at a critical moment, while a convenient switch allows you to mute your mic.
  • The plug-on transmitter lets you connect any dynamic microphone or battery-powered shotgun mic equipped with an XLR connector (it does not provide phantom power). There is also a switch for muting your mic.
  • Using the included shoemount adapter, the compact receiver easily mounts on your camera without adding much weight. The included cables allow you to connect the receiver to the 3.5mm or XLR audio input of any DSLR/mirrorless, camcorder, or recording device.
  • Both transmitters and the receiver feature daylight-readable LED displays showing reception quality, battery status, and audio level. To get you going quickly, they synchronize via infrared interface with the simple push of a button.

Proven Broadcast-Quality Sound

  • The EW 100 ENG G4 ships with the popular ME 2-II omnidirectional lavalier microphone, which delivers a natural sound optimized for speech intelligibility. Its omnidirectional polar pattern ensures that the sound remains consistent, even when the speaker’s head moves away from the mic.
  • To take full advantage of the microphones’ dynamic range, the system employs proprietary HDX compander technology, preserving your sound without adding unwanted noise during transmission, and delivering audio with remarkable accuracy and quality.

Additional Features

  • Adaptive-diversity reception for reliable transmission up to 330′
  • 46 MHz bandwidth with 1680 tunable UHF frequencies for interference-free reception
  • Frequency scan function automatically searches for the cleanest frequency at your location
  • 20 frequency banks, each with up to 12 factory-preset channels to prevent intermodulation
  • Adjustable input sensitivity on both transmitters accommodates mic levels ranging from booming voices to quiet speech, and even line-level audio
  • Pilot tone squelch for eliminating RF noise when transmitter is turned off
  • Receiver with adjustable output range of 42 dB to match the audio input of your camera or recording device
  • User-friendly menu operation with flexible control options
  • Transmitter and receiver feature 4-step battery-life indicator
  • Auto-Lock function avoids accidental changing of settings
  • RF Mute function
  • 8 hours of battery life
  • Powered via AA batteries or rechargeable BA 2015 Accupack batteries (available separately)
  • Side contacts for recharging Accupacks without removing them from either the bodypack transmitter or receiver—requires the L 2015 quick-charging unit (available separately)
  • Operate up to 12 wireless mics at once on set
  • Unlike digital wireless systems, the EW series transmitters can transmit to an unlimited number of EW Series receivers
  • Wide range of accessories adapts the system to a variety of applications

EW 100 G4 vs EW 500 G4 Systems at a Glance

  • Bandwidth:Ā Up to 46 MHz vs up to 88 MHz
  • UHF Frequencies:Ā 1680 vs up to 3520
  • RF Output Power:Ā Fixed 30 mW vs adjustable 10/30/50 mW
  • Mics at Once:Ā Up to 12 mics vs up to 32 mics
  • Included Lavalier Mic:Ā ME 2-II omni or ME 4 cardioid vs professional MKE 2 omni
  • Headphone Output:Ā No vs yes
  • Audio Output:Ā Unbalanced vs balanced
  • Plug-On Transmitter:Ā No Phantom vs +48V phantom power

UPC: 615104309630

Sennheiser EW 112P G4 Camera-Mount Wireless Omni Lavalier Microphone System (A1: 470 to 516 MHz)

TheĀ Sennheiser EW 112P G4Ā camera-mount wireless lavalier microphone system features the proven combination of reliability, flexible control, and broadcast-quality sound that has made the EW Series an industry standard for videographers, journalists, and content creators all over the world.

The EW 112P G4 gives you the tools to adapt and meet the wireless challenges that inevitably arise on set. The frequency scan function automatically searches for the cleanest frequency at your location, while the adjustable input sensitivity on the transmitter accommodates mic levels ranging from booming voices to quiet speech, and even line-level audio.

The system includes the improved ME 2-II omnidirectional lavalier mic, a bodypack transmitter, and a camera-mount receiver. It connects to a camcorder or a DSLR/mirrorless camera to capture crisp-sounding speech or dialog for projects ranging from documentaries to wedding videos, corporate spots, and hands-free interviews.

The EW 112P G4 is backward-compatible with previous evolution systems, giving you the ability to mix and match G4/G3/G2/G1 receivers or bodypack, handheld, and plug-on transmitters. It is also compatible with EW 500 systems.

Built for Dependable Performance in the Field

  • The EW 112P G4 features rugged, all-metal chassis well suited for extended use on location. The lightweight, compact bodypack transmitter is easy to conceal and offers rounded edges that are soft to the touch and comfortable for the talent to wear. A locking connector ensures that your lav doesn’t detach at a critical moment, while a convenient switch allows you to mute your mic.
  • Using the included shoemount adapter, the equally compact receiver easily mounts on your camera without adding much weight. The included cables allow you to connect the receiver to the 3.5mm or XLR audio input of any DSLR/mirrorless, camcorder, or recording device.
  • Both transmitter and receiver feature daylight-readable LED displays showing reception quality, battery status, and audio level. To get you going quickly, they synchronize via infrared interface with the simple push of a button.

Proven Broadcast-Quality Sound

  • The EW 112P G4 ships with the popular ME 2-II omnidirectional lavalier microphone, which delivers a natural sound optimized for speech intelligibility. Its omnidirectional polar pattern ensures that the sound remains consistent, even when the speaker’s head moves away from the mic.
  • To take full advantage of the ME 2-II’s dynamic range, the system employs proprietary HDX compander technology, preserving your sound without adding unwanted noise during transmission, and delivering audio with remarkable accuracy and quality.

Additional Features

  • Adaptive-diversity reception for reliable transmission up to 330′
  • 46 MHz bandwidth with 1680 tunable UHF frequencies for clean reception
  • 20 frequency banks, each with up to 12 factory-preset channels to prevent intermodulation
  • Pilot tone squelch for eliminating RF noise when transmitter is turned off
  • Receiver with adjustable output range of 42 dB to match the audio input of your camera or recording device
  • User-friendly menu operation with flexible control options
  • Transmitter and receiver feature 4-step battery-life indicator
  • Auto-Lock function avoids accidental changing of settings
  • RF Mute function
  • 8 hours of battery life
  • Powered via AA batteries or rechargeable BA 2015 Accupack batteries (available separately)
  • Side contacts for recharging the Accupacks without removing them from either transmitter or receiver—requires the L 2015 quick-charging unit (available separately)
  • Operate up to 12 wireless mics at once on set
  • Unlike digital wireless systems, the SK 100 G4 transmitter can transmit to an unlimited number of EW Series receivers
  • Wide range of accessories adapts the system to a variety of applications

EW 100 G4 vs EW 500 G4 Systems at a Glance

  • Bandwidth:Ā Up toĀ 46 MHz vs up to 88 MHz
  • UHF Frequencies:Ā 1680 vs up to 3520
  • RF Output Power:Ā Fixed 30 mW vs adjustable 10/30/50 mW
  • Mics at Once:Ā Up to 12 mics vs up to 32 mics
  • Included Lavalier Mic:Ā ME 2-II omni or ME 4 cardioid vs professional MKE 2 omni
  • Headphone Output:Ā No vs yes
  • Audio Output:Ā Unbalanced vs balanced
  • Plug-On Transmitter:Ā No phantom vs +48V phantom power

UPC: 615104309395

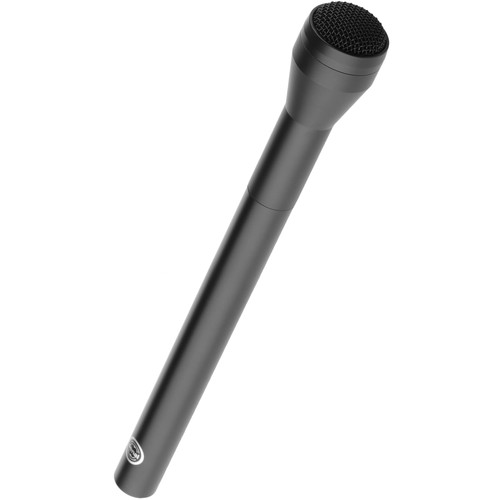

Senal ENG-18RL Broadcast Omnidirectional Dynamic Microphone (Long)

TheĀ Senal ENG-18RLĀ is a broadcast-quality omnidirectional dynamic microphone. The dynamic capsule picks up sound in a 360° pattern and does not require a battery or phantom power, making it a reliable choice for critical field applications. The microphone’s exceptionally low handling noise and resistance to wind noise and vocal plosives make it perfect for professional ENG applications like live reporting, interviews, and press conferences.

At multiple areas inside the microphone, natural rubber with special shock-absorbing properties is bonded to carbon steel rings to isolate the sealed inner shell from the outer shell. This system protects the microphone capsule from impacts and inclement weather, and dissipates kinetic energy, dramatically reducing handling noise and resonance due to rustling and knocking.

The microphone also incorporates multistage wind protection to minimize wind noise and vocal plosives. A mesh grille, acoustic foam, acoustic fabric, and another layer of acoustic foam work to diffuse excess sound pressure from wind and breath. A fixed rigid carbon-steel ring with a unique bullet-shaped design disperses breath to minimize vocal plosives.

The EQ curve is tailored for broadcast use, with a gradual low-frequency roll-off to keep out unwanted rumble, a pronounced midrange to ensure speech intelligibility, and a high-frequency roll-off to eliminate hiss and sibilance distortion. Whether broadcasting on television, AM/FM radio, or over the internet, the ENG-18RL is designed to ensure that dialogue cuts through the mix, and can be broadcast live without EQ adjustment.

The ENG-18RL features a durable aluminum-alloy shaft designed for EMI rejection and reduced internal resonance, with a matte black finish for a professional appearance and minimum light reflection. The mic is also long enough to accommodate a mic flag.

Ideal Choice for Critical Field Applications

The broadcast-quality omnidirectional dynamic capsule picks up sound in a 360° pattern and does not require a battery or phantom power, making it a reliable choice for critical field applications

Isolated Inner Shell

The kinetic isolation system helps protect the microphone capsule and dissipate kinetic energy to dramatically reduce handling noise and resonance. Natural rubber shockmouts are bonded to carbon steel rings to isolate the sealed inner shell from the outer shell

Diffuses Excess Sound Pressure From Wind and Vocal Plosives

Multistage wind protection comprises a mesh grille, acoustic foam, a bullet-shaped ring, acoustic fabric, and another layer of acoustic foam to diffuse excess sound pressure from wind and vocal plosives

Broadcast Live Without EQ Adjustment

The EQ curve is tailored for broadcast use, with a gradual low-frequency roll-off to keep out unwanted rumble, a pronounced midrange to ensure speech intelligibility, and a high-frequency roll-off to eliminate hiss and sibilance distortion

Can Accommodate Mic Flag

The ENG-18RL is long enough to fit a mic flag for show or station identification

UPC: 847628572461

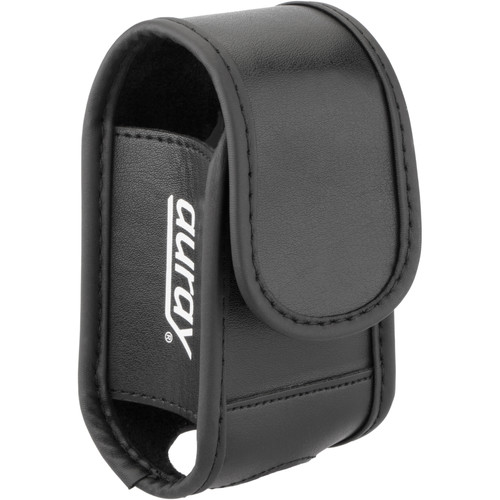

Auray Universal Plug-On Transmitter Holster

TheĀ AurayĀ Universal Plug-On Transmitter HolsterĀ is a durable leather case that will fit most wireless plug-on transmitters. It builds upon its predecessor, the UPOH-A, by increasing the area of the side window. This change accommodates more brands and models.

The side window makes it easy for you to view and access your transmitter’s controls. Also, you’ll notice that the connector cutout has been made wider to facilitate cable interaction and connectivity with a greater range of transmitters.

The AurayĀ Plug-On Transmitter HolsterĀ is built with a heavy-duty belt clip. The transmitter is secured in the holster by a touch-fastener closure that keeps your device protected while conveniently at your side.

Leather Holster

The Auray holster is an excellent option for your transmitter. It keeps it secured within this stylish leather case and protects it from dust, dirt, and bumps in your environment.

Heavy-Duty Belt Clip

The belt clip is made of heavy-duty metal, and it clamps securely to your belt or pocket.

Large Side Window

The side window is larger than the window of this model’s predecessor, allowing for easy viewing and access to your transmitter, permitting you to quickly make adjustments such as changing channels or the volume on the fly.

Touch-Fastener Closure

The touch-fastener closure provides a snug, secure fit for your transmitter and keeps the transmitter protected, while on the belt and when in use.

Compatible Plug-On Transmitters:

  • Azden 35XT
  • Lectrosonics HMa
  • Senal AWS-2000P
  • Sennheiser SKP 100
  • Sennheiser SKP 500
  • Sony UTX-P03
  • Sony UTX-P40
  • Similar-sized wireless transmitters

UPC: 847628007604

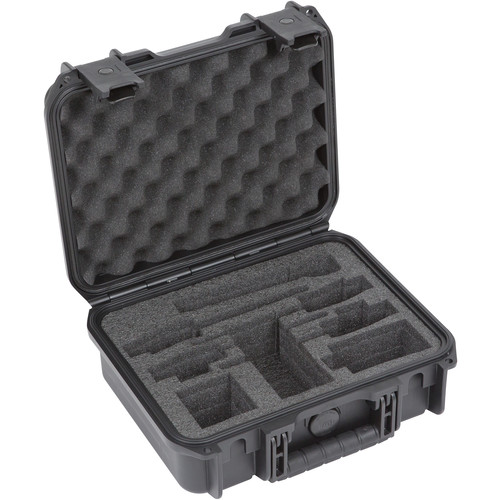

SKB iSeries Waterproof Case for 2 Sennheiser ENG Systems, or 2 Senal Systems

TheĀ iSeries Waterproof Case for 2 Sennheiser ENG Systems or 2 Senal SystemsĀ fromĀ SKBĀ is an injection molded waterproof case that includes a form-cut foam interior. It can be used to protect your gear from dust and moisture and transport the wireless microphone system and accessories safely.

The foam-cut interior of the case can accommodate up to two Sennheiser EW100 or, one ENG handheld mic (Senal 18RL or Electro-Voice RE50/B), one Vello triple shoe V-Bracket CB-410, one pocket for lavalier mics or other small accessories, one plug-on transmitter and one 2.5″ x 2.5″ mic flag.

Furthermore, the military-standard iSeries case is constructed from a high-strength polypropylene copolymer resin and is equipped with a gasket for a water and dust proof seal. It is resistant to corrosion and damage due to impact. Additionally, this case also features stainless steel molded-in hinges, a trigger release latch system, a comfortable snap-down rubber over molded cushion-grip handle, and an automatic ambient pressure equalization valve (MIL-STD-648C).

Note: *Sony model needs to remove the shoe before storage for fit in this case.

Case is injection molded of polypropylene copolymer resin
The interior of the case features a custom form-cut PE (polyethylene) foam interior
Case can hold:
2x Sennheiser EW100, (2) Senal Wireless systems
1x ENG Handheld Mic (Senal 18RL or Electro-Voice RE50/B)
1x Vello triple shoe V-Bracket CB-410
1x Pocket for lavalier mics or other small accessories
1x Plug-on transmitter
1x 2.5 x 2.5″ mic flag

UPC: 789270999848

Vello V-Rig 4.1″ Triple Shoe Bracket

TheĀ Vello V-Rig 4.1″ Triple Shoe BracketĀ mounts onto a camera’s accessory shoe in order to provide three additional accessory shoes for mounting lights, monitors, microphones, or other accessories. In addition to the shoe mount, a 1/4″-20 thread is also available for attaching the bracket to a tripod, rig, or other bracket featuring a 1/4″-20-threaded mount.

The bracket is constructed from rigid, yet lightweight single-piece aluminum alloy, and the mounting shoes are machined out of the same piece as the bracket, for additional strength. The accessory shoes also feature backstops for greater security when attaching accessories. The bottom shoe that attaches to the camera features a locking pin, which keeps the shoe in place and prevents the shoe from rotating during use.

4.1″-Wide Bracket

This V-Bracket’s width spans 4.1″ and has a tiered design for mounting up to three additional accessories.

Machined Aluminum Alloy

The bracket is machined out of a single piece of aluminum alloy, which provides greater strength to the three shoes.

Accessory Shoe and 1/4″-20 Socket Mounts

The bracket can attach directly to a camera via the accessory shoe or, additionally, it features a 1/4″-20 socket for attaching to threaded mounts such as a tripod.

Locking Pin

The bottom shoe that mounts on to the camera features a locking pin, which prevents the bracket from rotating.

UPC: 847628580169

Kopul CMCS-1 Passive 3.5mm Microphone Combiner/Splitter

Offering superior sound quality compared to conventional adapter cables, theĀ Kopul CMCS-1Ā lets you easily capture sound from two 3.5mm microphones into your DSLR camera or camcorder in discreet mono or combined stereo while bypassing the hassle of a dangling adapter cable.

This simple and lightweight solution utilizes a shoe mount for effortless attachment to your shooting rig, and it features dual mono inputs for external microphones and a 3.5mm stereo output, making connectivity uncomplicated. The onboard switch allows the CMCS-1 to transmit a mixed stereo signal or two individual mono signals to any DSLR camera or camcorder with a 3.5mm input.

The compact and featherlight CMCS-1 is ideal for recording dialogue, narration over ambient sound, or stereo soundscapes and is so straightforward to operate, it will improve your audio without any interruptions for your workflow. Since the CMCS-1 is passive, it requires no batteries or special source of power.

Combines Two Mic Signals

Kopul’s CMCS-1 allows you to add two external microphones to your camera rig. Use two lavalier mics when you’re recording dialogue or a lavalier and a camera-mountable microphone for recording a narrator with some ambient sound.

Wide Frequency Response

There’s nothing like rich audio to enhance a video production. The wide 20 Hz to 20 kHz frequency response means the CMCS-1 can transmit detailed and accurate sound to your camera.

Simple to Use

The CMCS-1 couldn’t be simpler to use. Its passive design means no power source is necessary. All you do is plug in your 3.5mm microphones, connect the included 3.5mm cable to your camera’s audio input, and you’re ready to record.

Sums Two Signals to Mono

When you select mono mode, the CMCS-1 combines both mic inputs to a mono signal and outputs this mono mix identically to two channels. Since the two mic signals are married together, you can tweak the level, EQ, or compression of the combined signals in postproduction.

Splits Two Signals

When you select stereo mode, the CMCS-1 splits the two signals and outputs them to separate channels. This is ideal if you want the flexibility to alter the volume, EQ, compression, and panning on each individual track in postproduction. It’s also a great option if you want to record a stereo soundscape.

Camera Mountable

The CMCS-1 attaches directly to your camera’s hot/cold shoe. Weighing less than two ounces, the CMCS-1 is featherlight. You might not even know it’s there.

Mounting Socket

The CMCS-1 is outfitted with a 1/4″-20 mounting socket so you can conveniently mount it on a tripod or onto your camera rig.

Includes Audio Cable

The CMCS-1 comes with a coiled 3.5mm TRS cable, which extends from eight to 30 inches. It features gold connector plating and OFC (oxygen-free copper) shielding to maintain the purity of your signal.

Sennheiser EW 100 ENG G4 Camera-Mount Wireless Combo Microphone System (A1: 470 To 516 MHz)Ā Specs

System
Wireless Transmission Analog UHF
Number of RF Channels 1680
Included Transmitters 1 xĀ Bodypack with Microphone
Diversity Antenna Diversity
RF Frequency Band A1:
470 to 516 MHz
RF Bandwidth 46 MHz
Frequency Step Size 25 kHz
Max Operating Range 330′ / 100.6Ā m (Line of Sight)
Max Systems per Setup 12
Deviation 48 kHz (Peak)
Modulation Wideband FM
Receiver
Form Factor Camera-Mount
Mounting Options Shoe-Mount (with Included Hardware)
Antenna 1 xĀ Flexible Whip, Fixed
Number of Audio Channels 1
Audio I/O 1 xĀ 1/8″ / 3.5 mm TRS Female Unbalanced Output (Lockable)
Gain Range 42 dB (6 dB Steps)
Audio Output Level +12 dBu
Approximate RF Sensitivity 1.6 µV
Squelch 5 to 25 dBμV
Adjacent Channel Isolation >65 dB
Power Requirements Battery
Battery Type 2 xĀ AA (Included)
1 xĀ Sennheiser Accupack (Not Included)
Approx. Battery Life 8 Hours (Alkaline)
Display & Indicators 1 xĀ Backlit LCD (Battery Status, Output Level, RF Level)
Housing Metal
Operating Temperature 14 to 131°F / -10 to 55°C
Dimensions 2.5 x 3.2 x 0.9″ / 64 x 82 x 24Ā mm
Weight 5.6Ā oz / 160Ā g (with Batteries)
Transmitter 1
Transmitter
Form Factor Bodypack
RF Output Power 30 mW
Audio I/O 1 xĀ 1/8″ / 3.5 mm TRS Female Unbalanced Input (Lockable)
Muting Mute Switch
Audio Input Level 3 V RMS (Max)
Gain Range 60 dB (3 dB Steps)
Frequency Response 80 Hz to 18 kHz (Mic)
25 Hz to 18 kHz (Line)
Sync Method IR
Antenna 1 xĀ Flexible Whip, Fixed (Beltpack)
Power Requirements Battery
Battery Type 2 xĀ AA (Included)
1 xĀ Sennheiser Accupack (Not Included)
Approx. Battery Life 8 Hours (Alkaline)
Display & Indicators 1 xĀ Backlit LCD (Audio Level, Battery Status, Signal Strength)
Housing Metal
Dimensions 2.5 x 3.2 x 0.9″ / 64 x 82 x 24Ā mm
Weight 5.6Ā oz / 160Ā g (with Batteries)
Microphone
Form Factor Lavalier
Sound Field Mono
Capsule Electret Condenser
Polar Pattern Omnidirectional
Frequency Range 50 Hz to 18 kHz
Equivalent Noise Level 36 dB
Maximum SPL 130 dB SPL Peak
Sensitivity 20 mV/Pa
Output Connectors 1 xĀ 1/8″ / 3.5 mm TRS Male Unbalanced (Lockable)
Cable Length 5.25′ / 1.6Ā m
Operating Voltage 7.5 V
Transmitter 2
Form Factor Plug-On
RF Output Power 30 mW
Audio I/O 1 xĀ XLR 3-Pin Female Unbalanced Input (Lockable)
Muting Mute Switch
Audio Input Level 3 V RMS
Gain Range 48 dB (6 dB Steps)
Frequency Response 80 Hz to 18 kHz
Sync Method IR
Antenna 1 xĀ Internal
Power Requirements Battery
Battery Type 2 xĀ AA (Included)
1 xĀ Sennheiser Accupack (Not Included)
Approx. Battery Life 8 Hours (Alkaline)
Display & Indicators 1 xĀ Backlit LCD (Audio Level, Battery Status, Signal Strength)
Housing Metal
Operating Temperature 14 to 131°F / -10 to 55°C
Dimensions 1.7 x 4.1 x 1.7″ / 43 x 105 x 43Ā mm
Weight 6.9Ā oz / 195Ā g (with Batteries)
Packaging Info
Package Weight 2.345 lb
Box Dimensions (LxWxH) 16.05 x 7.5 x 3″

Sennheiser EW 112P G4 Camera-Mount Wireless Omni Lavalier Microphone System (A1: 470 To 516 MHz)Ā Specs

System
Wireless Transmission Analog UHF
Number of RF Channels 1680
Included Transmitters 1 xĀ Bodypack with Microphone
Diversity Antenna Diversity
RF Frequency Band A1:
470 to 516 MHz
RF Bandwidth 46 MHz
Frequency Step Size 25 kHz
Max Operating Range 330′ / 100.6Ā m (Line of Sight)
Max Systems per Setup 12
Deviation 48 kHz (Peak)
Modulation Wideband FM
Receiver
Form Factor Camera-Mount
Mounting Options Shoe-Mount (with Included Hardware)
Antenna 1 xĀ Flexible Whip, Fixed
Number of Audio Channels 1
Audio I/O 1 xĀ 1/8″ / 3.5 mm TRS Female Unbalanced Output (Lockable)
Gain Range 42 dB (6 dB Steps)
Audio Output Level +12 dBu
Squelch 5 to 25 dBμV
Adjacent Channel Isolation >65 dB
Power Requirements Battery
Battery Type 2 xĀ AA (Included)
1 xĀ Sennheiser Accupack (Not Included)
Approx. Battery Life 8 Hours (Alkaline)
Display & Indicators 1 xĀ Backlit LCD (Battery Status, Output Level, RF Level)
Housing Metal
Operating Temperature 14 to 131°F / -10 to 55°C
Dimensions 2.5 x 3.2 x 0.9″ / 64 x 82 x 24Ā mm
Weight 5.6Ā oz / 160Ā g (with Batteries)
Transmitter 1
Transmitter
Form Factor Bodypack
RF Output Power 30 mW
Audio I/O 1 xĀ 1/8″ / 3.5 mm TRS Female Unbalanced Input (Lockable)
Muting Mute Switch
Audio Input Level 3 V RMS (Max)
Gain Range 60 dB (3 dB Steps)
Frequency Response 80 Hz to 18 kHz (Mic)
25 Hz to 18 kHz (Line)
Sync Method IR
Antenna 1 xĀ Flexible Whip, Fixed (Beltpack)
Power Requirements Battery
Battery Type 2 xĀ AA (Included)
1 xĀ Sennheiser Accupack (Not Included)
Approx. Battery Life 8 Hours (Alkaline)
Display & Indicators 1 xĀ Backlit LCD (Audio Level, Battery Status, Signal Strength)
Housing Metal
Dimensions 2.5 x 3.2 x 0.9″ / 64 x 82 x 24Ā mm
Weight 5.6Ā oz / 160Ā g (with Batteries)
Microphone
Form Factor Lavalier
Sound Field Mono
Capsule Electret Condenser
Polar Pattern Omnidirectional
Frequency Range 50 Hz to 18 kHz
Equivalent Noise Level 36 dB
Maximum SPL 130 dB SPL Peak
Sensitivity 20 mV/Pa
Output Connectors 1 xĀ 1/8″ / 3.5 mm TRS Male Unbalanced (Lockable)
Cable Length 5.25′ / 1.6Ā m
Operating Voltage 7.5 V
Packaging Info
Package Weight 1.8 lb
Box Dimensions (LxWxH) 16.05 x 7.2 x 3″

Senal ENG-18RL Broadcast Omnidirectional Dynamic Microphone (Long)Ā Specs

Microphone
Form Factor Handheld
Capsule Dynamic
Polar Pattern Omnidirectional
Performance
Frequency Range 50 Hz to 18 kHz
Impedance 500 Ohms
Sensitivity 2.2 mV/Pa
Connectivity
Output Connectors (Analog) 1 xĀ XLR 3-Pin Male
Physical
Construction Material Aluminum
Dimensions Ćø: 1.3 x L: 9.1″ / Ćø: 33 x L: 231.1Ā mm
Weight 4.8Ā oz / 136Ā g
Packaging Info
Package Weight 0.755 lb
Box Dimensions (LxWxH) 11 x 4.9 x 2.7″

Auray Universal Plug-On Transmitter HolsterĀ Specs

Physical
Material of Construction Leather
Closure Method Touch fastener
Carrying / Transport Options Belt clip
Dimensions (H x W x D) 4 x 2 x 2″ / 10.2 x 5.1 x 5.1 cm
Weight 1.2 oz / 34 g
Packaging Info
Package Weight 0.105 lb
Box Dimensions (LxWxH) 3.1 x 2.3 x 1.6″

SKB ISeries Waterproof Case For 2 Sennheiser ENG Systems, Or 2 Senal SystemsĀ Specs

Physical
Material of Construction Injection molded polypropylene copolymer resin
Foam-cut PE (polyethylene) interior
Type of Closure Trigger-release latches
Carrying/Transport Options Custom-grip handle
Exterior Dimensions (L x W x D) 13.2 x 11.1 x 5.2″ (33.5 x 28.2 x 13.2 cm)
Interior Dimensions (L x W x D) 12.0 x 9.0 x 4.5″ (30.5 x 22.9 x 11.4 cm)
Weight 3.6 lb (1.6 kg)
Packaging Info
Package Weight 4.65 lb
Box Dimensions (LxWxH) 14.3 x 12.05 x 6.35″

Vello V-Rig 4.1″ Triple Shoe BracketĀ Specs

Bottom Mount 1 xĀ Accessory Foot
Top Mount 3 xĀ Accessory Shoe
Material Aluminum
Dimensions 4.1 x 3.4 x 0.9″ / 10.5 x 8.5 x 2.2Ā cm
Weight 2Ā oz / 56.7Ā g
Packaging Info
Package Weight 0.25 lb
Box Dimensions (LxWxH) 7.7 x 6.1 x 0.9″

Kopul CMCS-1 Passive 3.5mm Microphone Combiner/SplitterĀ Specs

Main Unit
Frequency Response 20 Hz to 20 kHz
Inputs 2 x 1/8″ / 3.5 mm Mono
Outputs 1 x 1/8″ / 3.5 mm TRS Stereo Female
Power Requirements No Power Required
Mounting Camera Shoe and 1/4″-20 Thread
Dimensions (L x W x H) 2 x 1.2 x 1″ / 5 x 3 x 2.5 cm
Weight 1.6 oz / 45 g
Cable
Length 8 to 30″ / 20.3 to 76.2 cm
Connector 1 1/8″ / 3.5 mm TRS Male
Connector 2 1/8″ / 3.5 mm TRS Male
Jacket Color Black
Connector Plating Gold
Shielding Material Oxygen-Free Copper (OFC)
Weight 0.4 oz / 11 g
Packaging Info
Package Weight 0.19 lb
Box Dimensions (LxWxH) 3.7 x 3.2 x 1.8″

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “Sennheiser EW 100 G4 2-Person Camera-Mount Wireless Combo Microphone System Kit (A1: 470 to 516 MHz)”

There are no reviews yet.
