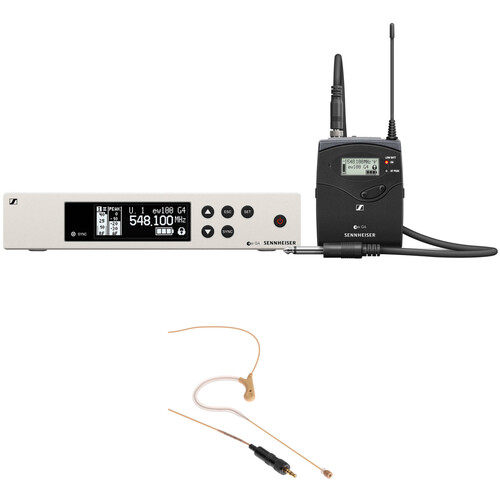

Sennheiser EW 100 G4-Ci1 Wireless Omni Earset Microphone System Kit with Senal UEM-155-35H Mic (Beige, G: 566 to 608 MHz)

Add to Wishlist

2,799.00 د.إ

Add to Wishlist
Key Features
  • For Presenters and Educators
  • Senal UEM-155-35H Omni Earset (Beige)
  • Lightweight Bodypack Transmitter
  • True-Diversity Rackmount Receiver

ThisĀ Sennheiser EW 100 G4-Ci1 Wireless Omni Earset Microphone System KitĀ fromĀ B&HĀ delivers intelligible, natural audio for presenters, educators, clergy, and lecturers working in business and educational settings, and houses of worship. It includes a beige Senal UEM-155-35H omnidirectional earset microphone optimized for speech. Also included is a Ci 1 instrument cable.

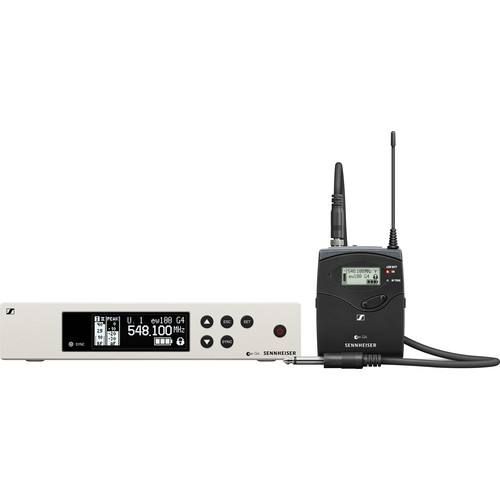

Sennheiser EW 100 G4-Ci1 Wireless Guitar System (G: 566 to 608 MHz)

TheĀ Sennheiser EW 100 G4-Ci1Ā is an easy-to-set-up rackmount wireless system that brings reliable high-quality, wireless sound to guitar and bass players performing in small to medium-sized venues including concert stages, houses-of-worship, theaters, and clubs.

The EW 100 G4-Ci1 features a true diversity, half-rack receiver housed in a rugged, full-metal chassis. The receiver’s auto-scan function searches a wide 42 MHz UHF tuning range with 1680 selectable frequencies available, seeking out a clean, interference-free channel for your audio transmission. The onboard guitar tuner is an added convenience for musicians.

This system includes a Ci 1 cable that connects your instrument to the lightweight bodypack transmitter. The transmitter provides up to 8 hours of operation on two AA batteries, with a fixed 30mW RF power output and a transmission range up to 330′. Up to 12 wireless channels can operate simultaneously in the same space, with the receivers linked together for fast, multi-channel frequency setup.

The EW 100 G4-Ci1 is backward-compatible with previous evolution systems. You can mix and match G4/G3/G2/G1 receivers or bodypack, handheld, and plug-on transmitters. It is also compatible with EW 300/500 systems.

Ci 1 Cable and Bodypack Transmitter for Freedom on Stage

The 4′ long Ci 1 cable connects the 1/4″ output of your guitar or bass to the bodypack transmitter’s locking 3.5mm input.The adjustable input sensitivity on the transmitter accommodates instruments with passive and active electronics, and even line-level audio.

The rugged, all-metal transmitter features a programmable mute function and can be locked out to prevent accidental changes during a performance. A backlit LCD displays essential information and provides fast menu access. The transmitter syncs to the receiver via infrared with a quick press on the Sync button.

The SK 100 G4 is powered via two AA batteries or a rechargeable BA 2015 Accupack battery (available separately). Side contacts allow for recharging the Accupack without removing it from the transmitterā€”requires the L 2015 quick-charging unit (available separately).

Easy-to-Operate Receiver with True-Diversity Reception

The robust, metal EM 100 receiver offers a high-contrast, black and white LCD. The display uses a streamlined menu system with a dedicated Escape button for quick menu navigation and shows battery status of the associated transmitter.The system features 20 fixed frequency banks with up to 12 compatible frequency presets and 1 user bank with up to 12 user-programmable frequencies.

To prevent interference, the EM 100 receiver’s true-diversity reception compares incoming signals on two independent receiver circuits to ensure optimal RF quality. To ensure crystal clear audio, Sennheiser’s proprietary HDX compander technology maximizes the microphone’s signal-to-noise ratio, while avoiding RF noise.

The built-in equalizer enables you to change the frequency response of the output signal; you can reduce the bass range and boost the treble range. The receiver also offers an adjustable output level range of 48 dB to match the audio input of your mixing board or PA system.

The back panel houses a balanced XLR output as well as an unbalanced 1/4″ output. A kit is included for rackmount installation. The unit comes with a universal power supply and EU, US, UK, Korea, Australia, and China adapters.

Fast Multi-Channel Setup for Expanded System

To simplify and speed up your workflow, two RJ10 data networking ports allow you to daisy-chain up to 12 receivers and quickly perform a frequency setup for the entire multi-channel system via the Easy Setup function.If you assign the frequencies manually, you can expand the setup to accommodate a maximum of 20 receivers. An RJ10 cable is included.

Enhance the Performance of Your System

The detachable antennas with BNC sockets allow you to create a larger system using up to four EM 100 receivers connected to a single pair of remote antennas. This setup requires the ASA 214 active antenna splitter (available separately).Adding a pair of A 1031-U omnidirectional antennas or a pair of A 2003 UHF directional antennas increases the range of your system and offers increased protection against interference.

Add Functionality to Your System

Sennheiser offers a variety of lavalier, headset, and handheld microphone options to adapt your EW system as your needs evolve.

  • The discrete ME 2-II and MKE 2 lavalier mics provide exceptional clarity in spoken word applications.
  • The lightweight ME 3-II headset mic provides exceptional clarity in spoken-word applications.
  • The SKM 100 handheld transmitter is available with three different mic capsule options for presenters and performers who prefer the flexibility of a handheld microphone.

UPC: 615104308688

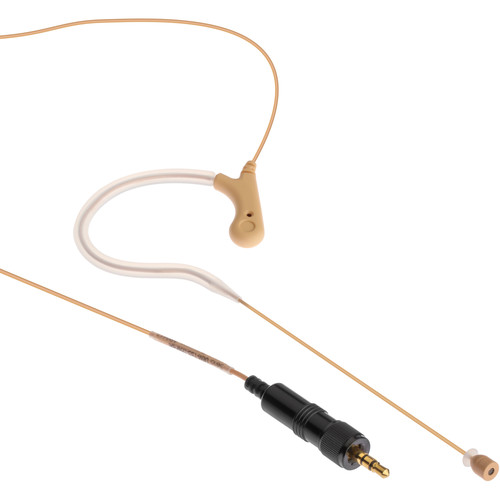

Senal UEM-155-35H-BE Omni Earset Microphone with 3.5mm Locking Connector for Sennheiser Transmitters (Beige)

The BeigeĀ UEM-155-35H-BE Omnidirectional Earset Microphone with 3.5mm Locking Connector for Sennheiser TransmittersĀ fromĀ SenalĀ is a low-profile, lightweight, and miniature hands-free microphone with a flexible boom arm that can be worn on either ear. It can be used to deliver rich, accurate, and natural-sounding audio in vocal and speech applications for theater performances, lectures, houses of worship, and more.

The adjustable ear loop comfortably conforms to your ear, and the boom can be precisely placed to deliver an accurate sound. The UEM-155 microphone capsule is optimized to capture rich and natural-sounding speech or vocals, and provides high gain before feedback. The microphone’s proximity to the mouth assures accuracy and clarity.

For Sennheiser Bodypack Transmitters

The UEM-155 features a 3.5mm Locking connector for connectivity with Sennheiser Bodypack Transmitters. The four-foot cable is long enough that it won’t restrict your movements while speaking or performing.

Speech and Vocals

The UEM-155 is optimized for the voice. It features a rich and natural sound, whether you’re speaking or singing. Proximity to the microphone limits volume fluctuations and assures that the mic is always in a suitable position to capture your voice.

Omnidirectional Polar Pattern

The miniature omnidirectional capsule ensures low sensitivity to vocal pops or plosives. Its accurate and natural sound eliminates the proximity effect, which can make your voice sound deep and boomy as you move closer to the microphone.

Low Profile

Thanks to the narrow mic boom, an earpiece that tucks neatly behind your ear, and the option of black or tan colors, the UEM-155 is inconspicuous and won’t be a distraction to your audience.

High Gain Before Feedback

The UEM-155 has been optimized to drastically reduce the possibility of feedback that can interrupt programs and performances. This microphone can tolerate high levels of amplification, so you can use it in large rooms or when performing on a loud, live stage environment.

Windscreen and Clothing Clip

For the quietest performance, the included windscreen minimizes unwanted noise from wind or moving air. The clothing clip affixes the mic cable to clothes and prevents handling or cable noise.
SKU: SEEW100G4C1K Category: Tag:

Sennheiser EW 100 G4-Ci1 Wireless Guitar System (G: 566 To 608 MHz)Ā Specs

System
Wireless Transmission Analog UHF
Number of RF Channels 1680
Included Transmitters 1 xĀ Bodypack
Diversity True Diversity
RF Frequency Band G:
566 to 608 MHz
RF Bandwidth 42 MHz
Frequency Step Size 25 kHz
Max Operating Range 330′ / 100.6Ā m (Line of Sight)
Max Systems per Setup 20
Deviation Ā±24 kHz (Peak)
Modulation Wideband FM
Receiver
Form Factor Tabletop
Mounting Options Rackmount (with Included Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 xĀ Rod, Detachable (Rear-Mount)
Number of Audio Channels 1
Audio I/O 1 xĀ XLR 3-Pin Male Balanced Output
1 xĀ 1/4″ TRS Female Unbalanced Output
Gain Range 48 dB (3 dB Steps)
Audio Output Level XLR Output:
+18 dBu (Balanced)
1/4″ Output:
+12 dBu (Unbalanced)
Network I/O 2 xĀ RJ10
Network Protocols Manual IP
Approximate RF Sensitivity 2.5 ĀµV
Squelch Adjustable, 5 to 25 dBĪ¼V
Adjacent Channel Isolation >65 dB
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 12 VDC at 300 mA (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 0.2 A
Display & Indicators 1 xĀ Backlit LCD (AF Level, Channel, Frequency, Mute, RF Level, Transmitter Battery Status)
Housing Metal
Operating Temperature 14 to 131Ā°F / -10 to 55Ā°C
Dimensions 8.3 x 1.7 x 7.5″ / 212 x 43 x 190Ā mm
Weight 2.2Ā lb / 980Ā g
Transmitter 1
Transmitter
Form Factor Bodypack
RF Output Power 30 mW
Audio I/O 1 xĀ 1/8″ / 3.5 mm TRS Female Input (Lockable)
Included Cable Connector 1/4″ TS
Muting Mute Switch
Audio Input Level 3 V RMS
Gain Range 60 dB (3 dB Steps)
Frequency Response 80 Hz to 18 kHz (Mic)
25 Hz to 18 kHz (Line)
Sync Method IR
Antenna 1 xĀ Flexible Whip, Fixed (Beltpack)
Power Requirements Battery
Battery Type 2 xĀ AA (Included)
1 xĀ Sennheiser Accupack (Not Included, Replaceable)
Approx. Battery Life 8 Hours (Alkaline)
Display & Indicators 1 xĀ Backlit LCD (Audio Level, Battery Status, Channel, Group, Mute, Signal Strength)
Housing Metal
Operating Temperature 14 to 131Ā°F / -10 to 55Ā°C
Dimensions 2.5 x 3.2 x 0.9″ / 64 x 82 x 24Ā mm
Weight 5.6Ā oz / 160Ā g (with Batteries)
Microphone
General
Packaging Info
Package Weight 6.35 lb
Box Dimensions (LxWxH) 16 x 13.8 x 3″

Senal UEM-155-35H-BE Omni Earset Microphone With 3.5mm Locking Connector For Sennheiser Transmitters (Beige)Ā Specs

Microphone
Sound Field Mono
Capsule Electret Condenser
Polar Pattern Omnidirectional
Performance
Frequency Range 50 Hz to 18 kHz
Impedance 1.5 Kilohms Ā± 30% at 1 kHz
Sensitivity -60 dB
Connectivity
Output Connector 1/8″ / 3.5 mm Locking
Cable Length 4′ / 1.22Ā m
Power
Operating Voltage 1 to 10 V
Physical
Length 6″ / 152.40Ā mm
Diameter 0.2″ / 5.08Ā mm
Weight 0.3Ā oz / 8.51Ā g
Packaging Info
Package Weight 0.315 lb
Box Dimensions (LxWxH) 6.45 x 4.6 x 0.95″
