Sennheiser SpeechLine Digital Wireless Microphone Set with 153-S DW Stand, MEG 14-40-L-II B Microphone, and DW Receiver (US)

Add to Wishlist

AED7,599.00

Add to Wishlist

Sennheiser SL TS 153 GN-L SET DW-4 USĀ Overview

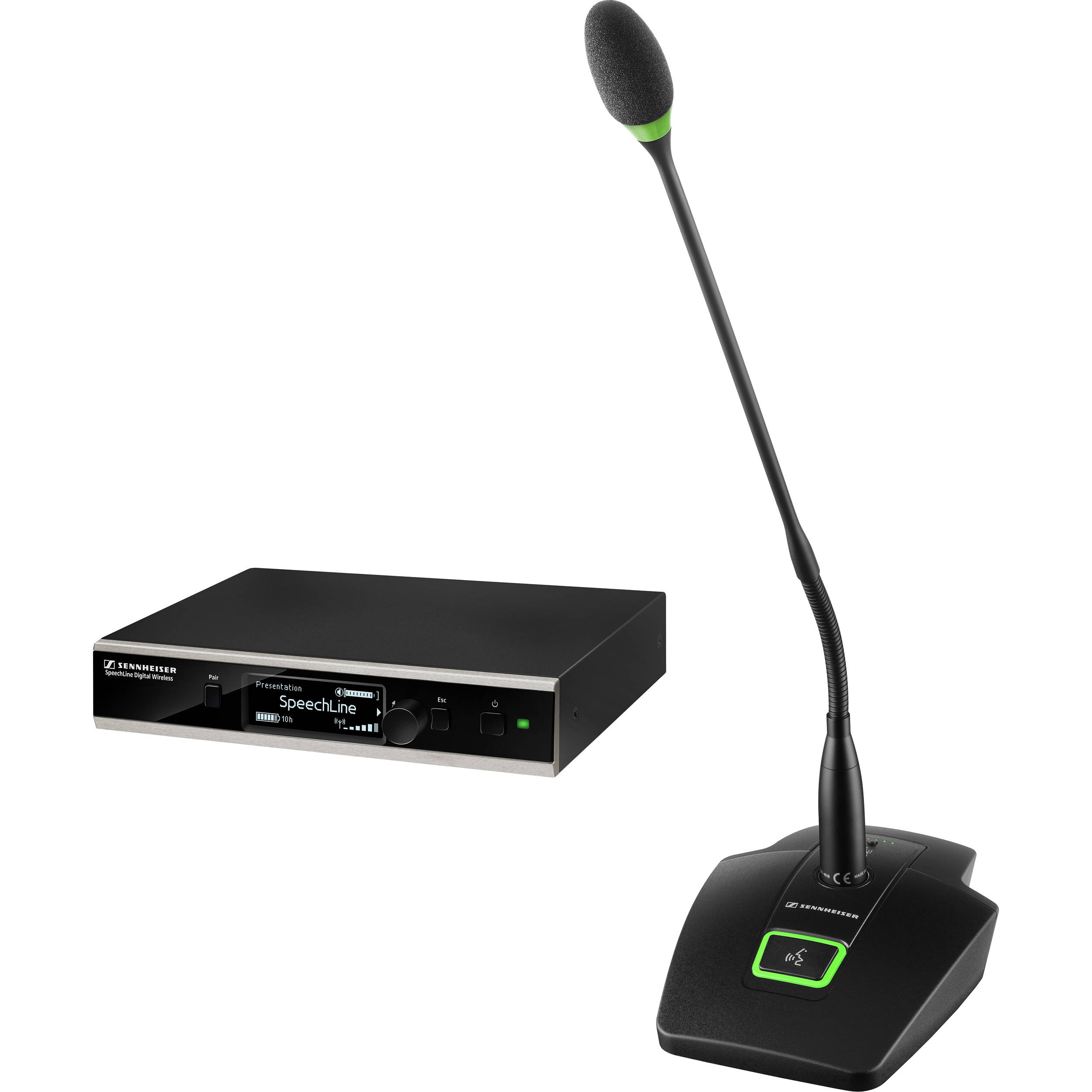

TheĀ SpeechLine Digital Wireless Microphone SetĀ fromĀ SennheiserĀ includes an SL Table Stand 153-S DW, a MEG 14-40-L-II B gooseneck microphone with integrated LED ring, an SL Rack Receiver DW with power supply, a BA 40 rechargeable battery, and a rackmount kit. Optimized for speech transmission, this flexible wireless set offers speech intelligibility and ease of use for meeting participants, in conference rooms, offices, and huddle rooms.

The table stand features a 5-pin XLR port for connecting to the gooseneck microphone; it connects wirelessly to the receiver and can be charged wirelessly or via included USB cable. The rechargeable battery allows up to 10 hours of operation and an LED provides battery life status. The receiver features a clear visible OLED display for easy setup and operation. The automatic frequency and interference management allows convenient and reliable operation. The microphone set can be controlled and monitored remotely via the Sennheiser Control Cockpit software (available separately).

SKU: SL TS 153 GN-L SET DW-4 US Category: Tag:
Weight 0.100 kg

Sennheiser SL TS 153 GN-L SET DW-4 USĀ Specs

System
AF Frequency Response 20 Hz to 20 kHz
Dynamic Range > 120 dB
THD 0.1% at 1 kHz
Audio Sampling 24-bit / 48 kHz
Signal to Noise Rate > 90 dB
Encryption AES 256
RF Frequency Range US: 1920 to 1930 MHz
Modulation GFSK with back channel
Transmission Method TDMA, space diversity
Latency 19 ms
Relative Humidity 95% maximum
Operating Temperature 14 to 131Ā°F / -10 to 55 Ā°C
Storage Temperature -4 to 158Ā°F / -20 to 70Ā°C
Receiver
RF Sensitivity < -90 dBm
RF Output Channels Adaptive, up to 250 mW (country-specific)
Audio Output Level XLR Balanced: Maximum +18 dBu
RCA Unbalanced: Maximum +6 dBu
Audio Effects Low Cut: -3 dB at 120 Hz
Equalizer: 7-band graphic equalizer with sound presets
Sound Profiles: Female voice, male voice, and media
Display OLED
Network Protocol Media Control Protocol, TCP/IP IPv4 (DHCP, manual)/IPv6
Power Supply 12 VDC
Current Consumption 350 mA
Connectors 1 x XLR
2 x RCA
2 x reverse SMA
1 x RJ45
1 x power
Dimensions 8.4 x 1.7 x 6.6″ / 21.2 x 4.3 x 16.8 cm
Weight 29 oz / 828 g
Power Supply
Nominal Input Voltage 100 to 240 VAC
Power Frequency 50 or 60 Hz
Input Current Maximum 120 mA
Power Consumption Standby: ā‰¤ 0.3 W
Operating Temperature 14 to 131Ā°F / -10 to 55Ā°C
Storage Temperature -4 to 158Ā°F / -20 to 70Ā°C
Relative Humidity 95%
Dimensions Not specified by manufacturer
Weight Approx. 3.5 oz / 100 g
Stand
AF Frequency Response 75 Hz to 20 kHz
Max Input 1.7 V RMS
Input Impedance 30 kOhms
Power Supply BA 40 accupack
Operating Time Up to 10 hours
Microphone Connector 5-pin XLR
Operating Temperature 50 to 113Ā°F / 10 to 45Ā°C
Relative Humidity 95%
Dimensions 6.6 x 4.7 x 1.9″ / 16.7 x 12.0 x 4.8 cm
Weight 23 oz / 660 g without battery
Battery
Model BA 40
Capacity 2200 mAh
Output Voltage 3.6 V
Microphone
Pick Up Pattern Cardioid
Frequency Response 50 Hz to 20 kHz
Acoustic Principle Gooseneck microphone (condenser)
Output Impedance < 100 Ohms at 1 kHz
Sensitivity 15 mV/Pa
Maximum Sound Pressure Level (SPL) 130 dB at 1 kHz < 3%
Equivalent Noise Level 37 dB (CCIR)
26 dB (A)
Power Supply Microphone: 12 to 48 V phantom power
Signal Light Ring: 12 to 30 VDC, 1-18 mA, green LED
Current Consumption 3 mA
Connector 5-pin XLR
Operating Temperature 32 to 104Ā°F / 0 to 40Ā°C
Storage Temperature -13 to 158Ā°F / -25 to 70Ā°C
Length 18.0″ / 45.7 cm
Packaging Info
Package Weight 7.65 lb
Box Dimensions (LxWxH) 16 x 13.8 x 2.9″
