Sennheiser TeamConnect SL Ceiling 2 Microphone Array with Extension Brackets

Add to Wishlist
Key Features
  • For Fixed Conference Installations
  • 28 Sennheiser KE 10-237 Mic Capsules
  • Automatic Beamforming Technology
  • Focuses on Whoever Is Speaking in Room
  • 2 x Dante Interface with RJ45 Outputs
  • 3-Pin Terminal for Analog Audio Output
  • RJ45 Ethernet for Network Control
  • Sennheiser Control Cockpit Software
  • Includes a 3-Pin Phoenix Connector
  • Includes Extension Bracket for Mounting

AED23,599.00

Add to Wishlist

Sennheiser TeamConnect SL Overview

The TeamConnect SL Ceiling 2 Microphone Array with Extension Brackets from Sennheiser is designed to provide better audio quality for voice and video conferences. This configuration of the system includes a set of extension brackets that allows for a flush-mount ceiling installation of the microphone, providing a low-profile appearance.

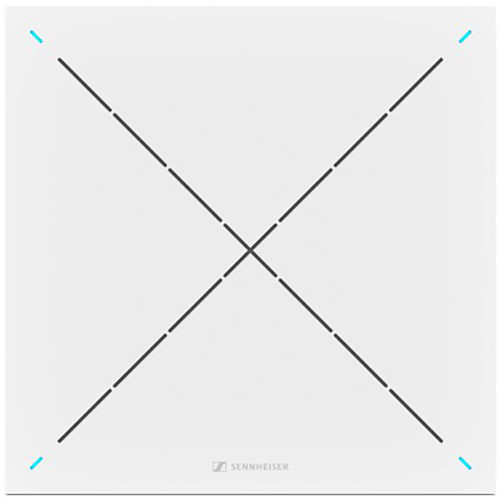

Sennheiser TeamConnect SL Ceiling 2 Microphone Array

The TeamConnect SL Ceiling 2 Microphone Array from Sennheiser is designed to provide better audio quality for voice and video conferences. It features adaptive beamforming technology that automatically follows the active speaker’s voice, letting people speak naturally whether they are sitting, standing, or walking around the room.

TeamConnect Ceiling 2 offers great versatility and interoperability with support for Dante networks and POE (Power over Ethernet). It is compatible with Sennheiser’s Control Cockpit software for efficient remote management and offers remote configuration and monitoring via an open media control protocol (API), allowing for easy integration into media systems. A 3-pin Phoenix connector and eight self-adhesive rubber feet are also included.

Ceiling microphone array with patented automatic speaker position detection and dynamic beamforming for best speech intelligibility
Analog and digital (Dante) audio outputs for easy connectivity to video and audio conference systems
Configuration and monitoring via Sennheiser´s Control Cockpit software
Open API for media and camera control applications
Several installation options via suspension kit, flush mount or surface bracket (sold separately)
Sennheiser SL CM EB US Extension Brackets

The SL CM EB US Extension Brackets from Sennheiser is an accessory for the TeamConnect Ceiling Mic 2 (sold separately). It allows the ceiling mic to be installed flush mount in a 2′ ceiling grid and extends the housing size from 1.94 to 1.98′. It includes four metal angle brackets, and four housing screws.

SKU: 509178 E Category:

Sennheiser TeamConnect SL Ceiling 2 Microphone Array Specs

Audio Output 1 x 3-Pin Terminal (Fits Phoenix Contact MCVW 1.5-3-ST-3.81)
2 x Digital Dante Network Audio
(RJ-45 Primary and Secondary)
Ethernet Control 1 x RJ-45 Ethernet Port for PoE Power Supply and Data/Control Communication
Supply Voltage 44 to 57 VDC
PoE IEEE 802.3af Class 3
Power Consumption Maximum 8.8 W
Plenum Rating Tested According to UL 2043
Transducer Principle Pre-Polarized Condenser Microphone
AF Frequency Response 160 Hz to 18 kHz
Sensitivity 0 dBV/Pa (988 mV/Pa)
Signal to Noise Ratio 83 dB (A)
Latency 4 ms
Equivalent Noise Level 11 dB (A)
Polar Pattern (Microphone) 28 Capsules
Pick Up Pattern Beam Pattern
Max Sound Pressure 104 dB SPL
Dynamic Range 93 dB (A)
Temperature Operation: 32 to 104°F / 0 to 40°C
Storage: 14 to 140°F / -10 to 60°C
Humidity (Relative) 20 to 95% Non-Condensing
Dimensions 23.2 x 23.2 x 1.7″ / 59 x 59 x 4.3 cm
Weight 12.5 lb / 5.7 kg
Packaging Info
Package Weight 18.73 lb
Box Dimensions (LxWxH) 27.4 x 27.4 x 5.3″

Sennheiser SL CM EB US Extension Brackets Specs

Compatible with Sennheiser TeamConnect Ceiling Mic 2
Dimensions Not Specified by Manufacturer
Weight Not Specified by Manufacturer
Packaging Info
Package Weight 3.885 lb
Box Dimensions (LxWxH) 25.2 x 4.3 x 3″
