Sennheiser XSW 1-908-A UHF Wireless Brass Set with e908T Gooseneck Mic (A: 548 to 572 MHz)

Add to Wishlist

1,799.00 د.إ

Add to Wishlist
Key Features
  • SK-XSW Bodypack Transmitter
  • EM-XSW 1 UHF Receiver

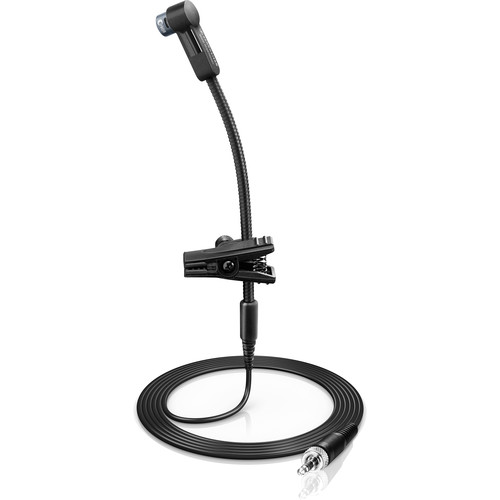

  • e908T Gooseneck Microphone
  • Antenna-Switching Diversity Reception
  • Automatic Frequency Management
  • Selectable UHF Frequencies
  • Up to 10 Compatible Channels
  • Integrated Antennas
  • Includes NT 12-5 CW Power Supply
  • Includes 2 x AA Batteries

Sennheiser XSW 1-908Ā Overview

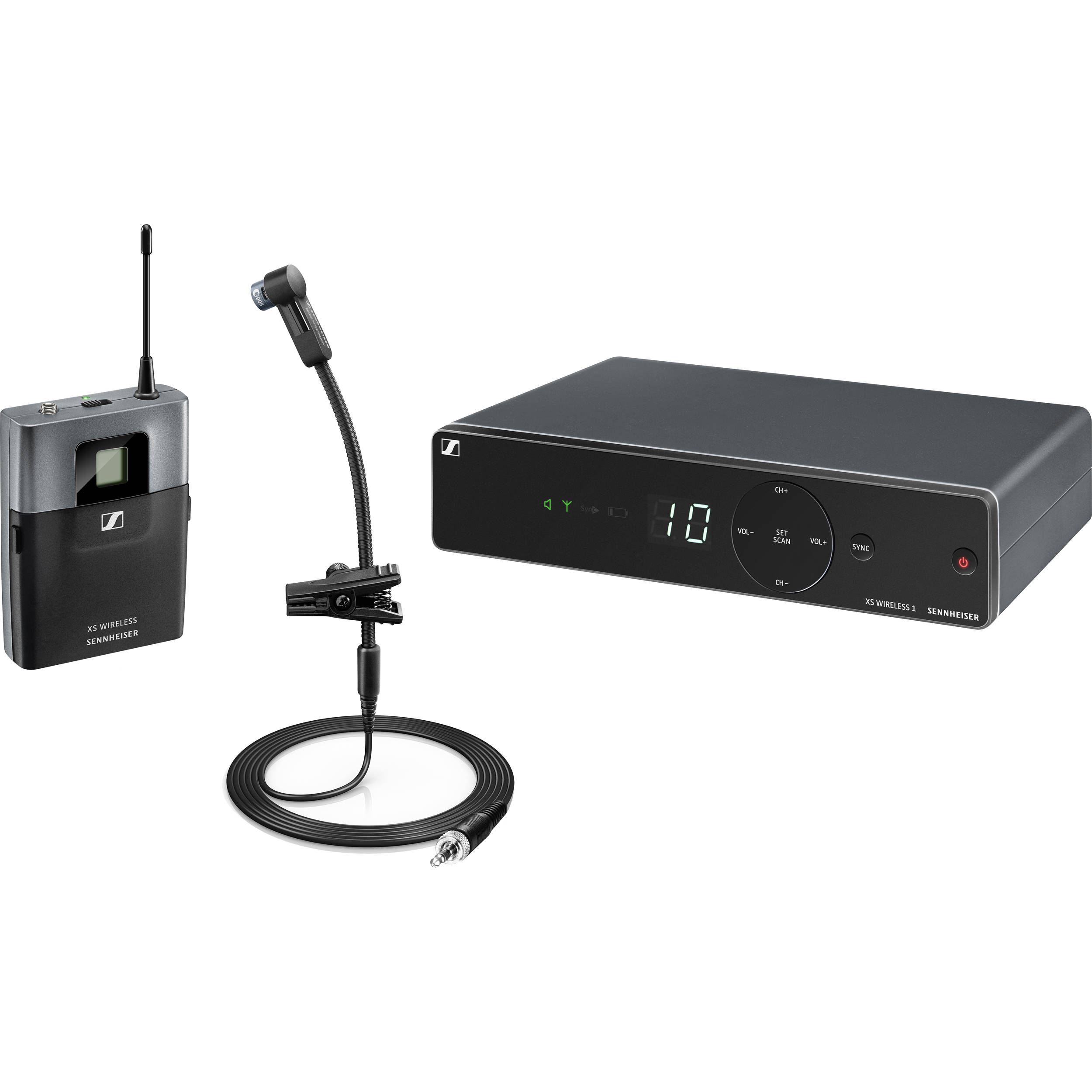

TheĀ XSW 1-908-A UHF Wireless Brass Set with e908T Gooseneck MicĀ fromĀ SennheiserĀ is an easy to use all-in-one wireless system for brass and woodwind instruments. It can be used in live sound applications, allowing freedom of movement for live stage, theater, rehearsals, and more.

The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an e908T cardioid gooseneck microphone. It is built with antenna-switching diversity reception and features automatic frequency management and synchronization via remote channel. Up to 10 compatible channels are available. Additionally, an AC power adapter and two AA batteries are also included.

Selectable UHF frequencies within a large bandwidth
Up to 10 compatible channels
Diversity reception
SKU: XSW 1-908-A Category: Tag:

Sennheiser XSW 1-908Ā Specs

Microphone
Type Condenser
Polar Pattern Cardioid
Total Harmonic Distortion (THD) ā‰¤ 0.9%
System
Modulation Wideband FM
Frequency Range A: 548 to 572 MHz
Switching Bandwidth Up to 24 MHz
Signal to Noise Ratio ā‰„ 103 dBA
Total Harmonic Distortion ā‰¤ 0.9%
Temperature Range Operation: 32 to 104Ā°F (0 to +40Ā°C)
Storage -4 to 158Ā°F (-20 to 70Ā°C)
Transmitter Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization)
Receiver
Principle Double superheterodyne
Diversity Antenna switching diversity via internal antennas
Sensitivity < 3 Ī¼V at 52 dBA RMS S/N (at peak deviation)
Frequency Response 50 Hz to 16 kHz (-3 dB)
Max Output Voltage At Peak Deviation, 1 kHz AF

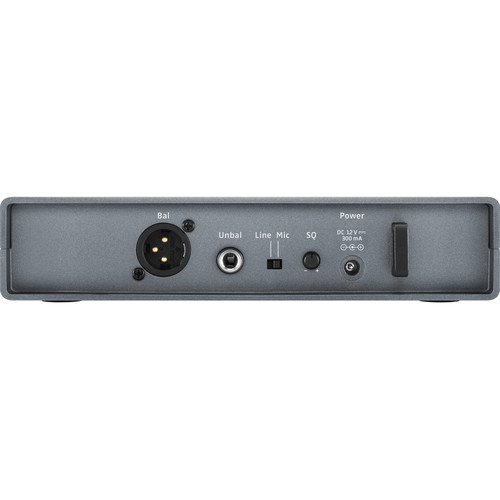

1/4″ (6.3 mm) Jack Socket (unbalanced): +6 dBu
XLR Socket (balanced): +12 dBu
Adjustment Range Audio: 45 dB, adjustable in 5-dB steps
Power Supply 12 VDC nominal/300 mA
Squelch Adjustable from 3 dBĪ¼V to 28 dBĪ¼V (combined with pilot tone)
Line/Mic Level 20 dB, switchable
Material of Construction ABS housing
Dimensions (W x H x D) 7.9 x 1.7 x 5.0″ (200 x 42 x 127 mm)
Weight 12 oz (340 g)

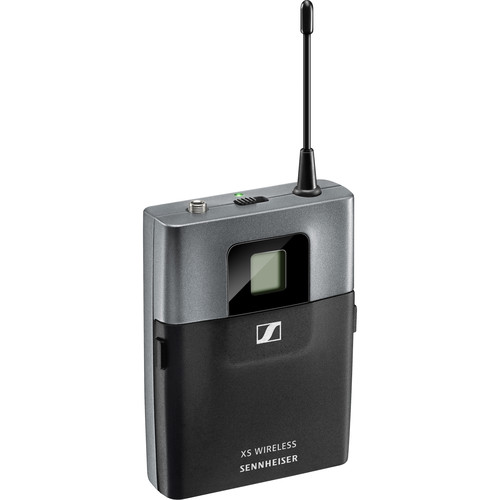

Bodypack Transmitter
Output Power 10 mW
Frequency Response Line: 50 Hz to 16 kHz
Mic: 50 Hz to 16 kHz
Audio Input 1/8″ (3.5 mm) jack socket
Input Voltage Mic/Line at 3% THD: Typ. 1.V RMS mic / typ. 2.6 V RMS line at -30 dB gain
Power Supply 2 x AA batteries, 1.5 V
Operating Time Approximately 10 hours
Adjustment Range Transmitter Sensitivity: 0 to -30 dB, adjustable in 10 dB steps
Material of Construction Rugged ABS housing
Dimensions (W x H x D) 2.8 x 3.8 x 1.1″ (71 x 96 x 28 mm)
Weight 3.4 oz (95 g)
Packaging Info
Package Weight 2.95 lb
Box Dimensions (LxWxH) 13.6 x 13.5 x 3.5″
