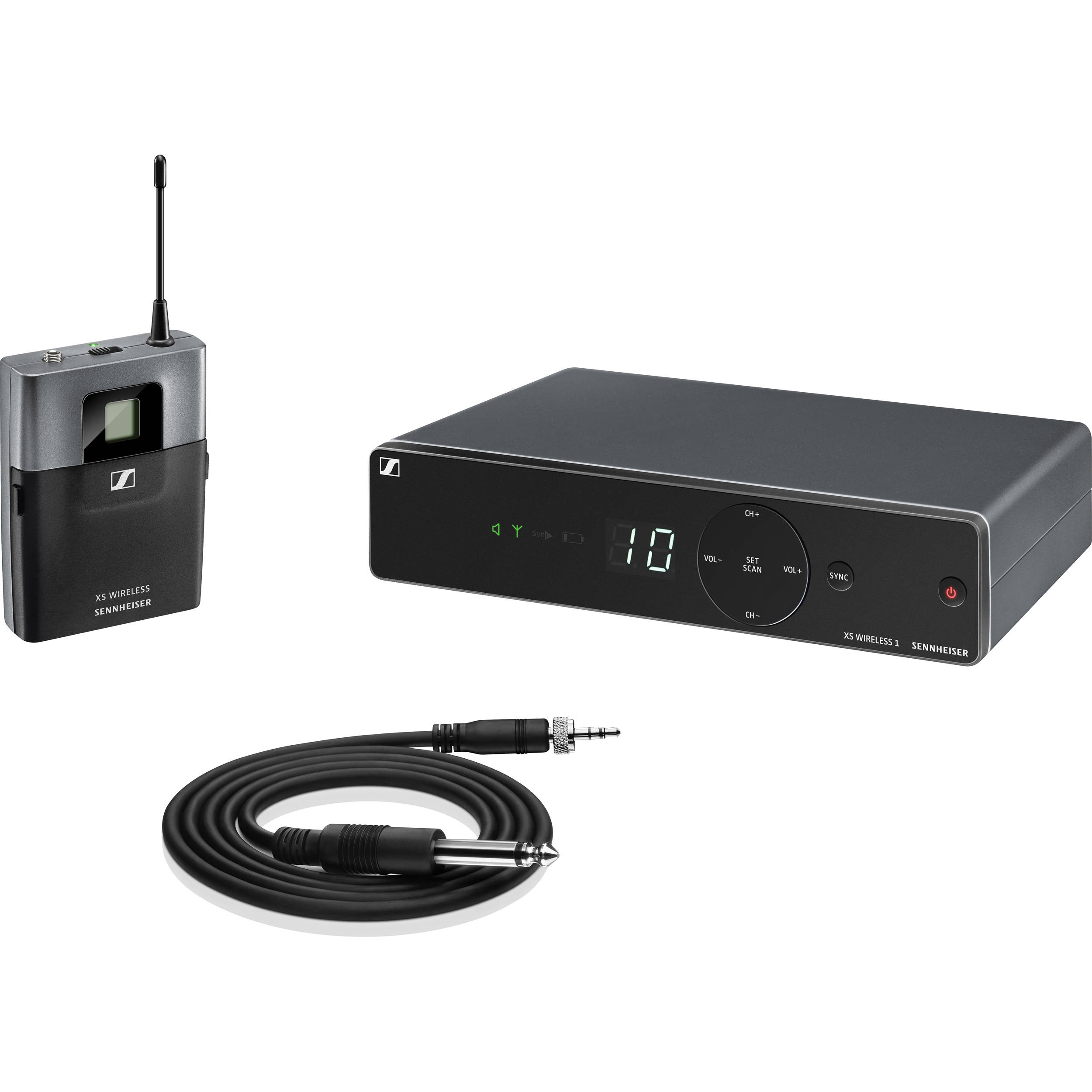

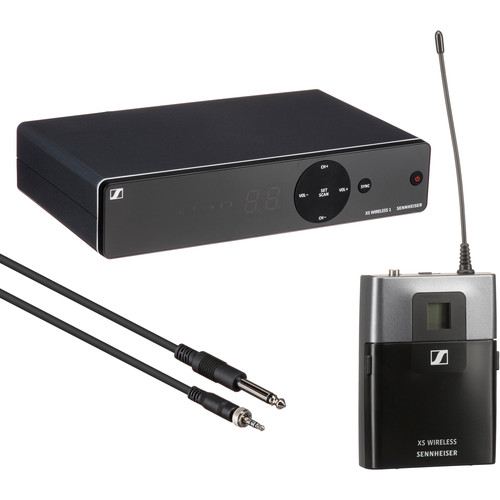

Sennheiser XSW 1 CI1-A UHF Instrument Set (A: 548 to 572 MHz)

Add to Wishlist

AED1,299.00

Add to Wishlist
Key Features

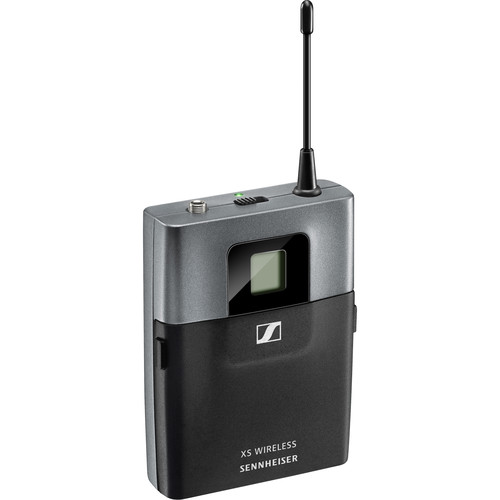

  • SK-XSW Bodypack Transmitter

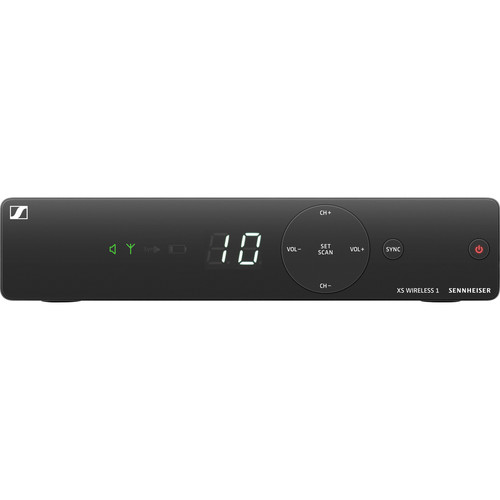

  • EM-XSW 1 UHF Receiver
  • Antenna-Switching Diversity Reception
  • Automatic Frequency Management
  • Selectable UHF Frequencies
  • Up to 10 Compatible Channels
  • Integrated Antennas

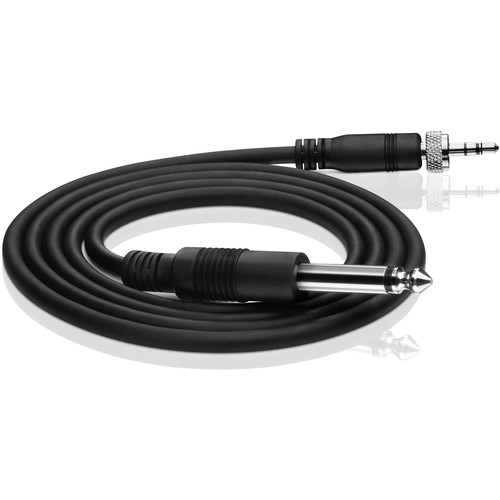

  • Includes 1/8″ to 1/4″ Instrument Cable
  • Includes NT 12-5 CW Power Supply
  • Includes 2 x AA Batteries

Sennheiser XSW 1-CI1Ā Overview

TheĀ XSW 1 CI1-A UHF Instrument SetĀ fromĀ SennheiserĀ is an easy to use all-in-one wireless system for guitarists and bassists. It can be used for live sound applications to free the performer from instrument cables, which connect to a power amp or mixer.

The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and a 1/4″ instrument cable. It is built with antenna-switching diversity reception and features automatic frequency management and synchronization via remote channel. Up to 10 compatible channels are available. Additionally, an AC power adapter and two AA batteries are also included.

Selectable UHF frequencies within a large bandwidth
Up to 10 compatible channels
Diversity reception
SKU: XSW 1-CI1-A Category: Tag:

Sennheiser XSW 1-CI1Ā Specs

System
Modulation Wideband FM
Frequency Range A: 548 to 572 MHz
Switching Bandwidth Up to 24 MHz
Signal to Noise Ratio ā‰„ 103 dBA
Total Harmonic Distortion ā‰¤ 0.9%
Temperature Range Operation: 32 to 104Ā°F (0 to +40Ā°C)
Storage -4 to 158Ā°F (-20 to 70Ā°C)
Transmitter Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization)
Receiver
Principle Double superheterodyne
Diversity Antenna switching diversity via internal antennas
Sensitivity < 3 Ī¼V at 52 dBA rms S/N (at peak deviation)
Frequency Response 50 Hz to 16 kHz (-3 dB)

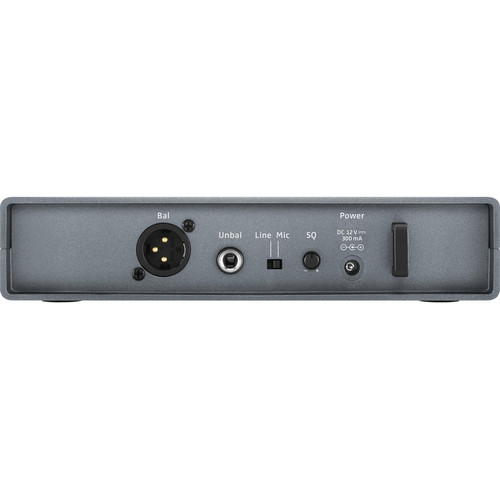

Max Output Voltage At Peak Deviation, 1 kHz AF
1/4″ (6.3 mm) Jack Socket (unbalanced): +6 dBu
XLR Socket (balanced): +12 dBu
Adjustment Range Audio: 45 dB, adjustable in 5-dB steps
Power Supply 12 VDC nominal, 300 mA
Squelch Adjustable from 3 dBĪ¼V to 28 dBĪ¼V (combined with pilot tone)
Line/Mic Level 20 dB, switchable
Material of Construction ABS housing
Dimensions (W x H x D) 7.9 x 1.7 x 5.0″ (200 x 42 x 127 mm)
Weight 12 oz (340 g)
Bodypack Transmitter
Output Power 10 mW
Frequency Response Line: 50 Hz to 16 kHz
Mic: 50 Hz to 16 kHz
Audio Input 1/8″ (3.5 mm) jack socket
Input Voltage Mic/Line at 3% THD: Typ. 1.V RMS mic / typ. 2.6 V RMS line at -30 dB gain
Power Supply 2 x AA batteries, 1.5 V
Operating Time Approximately 10 hours
Adjustment Range Transmitter Sensitivity: 0 to -30 dB, adjustable in 10 dB steps
Material of Construction Rugged ABS housing
Dimensions (W x H x D) 2.8 x 3.8 x 1.1″ (71 x 96 x 28 mm)
Weight 3.4 oz (95 g)
Packaging Info
Package Weight 2.72 lb
Box Dimensions (LxWxH) 13.75 x 13.6 x 3.35″
