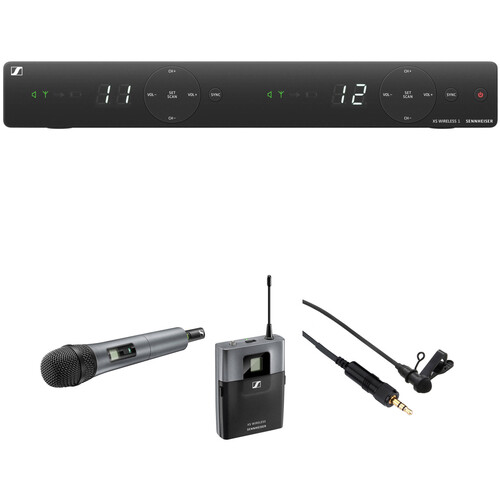

Sennheiser XSW 1 DUAL 2-Person Wireless Combo Microphone System Kit (A: 548 to 572 MHz)


2,799.00 د.إ

Key Features
  • For Singers and Presenters
  • Senal OLM-2 Omnidirectional Lav Mic
  • Bodypack Transmitter
  • e825 Dynamic Cardioid Capsule

Sennheiser XSW1Ā Overview

TheĀ Sennheiser XSW 1 DUAL 2-Person Wireless Combo Microphone System KitĀ fromĀ B&HĀ provides singers, presenters, educators, panelists, or moderators with an easy-to-use, cost-effective, and flexible solution for stage performances, public speaking, interviews, lectures, and more.

The kit offers a Senal OLM-2 omnidirectional lavalier mic with an SK-XSW bodypack transmitter for hands-free presentations. Also included is an SKM 825-XSW handheld transmitter with an e825 cardioid capsule, great for vocal performances or for passing the mic around in the audience.

The sleek, EM-XSW 1 DUAL two-channel tabletop receiver with built-in antennas and streamlined interface receives both mics at the same time.

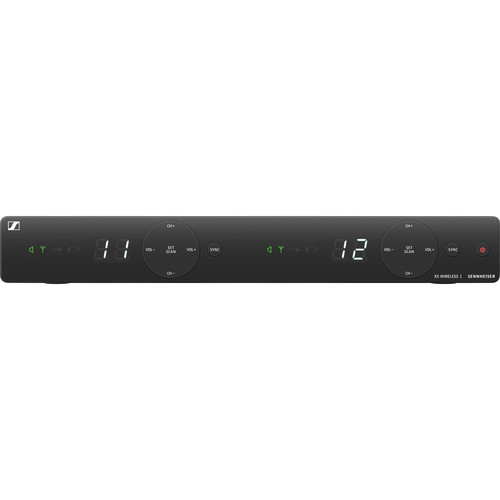

Sennheiser EM-XSW 1 Dual-Channel Stationary Receiver with Internal Antennas (A: 548 to 572 MHz)

TheĀ EM-XSW 1 Dual-Channel Stationary Receiver with Internal AntennasĀ fromĀ SennheiserĀ is a 2-channel analog UHF wireless receiver. It can be used for singers and presenters when paired with an XS wireless 1 series handheld transmitter and microphone capsule (sold separately). The dual-channel receiver is designed with ease of use in mind and is well suited for DJ, church, and school applications.

Each receiver channel is built with antenna-switching diversity reception and features automatic frequency management and synchronization via remote channel. Up to 10 compatible channels are available. Additionally, an AC power adapter is also included.

Antenna-switching 2-channel diversity reception
Integrated antennas
Automatic frequency management and synchronization via remote channel for easy setup
Selectable UHF frequencies within a large bandwidth
Up to 10 compatible channels

UPC: 615104315617

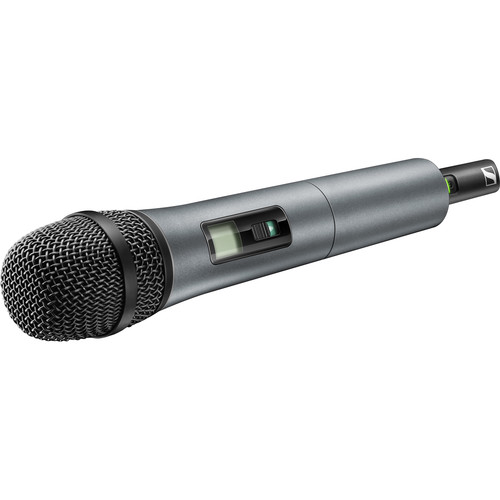

Sennheiser SKM 825-XSW-A Handheld Transmitter with e825 Capsule (A: 548 to 572 MHz)

TheĀ SKM 825-XSW-A Handheld TransmitterĀ fromĀ SennheiserĀ is a wireless microphone equipped with an e825 Dynamic Cardioid Capsule. It is designed to be paired with the EM-XSW 1 or EM-XSW 2 wireless receivers (sold separately) and can be used to capture audio for singers, presenters, and live sound applications. Featuring automatic frequency management, the transmitter offers up to 10 compatible channels in a stable UHF band.

This transmitter is built to withstand even the toughest stress in everyday on-stage use and offers reliable transmission with an easy-to-use set up. No matter whether you’re a band, a theater, or at a seminar, the SKM 825-XSW-A Handheld Transmitter lets you do your thing and not worry about channel selection.

Great Performance and Price

The SKM XSW transmitter lets you concentrate on your talent—and not the equipment. Just switch it on and its automatic frequency management does the rest. You can operate up to 10 coordinated frequency preset wireless connections.

Live Sound

The transmitter yields an open, natural sound. No lengthy set up—just go!

Reliable Transmission

On stage, you must put up with a lot of things—so does your equipment. XS Wireless 1 is built to last: Transmitters are designed to withstand even the toughest stress in everyday on-stage use.

UPC: 615104282063

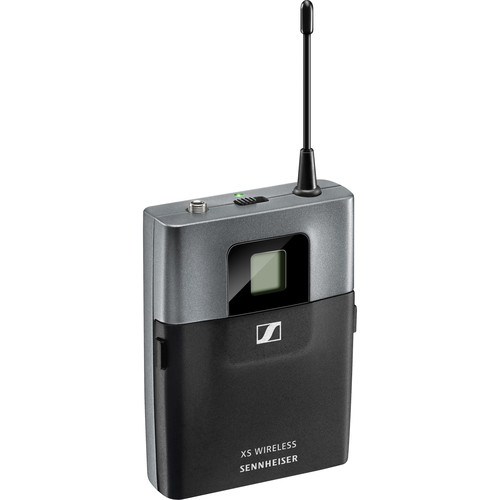

Sennheiser SK-XSW-A Bodypack Transmitter (A: 548 to 572 MHz)

TheĀ SK-XSW-A Bodypack TransmitterĀ fromĀ SennheiserĀ is designed to be paired with an EM-XSW1-A receiver (sold separately). It can be used to capture audio for live stage applications and features automatic frequency management, which offers up to ten coordinated frequency presets for wireless connections. The transmitter is sweat-resistant and can withstand even the toughest stress in everyday on-stage use.

Great Performance and Price

The XS Wireless 1 lets you concentrate on your talent—and not the microphone equipment. Just switch it on and its automatic frequency management does the rest. You can operate up to ten wireless connections simultaneously.

Live Sound

The transmitter yields an open, natural sound. No lengthy set up—just go!

Reliable Transmission

On stage, you must put up with a lot of things—so does your equipment. XS Wireless 1 is built to last: Transmitters are sweat-resistant and withstand even the toughest stress in everyday on-stage use.

UPC: 615104281998

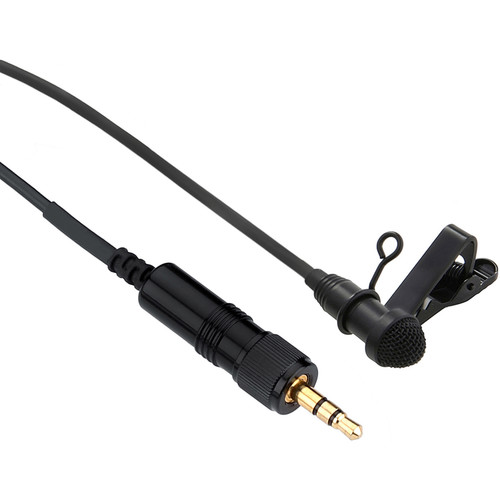

Senal OLM-2 Lavalier Microphone with 3.5mm Locking Connector for Sennheiser EW & Senal AWS-2000 Series

ThisĀ Senal OLM-2 Lavalier MicrophoneĀ is a high-performance lavalier microphone with a locking 3.5mm connector for Sennheiser EW and Senal AWS-2000 wireless transmitters. Its miniature, lightweight design allows for discrete placement without compromising sound quality. This versatile workhorse microphone is ideal for broadcast, video, and stage applications.

Utilizing a broadcast-quality electret condenser element, it features a smooth frequency response and a wide dynamic range. Its omnidirectional polar pattern enables 360° sound pickup, capturing a natural blend of voice and ambiance with low sensitivity to wind and handling noise, as well as to vocal plosives. In addition to being designed to connect to a Sennheiser or Senal bodypack transmitter, the OLM-2 can be combined with the Senal PS-48B Power Supply (sold separately) to operate on phantom or battery power, enabling it to plug into any XLR microphone input.

Gold-plated locking 3.5mm connector for Sennheiser EW and Senal AWS-2000 wireless transmitters
Metal windscreen reduces wind noise and vocal plosives
Tie clip for securing mic to clothing
16.3 x 6.5mm (length x diameter) head size

Sennheiser EM-XSW 1 Dual-Channel Stationary Receiver With Internal Antennas (A: 548 To 572 MHz)Ā Specs

System
Modulation Wideband FM
Switching Bandwidth Up to 24 MHz
Frequencies 80 factory presets (8 banks of 10 channels each)
Signal to Noise Rate ≄ 103 dBA
THD ≤ 0.9%
Temperature Range Operation: 32 to 104°F / 0 to 40°C
Storage: -4 to 158°F / -20 to 70°C
Transmitter Synchronization 2.4 GHz, low power OQPSK (only active during synchronization
Receiver
Receiver Type Double superheterodyne
Frequency Band (A: 548 to 572 MHz)
Diversity Method Antenna switching diversity via internal antennas
Sensitivity < 3 μV at 52 dB(A) rms S/N (at peak deviation)
AF Frequency Response 50 Hz to 16 kHz (-3 dB)
Maximum AF Output Voltage 1/4″ / 6.3 mm Socket (Unbalanced): +6 dBu
XLR Socket (Balanced): +12 dBu
Audio Adjustment Range 45 dB, adjustable in 5 dB steps
Power Supply 12 VDC nominal / 300 mA
Squelch Adjustable from 3 dB μV to 28 dB μV (combined with pilot tone)
Line/Mic Level 20 dB, switchable
Housing Material Rugged ABS housing
Dimensions (W x H x D) 12.6 x 5.0 x 1.7″ / 32.0 x 12.7 x 4.2 cm
Weight 21.9 oz / 620.0 g
Packaging Info
Package Weight 2.75 lb
Box Dimensions (LxWxH) 14.85 x 10.85 x 3.35″

Sennheiser SKM 825-XSW-A Handheld Transmitter With E825 Capsule (A: 548 To 572 MHz)Ā Specs

System
Modulation Wideband FM
Frequency Range A: 548 to 572 MHz
Switching Bandwidth Up to 24 MHz
Signal to Noise Ratio ≄ 103 dBA
Total Harmonic Distortion ≤ 0.9%
Temperature Range Operation: 32 to 104°F (0 to +40°C)
Storage -4 to 158°F (-20 to 70°C)
Transmitter Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization)
Microphone
Output Power 10 mW
Frequency Response 80 Hz to 14 kHz
Power Supply 2 x AA batteries, 1.5 V
Operating Time Approximately 10 hrs.
Microphone Type Dynamic
Polar Pattern Dynamic cardioid
Input Sensitivity Capsule: 1.5 mV/Pa
Adjustment Range Transmitter Sensitivity: 0 to -30 dB, adjustable in 10 dB steps
Material of Construction Rugged ABS housing
Dimensions (L x Diam) 10 x 2.0″ (260 x 50 mm)
Weight 8.6 oz (245 g)
Packaging Info
Package Weight 1.78 lb
Box Dimensions (LxWxH) 11.05 x 10 x 3.3″

Sennheiser SK-XSW-A Bodypack Transmitter (A: 548 To 572 MHz)Ā Specs

System
Modulation Wideband FM
Frequency Range A: 548 to 572 MHz
Switching Bandwidth Up to 24 MHz
Frequencies 8 frequency banks, each with up to 10 factory-preset channels
Signal to Noise Ratio ≄ 103 dBA
Total Harmonic Distortion ≤ 0.9%
Temperature Range Operation: 32 to 104°F (0 to +40°C)
Storage -4 to 158°F (-20 to 70°C)
Transmitter Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization)
Bodypack Transmitter
Output Power 10 mW
Frequency Response Line: 50 Hz to 16 kHz
Mic: 50 Hz to 16 kHz
Audio Input 1/8″ (3.5 mm) jack socket
Input Voltage Mic/Line at 3% THD: Typ. 1.V RMS mic / typ. 2.6 V RMS line at -30 dB gain
Power Supply 2 x AA batteries, 1.5 V
Operating Time Approximately 10 hours
Adjustment Range Transmitter Sensitivity: 0 to -30 dB, adjustable in 10 dB steps
Material of Construction Rugged ABS housing
Dimensions (W x H x D) 2.8 x 3.8 x 1.1″ (71 x 96 x 28 mm)
Weight 3.4 oz (95 g)
Packaging Info
Package Weight 1.345 lb
Box Dimensions (LxWxH) 11 x 9.95 x 3.3″

Senal OLM-2 Lavalier Microphone With 3.5mm Locking Connector For Sennheiser EW & Senal AWS-2000 SeriesĀ Specs

Transducer Electret condenser
Polar Pattern Omnidirectional
Frequency Response 50 Hz to 20 kHz
Sensitivity -63 dB ±3 dB (0 dB = 1 v/microbar @ 1 kHz)
Impedance 15,000 Ω ±30% @ 1 kHz
Operating Voltage 1 – 10 VDC
Connector Gold-plated 1/8″ (3.5 mm) locking connector jack
Cable Length 5.3′ (1.6 m)
Head Diameter 0.3″ (6.5 mm)
Head Length 0.6″ (16.3 mm)
Total Weight 1 oz (28.3 g)
Packaging Info
Package Weight 0.3 lb
Box Dimensions (LxWxH) 10.4 x 4 x 1.25″
