Sennheiser XSW-D PORTABLE ENG SET Digital Camera-Mount Wireless Combo Microphone System with Case Kit (2.4 GHz)

Add to Wishlist

2,299.00 د.إ

Add to Wishlist
Key Features
  • Plug & Record Set for Vlogger
  • ME 2-II Omnidirectional Lav Mic
  • Miniature Bodypack Transmitter
  • Miniature Plug-On Transmitter
  • Miniature Camera-Mount Receiver
  • SKB iSeries Waterproof Case
  • Protected Peer-to-Peer Connection
  • Easy to Use, 1-Button Operation
  • 5-Hr Rechargeable Batteries + USB Power
  • Up to 5 Mics on Set / 250′ Range

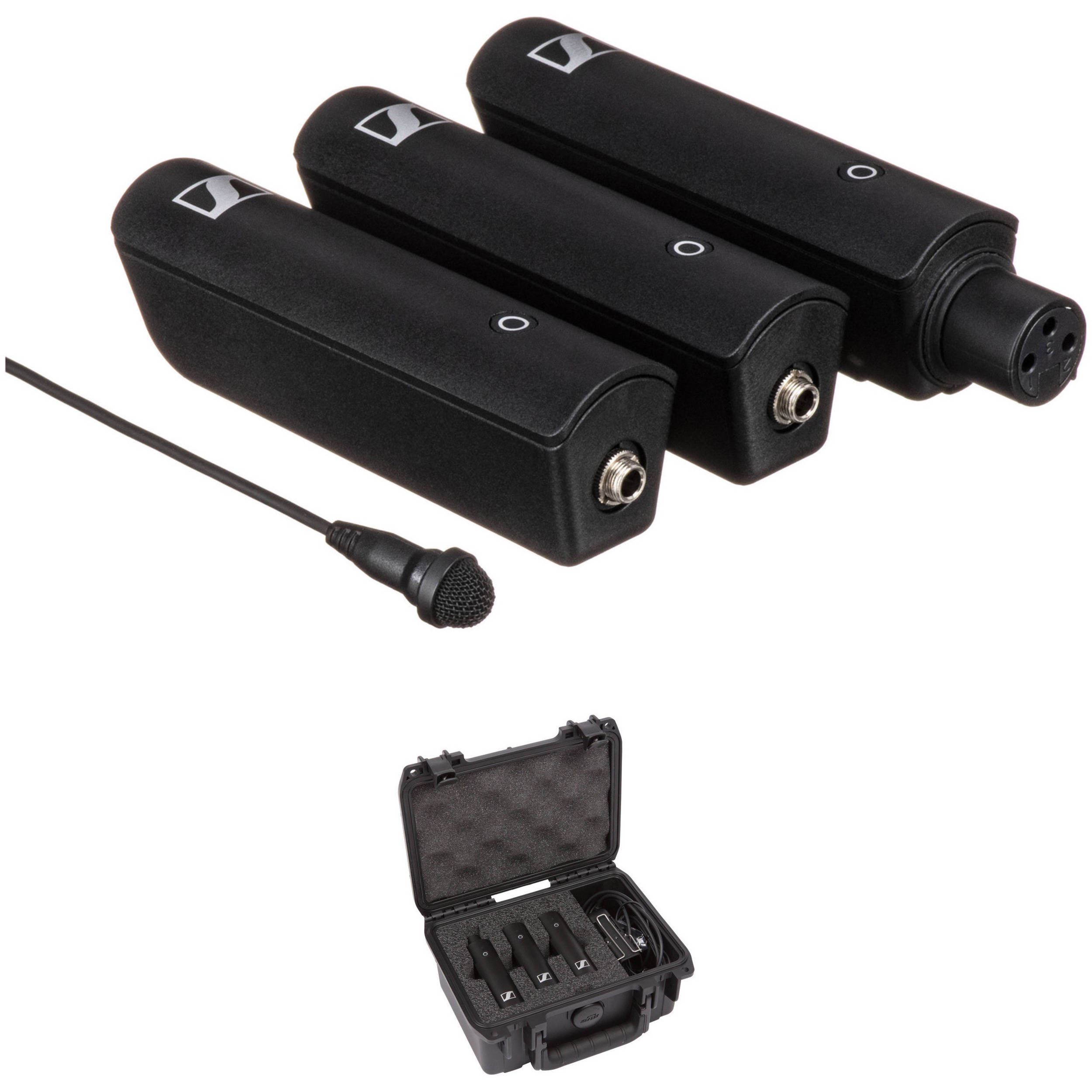

The kit comprises a miniature bodypack transmitter with an ME 2-II omnidirectional lavalier microphone, a miniature plug-on transmitter, a miniature camera-mount receiver, and a cable to connect to your DSRL or mirrorless camera—creating a plug-and-record, wireless solution for dialog, speech, and interviews.

Sennheiser XSW-D PORTABLE ENG SET Digital Camera-Mount Wireless Combo Microphone System (2.4 GHz)

The Sennheiser XSW-D PORTABLE ENG SET is an easy entry point into the world of wireless microphone audio for vloggers, video shooters, and mobile journalists looking for a camera-mount system that’s cost effective, as well as quick and simple to use. It puts world-renowned Sennheiser sound quality in a plug-and-record, 1-button digital system that anyone can operate. Plug it in, power it up, and you’re immediately up and running, instantly lightening your workload so you can concentrate on creating.

The XSW-D PORTABLE ENG SET is the choice where utmost flexibility is key. This set comes with a bodypack transmitter and the highly popular ME 2-II omnidirectional lavalier microphone. Also included is a plug-on transmitter which can be attached to a handheld microphone of your choice for man-on-the-street interviews or to a shotgun mic for booming (both types of mics are available separately).

The camera-mount receiver connects to a DSLR, camcorder, or a tablet/smartphone (with additional adapter) to capture crisp-sounding interviews or dialog for video shoots.

Note: While this system includes two transmitters, only one can be used at a time.

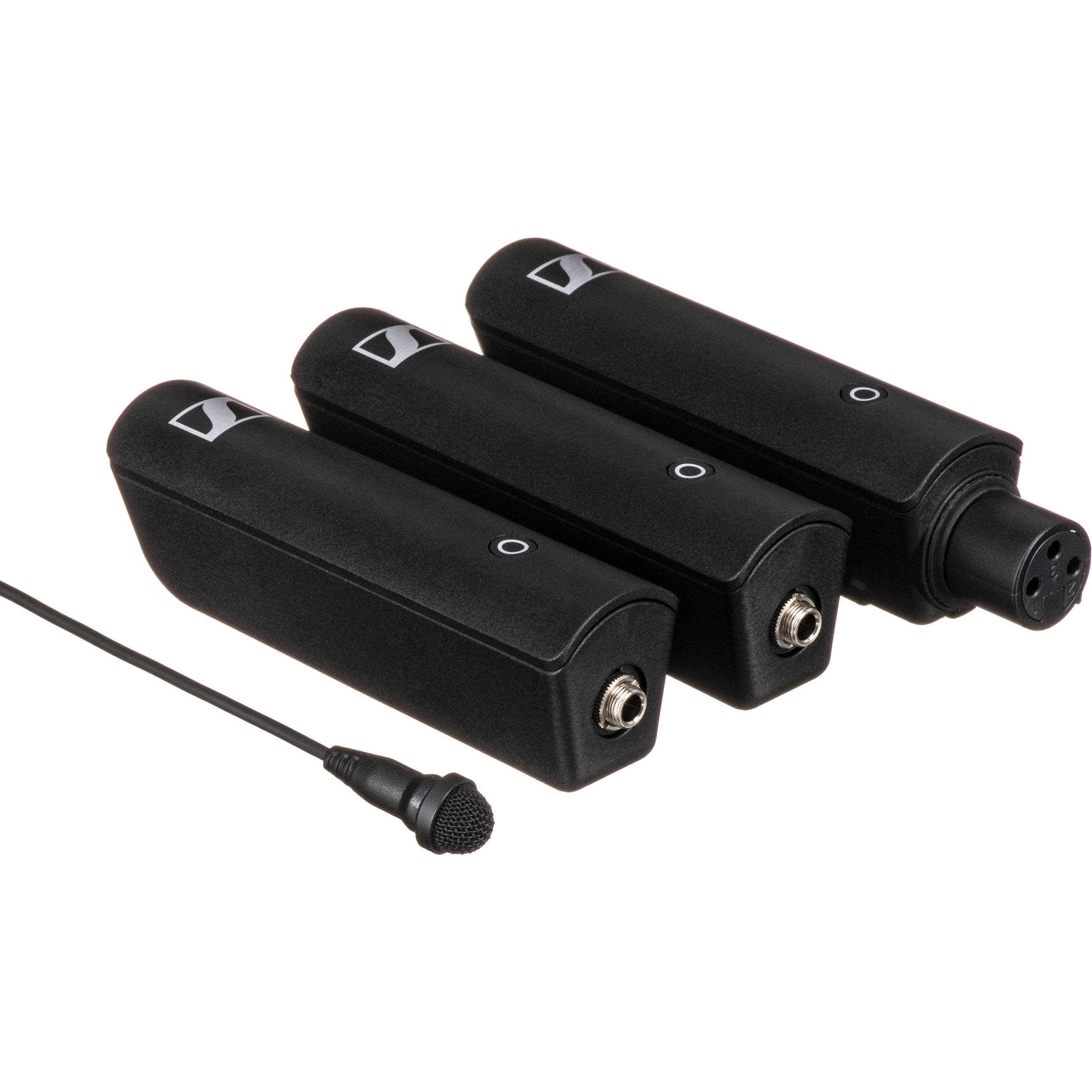

Unboxing the System

  • The ME 2-II lavalier microphone clips to your talent’s clothing and plugs into the locking 3.5mm input on the bodypack transmitter. The exceptionally lightweight and compact transmitter can be easily concealed in a pocket or discreetly attached to the waist with the included belt clip.
  • The plug-on transmitter lets you connect any dynamic microphone or self-powered shotgun mic equipped with an XLR connector (it does not provide phantom power).
  • Both transmitters are designed to transmit signal from a mic only (not from a mixer or recorder).
  • The discreet and lightweight receiver mounts to your camera shoemount with the supplied adapter. Connect its 3.5mm output to the 3.5mm audio input of your camera, via the included coiled cable, and you’re ready to turn the system on.

Plug In, Turn On: It Works

  • The 1-button, 1-LED concept with single-button interface and status indicator effortlessly handles power and linking tasks for you.
  • Both transmitters are pre-paired with the receiver at the factory. All you have to do is turn on the receiver and the transmitter you want to use, and it works—without the need for any additional button pressing.
  • When you’re ready to use the other transmitter, simply power down the first one, turn on the second one, and the system does the switch for you (note that only one transmitter at a time can work with the receiver).
(For optimal results, use of the XSW-D is recommended in environments with limited Wi-Fi / 2.4 GHz traffic.)

Step Up to Sennheiser Sound Quality

  • Sennheiser wireless mic systems are an industry standard, prized by professionals for their clarity and reliability. The XSW-D system allows first-time and budget-conscious users to get their hands on genuine Sennheiser sound quality without breaking the bank.
  • The ever-popular ME 2-II lavalier microphone delivers a natural sound optimized for speech intelligibility. Its omnidirectional polar pattern ensures that the sound remains consistent, even when the talent’s head moves away from the mic.

Easy 2.4 GHz Digital Wireless

  • Nothing ruins a take like hearing the weather report coming through your mic. Unlike traditional analog wireless systems, the XSW-D digital system operates in the 2.4 GHz ISM band, away from interruptions and dropouts caused by TV and radio channel interference.
  • Thanks to Sennheiser’s channel allocation and interference management technology, the system selects the best operating frequency and automatically switches to a clean channel, providing reliable transmission at a distance up to 250′ line of sight.
  • For optimal performance, users are encouraged to maintain as direct a line of sight as possible between the transmitter and receiver.

Expand Your System as Your Needs Grow

  • The functionality of this XSW-D PORTABLE ENG SET can easily be expanded by adding XSW-D Series transmitters and receivers, as your needs evolve.
  • With this set, you can substitute the included lav mic with a Sennheiser-compatible headset mic, for clearer speech in noisy environments.

License-Free Operation Worldwide

  • Because the XSW-D system operates in the license-free 2.4 GHz band, you don’t have to worry about local licensing laws, frequency coordination, and other technical hassles.
  • Simply let the system pick a channel for you, and start recording—whether you’re working at home or anywhere in the world.

Other Features

  • Eco-friendly USB-rechargeable lithium-ion batteries—1-hour charging to reach 50% of battery time
  • 5-hour total battery life gives you plenty of shooting time
  • Conveniently recharge batteries via USB while in operation or during breaks throughout the day
  • Up to five systems can be operated simultaneously in the same environment
  • Low 3.9 ms latency with aptX Live codec specifically designed to maximize digital wireless microphone performance
  • Mute from either transmitter or receiver

UPC: 615104317796

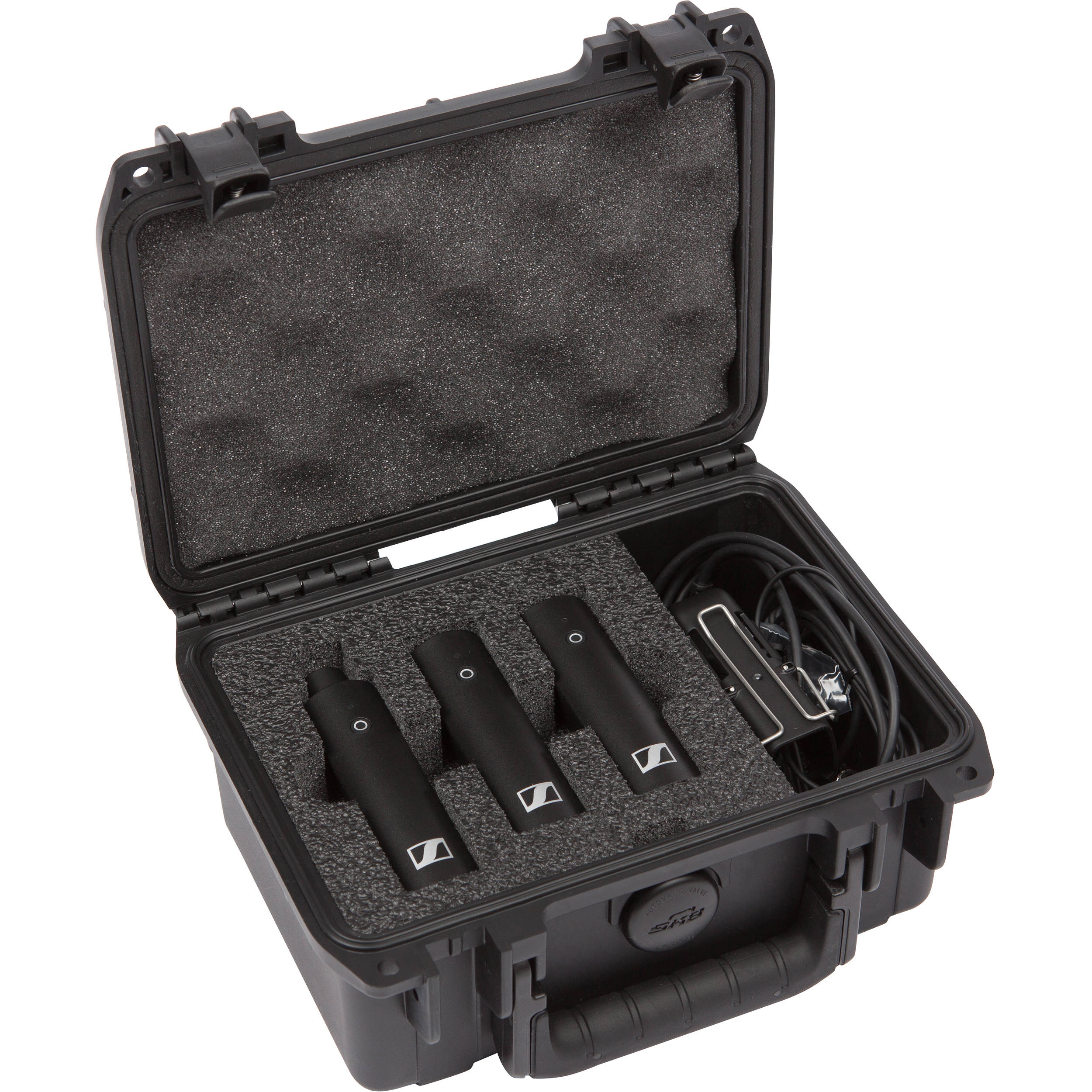

SKB iSeries Sennheiser XSW-D Wireless Audio System Case

The iSeries Sennheiser XSW-D Wireless Audio System Case from SKB is designed to accommodate the Sennheiser XSW-D receiver and transmitter bodypacks and has an accessory pocket to hold the lavalier mic and other accessories.

The interior is created with a custom-cut high quality PE foam and the exterior is made from ultra-high-strength polypropylene copolymer resin. It is UV, solvent, corrosion, and fungus resistant and has a complete gasket seal, which make the case watertight (MIL-STD-C-4150J). It is built with an automatic ambient pressure equalization valve and has a trigger release latch system.

Furthermore, the case is resistant to corrosion and impact damage, and has a molded-in hinge with built-in stainless steel locking loops, which are offered with an over-molded cushion grip handle. Finally, the case is made in the USA and includes an unconditional lifetime warranty.

Custom cut interior for Sennheiser XSW-D ENG Set
Accessory pocket for lav mic and other cables
Ultra high-strength polypropylene copolymer resin
UV, solvent, corrosion, and fungus resistant (MIL-STD-810F)
Complete gasket seal makes the case watertight (MIL-STD-C-4150J)
Automatic ambient pressure equalization value (MIL-STD-648C & IP67)
Resistant to corrosion and impact damage
Molded-in hinge
Trigger release latch system
Stainless steel locking loops
Accepts SKB TSA padlocks
Rubber over-molded cushion grip handle custom cut foam interior
SKU: SEWXSPESTRCK Category: Tag:

Sennheiser XSW-D PORTABLE ENG SET Digital Camera-Mount Wireless Combo Microphone System (2.4 GHz) Specs

System
Wireless Transmission Digital 2.4 GHz
Included Transmitters 1 x Bodypack
1 x Plug-On
Diversity TDMA
RF Frequency Band 2400 to 2483.5 MHz
RF Channel Scanning Auto-Scan
Max Operating Range 250′ / 76.2 m (Line of Sight)
Max Systems per Setup 5
Audio Codec APT-X Live
Latency
Encryption None
Modulation GFSK
Receiver
Form Factor Camera-Mount
Mounting Options Shoe-Mount (with Included Hardware)
Antenna 1 x Internal
Number of Audio Channels 1
Audio I/O 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Output (Lockable)
Audio Output Level 12 dB (Consumer Level)
Frequency Response 80 Hz to 18 kHz
USB/Lightning Connectivity 1 x USB Type-C (Bus Power, Charging)
Power Requirements Battery, Bus Power (USB)
Battery Type 1 x Built-In Rechargeable (Included, Not Replaceable)
Internal Battery Capacity 850 mAh
Battery Charging Time 3 Hours
Approx. Battery Life 5 Hours (Lithium Rechargeable)
Battery Cycle Count Up to 1000 Cycles
Display & Indicators 1 x LED (Battery Status, Mute, RF Level)
Housing Plastic
Operating Temperature 14 to 131°F / -10 to 55°C
Operating Humidity 95%
Dimensions 1.1 x 3.4 x 0.9″ / 28 x 86 x 24 mm
Transmitter 1
Transmitter
Form Factor Bodypack
RF Output Power 10 mW
Audio I/O 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Input (Lockable)
Muting Off/On Switch
Audio Input Level (Mic Level)
Frequency Response 80 Hz to 18 kHz
Antenna 1 x Internal
Power Requirements Battery, Bus Power (USB)
Battery Type 1 x Built-In Rechargeable (Included, Not Replaceable)
Internal Battery Capacity 850 mAh
Battery Charging Time 3 Hours
Approx. Battery Life 5 Hours (Lithium Rechargeable)
Battery Cycle Count Up to 1000 Cycles
USB/Lightning Connectivity 1 x USB Type-C (Bus Power, Charging)
Display & Indicators 1 x LED (Battery Status, Mute, Signal Strength)
Housing Plastic
Operating Temperature 14 to 131°F / -10 to 55°C
Operating Humidity 95%
Dimensions 1.1 x 3.4 x 0.9″ / 28 x 86 x 24 mm
Microphone
Form Factor Lavalier
Sound Field Mono
Capsule Electret Condenser
Polar Pattern Omnidirectional
Frequency Range 50 Hz to 18 kHz
Equivalent Noise Level 36 dB
Maximum SPL 130 dB SPL Peak
Sensitivity 20 mV/Pa
Output Connectors 1 x 1/8″ / 3.5 mm TRS Male Unbalanced (Lockable)
Cable Length 5.25′ / 1.6 m
Operating Voltage 7.5 V
Operating Temperature 14 to 131°F / -10 to 55°C
Operating Humidity 95%
Transmitter 2
Form Factor Plug-On
RF Output Power 10 mW
Audio I/O 1 x XLR 3-Pin Female Unbalanced Input
Muting Off/On Switch
Audio Input Level (Mic Level)
Frequency Response 80 Hz to 18 kHz
Antenna 1 x Internal
Power Requirements Battery, Bus Power (USB)
Battery Type 1 x Built-In Rechargeable (Included, Not Replaceable)
Internal Battery Capacity 850 mAh
Battery Charging Time 3 Hours
Approx. Battery Life 5 Hours (Lithium Rechargeable)
Battery Cycle Count Up to 1000 Cycles
USB/Lightning Connectivity 1 x USB Type-C (Bus Power, Charging)
Display & Indicators 1 x LED (Battery Status, Mute, Signal Strength)
Housing Plastic
Operating Temperature 14 to 131°F / -10 to 55°C
Operating Humidity 95%
Dimensions 1.1 x 3.4 x 0.9″ / 28 x 86 x 24 mm
Packaging Info
Package Weight 0.93 lb
Box Dimensions (LxWxH) 9.5 x 4.6 x 2.8″

SKB ISeries Sennheiser XSW-D Wireless Audio System Case Specs

Material of Construction Ultra High-Strength Polypropylene Copolymer Resin
Stainless Steel Locking Loops
Watertight Yes (MIL-STD-C-4150J)
Pressure Relief Valve Yes (MIL-STD-648C & IP67)
Other Features Molded-In Hinge
Trigger Release Latch System
UV, Solvent, Corrosion, and Fungus Resistant (MIL-STD-810F)
Dimensions (L x W x D) Exterior: 9.41 x 7.82 x 4.35″ / 23.90 x 19.86 x 11.05 cm
Weight 1.28 lb / 0.58 kg
Packaging Info
Package Weight 1.505 lb
Box Dimensions (LxWxH) 9.3 x 7.05 x 4.35″
