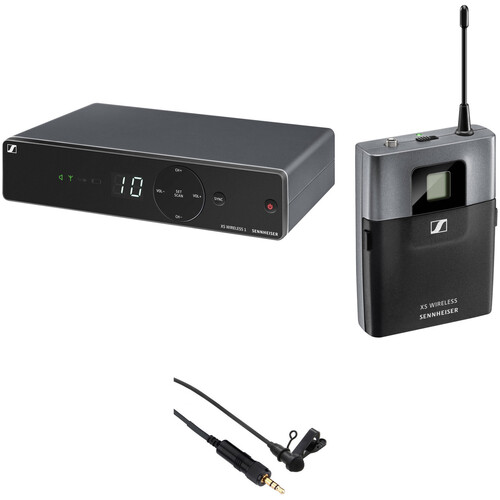

Sennheiser XSW1 Wireless Lavalier Microphone System Kit (A: 548 to 572 MHz)

Add to Wishlist

AED1,299.00

Add to Wishlist
Key Features
  • Public Speaking, Presentations, Lectures
  • Senal OLM-2 Omnidirectional Lav Mic
  • Bodypack Transmitter
  • Tabletop Receiver

Sennheiser XSW1Ā Overview

TheĀ Sennheiser XSW1 Wireless Lavalier Microphone System KitĀ fromĀ B&HĀ provides speakers, educators, panelists, and moderators with an easy-to-use, cost-effective, and reliable solution for presentations, public speaking, interviews, lectures, and more.

The kit comes with a black Senal OLM-2 omnidirectional lavalier mic, an SK-XSW bodypack transmitter, and an EM-XSW 1 tabletop receiver.

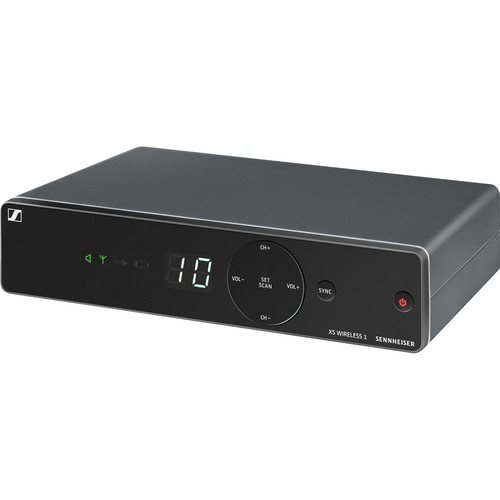

Sennheiser EM-XSW 1-A Table Top Receiver (A: 548 to 572 MHz)

TheĀ EM-XSW 1-A Table Top ReceiverĀ fromĀ SennheiserĀ is designed to be paired with the XSW 1-A handheld microphone or bodypack transmitter with a lavalier microphone (sold separately). It can be used to capture audio for live stage applications and features internal, integrated antennas, as well as automatic frequency management, which offers up to ten coordinated frequency presets for wireless applications.

The receiver is built to withstand even the toughest stress in everyday on-stage use and offers reliable transmission with easy-to-use set up. No matter whether you’re a band, a theater, or at a seminar, the XS Wireless 1 receiver lets you do your thing and not worry about equipment.

Great Performance and Price

The XS Wireless 1 receiver lets you concentrate on your talent and not the equipment. Just switch it on and its automatic frequency management does the rest. You can operate up to 10 coordinated frequency preset wireless connections.

Live Sound

The receiver yields an open, natural sound. No lengthy set upā€”just go!

Reliable Transmission

On stage, you must put up with a lot of thingsā€”so does your equipment. XS Wireless 1 is built to last: Receivers are designed to withstand even the toughest stress in everyday on-stage use.

UPC: 615104281820

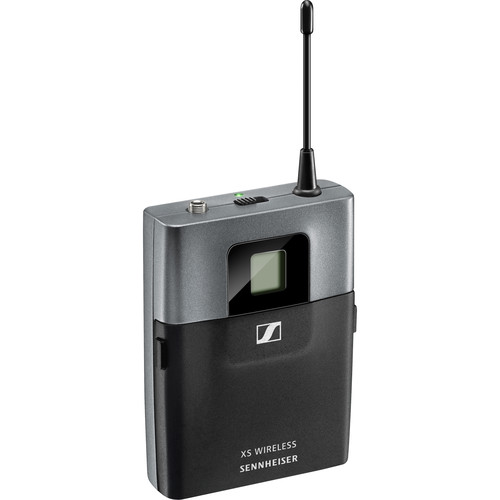

Sennheiser SK-XSW-A Bodypack Transmitter (A: 548 to 572 MHz)

TheĀ SK-XSW-A Bodypack TransmitterĀ fromĀ SennheiserĀ is designed to be paired with an EM-XSW1-A receiver (sold separately). It can be used to capture audio for live stage applications and features automatic frequency management, which offers up to ten coordinated frequency presets for wireless connections. The transmitter is sweat-resistant and can withstand even the toughest stress in everyday on-stage use.

Great Performance and Price

The XS Wireless 1 lets you concentrate on your talentā€”and not the microphone equipment. Just switch it on and its automatic frequency management does the rest. You can operate up to ten wireless connections simultaneously.

Live Sound

The transmitter yields an open, natural sound. No lengthy set upā€”just go!

Reliable Transmission

On stage, you must put up with a lot of thingsā€”so does your equipment. XS Wireless 1 is built to last: Transmitters are sweat-resistant and withstand even the toughest stress in everyday on-stage use.

UPC: 615104281998

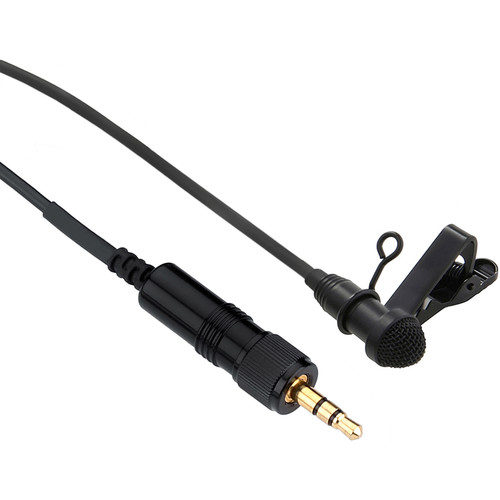

Senal OLM-2 Lavalier Microphone with 3.5mm Locking Connector for Sennheiser EW & Senal AWS-2000 Series

ThisĀ Senal OLM-2 Lavalier MicrophoneĀ is a high-performance lavalier microphone with a locking 3.5mm connector for Sennheiser EW and Senal AWS-2000 wireless transmitters. Its miniature, lightweight design allows for discrete placement without compromising sound quality. This versatile workhorse microphone is ideal for broadcast, video, and stage applications.

Utilizing a broadcast-quality electret condenser element, it features a smooth frequency response and a wide dynamic range. Its omnidirectional polar pattern enables 360Ā° sound pickup, capturing a natural blend of voice and ambiance with low sensitivity to wind and handling noise, as well as to vocal plosives. In addition to being designed to connect to a Sennheiser or Senal bodypack transmitter, the OLM-2 can be combined with the Senal PS-48B Power Supply (sold separately) to operate on phantom or battery power, enabling it to plug into any XLR microphone input.

Gold-plated locking 3.5mm connector for Sennheiser EW and Senal AWS-2000 wireless transmitters
Metal windscreen reduces wind noise and vocal plosives
Tie clip for securing mic to clothing
16.3 x 6.5mm (length x diameter) head size
SKU: SEEMXSW1ALK Category: Tag:

Sennheiser EM-XSW 1-A Table Top Receiver (A: 548 To 572 MHz)Ā Specs

System
Modulation Wideband FM
Frequency Range A: 548 to 572 MHz
Switching Bandwidth Up to 24 MHz
Signal to Noise Ratio ā‰„ 103 dBA
Total Harmonic Distortion ā‰¤ 0.9%
Temperature Range Operation: 32 to 104Ā°F (0 to +40Ā°C)
Storage -4 to 158Ā°F (-20 to 70Ā°C)
Transmitter Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization)
Receiver
Principle Double superheterodyne
Diversity Antenna switching diversity via internal antennas
Sensitivity < 3 Ī¼V at 52 dBA RMS S/N (at peak deviation)
Frequency Response 50 Hz to 16 kHz (-3 dB)
Max Output Voltage At Peak Deviation, 1 kHz AF
1/4″ (6.3 mm) Jack Socket (unbalanced): +6 dBu
XLR Socket (balanced): +12 dBu
Adjustment Range Audio: 45 dB, adjustable in 5-dB steps
Power Supply 12 VDC nominal/300 mA
Squelch Adjustable from 3 to 28 dB Ī¼V (combined with pilot tone)
Line/Mic Level 20 dB, switchable
Material of Construction ABS housing
Dimensions (W x H x D) 7.9 x 1.7 x 5.0″ (200 x 42 x 127 mm)
Weight 12 oz (340 g)
Packaging Info
Package Weight 1.91 lb
Box Dimensions (LxWxH) 11.15 x 10 x 3.3″

Sennheiser SK-XSW-A Bodypack Transmitter (A: 548 To 572 MHz)Ā Specs

System
Modulation Wideband FM
Frequency Range A: 548 to 572 MHz
Switching Bandwidth Up to 24 MHz
Frequencies 8 frequency banks, each with up to 10 factory-preset channels
Signal to Noise Ratio ā‰„ 103 dBA
Total Harmonic Distortion ā‰¤ 0.9%
Temperature Range Operation: 32 to 104Ā°F (0 to +40Ā°C)
Storage -4 to 158Ā°F (-20 to 70Ā°C)
Transmitter Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization)
Bodypack Transmitter
Output Power 10 mW
Frequency Response Line: 50 Hz to 16 kHz
Mic: 50 Hz to 16 kHz
Audio Input 1/8″ (3.5 mm) jack socket
Input Voltage Mic/Line at 3% THD: Typ. 1.V RMS mic / typ. 2.6 V RMS line at -30 dB gain
Power Supply 2 x AA batteries, 1.5 V
Operating Time Approximately 10 hours
Adjustment Range Transmitter Sensitivity: 0 to -30 dB, adjustable in 10 dB steps
Material of Construction Rugged ABS housing
Dimensions (W x H x D) 2.8 x 3.8 x 1.1″ (71 x 96 x 28 mm)
Weight 3.4 oz (95 g)
Packaging Info
Package Weight 1.345 lb
Box Dimensions (LxWxH) 11 x 9.95 x 3.3″

Senal OLM-2 Lavalier Microphone With 3.5mm Locking Connector For Sennheiser EW & Senal AWS-2000 SeriesĀ Specs

Transducer Electret condenser
Polar Pattern Omnidirectional
Frequency Response 50 Hz to 20 kHz
Sensitivity -63 dB Ā±3 dB (0 dB = 1 v/microbar @ 1 kHz)
Impedance 15,000 Ī© Ā±30% @ 1 kHz
Operating Voltage 1 – 10 VDC
Connector Gold-plated 1/8″ (3.5 mm) locking connector jack
Cable Length 5.3′ (1.6 m)
Head Diameter 0.3″ (6.5 mm)
Head Length 0.6″ (16.3 mm)
Total Weight 1 oz (28.3 g)
Packaging Info
Package Weight 0.3 lb
Box Dimensions (LxWxH) 10.4 x 4 x 1.25″
