Sennheiser XSW2-ME2 Wireless Lavalier Microphone System (A: 548 to 572 MHz)

Add to Wishlist

AED1,999.00

Add to Wishlist
Key Features
  • For Presenter and Moderator Applications
  • ME 2-2 Lavalier Microphone
  • True Diversity Receiver
  • Up to 12 Compatible Channels

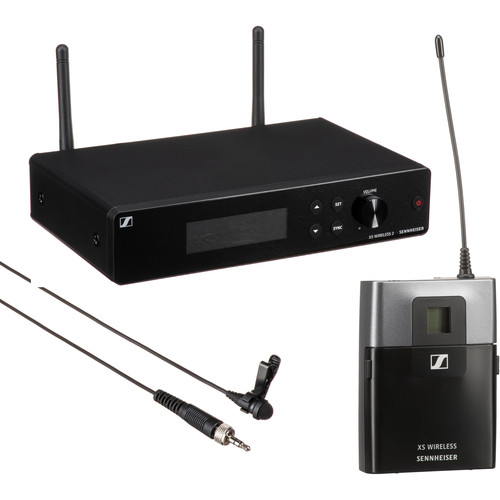

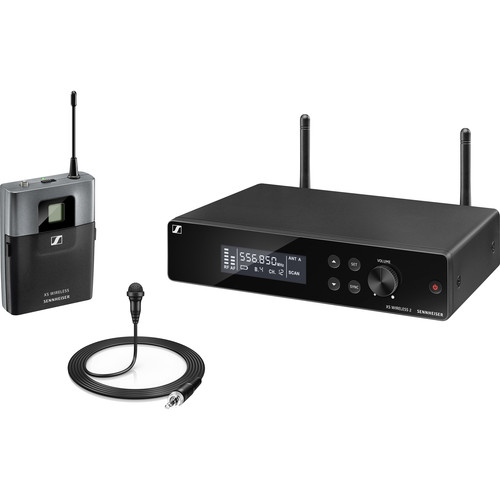

TheĀ XSW2-ME2 Wireless Lavalier Microphone SystemĀ features a true diversity receiver, a compact bodypack transmitter, and an ME 2-2 lavalier microphone with a locking 1/8″ mini-jack connector. It has 12 compatible channels and is offered as an easy to use, all-in-one wireless system for presenters, moderators, and other live-sound applications.

The system is built with automatic frequency management and synchronization so you don’t have to scramble to find an available channel. It offers an intuitive LCD display, two external antennas, and is built with a metal receiver housing. In addition, a rackmount kit, power supply, carry pouch, and two AA batteries are also included.

Unobtrusive clip-on ME 2-2 microphone for hands-free operation and a compact bodypack transmitter

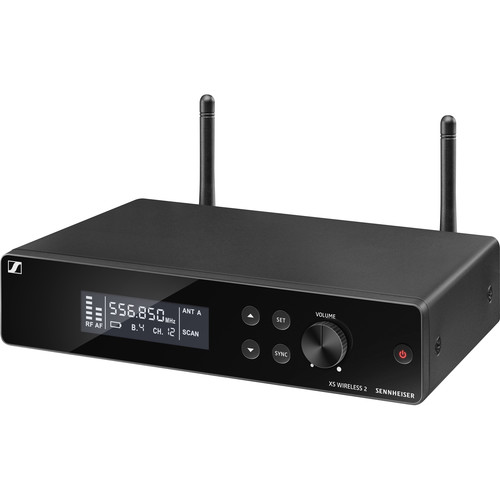

True diversity receiver with metal housing
External antennas
Automatic frequency management and synchronization
Remote channel for easy setup
Fully tunable over a wide range of UHF frequencies
Rackmount kit included
Up to 12 compatible channels
SKU: XSW 2-ME2-A Category: Tag:

Sennheiser XSW 2-ME2Ā Specs

System
Modulation Wideband FM
Frequency Range A: 548 to 572 MHz
Switching Bandwidth Up to 24 MHz
Frequencies Adjustable in 25-kHz steps
8 frequency banks, each with up to 12 factory-preset channels
Signal to Noise Ratio ā‰„ 103 dBA
Total Harmonic Distortion (THD) ā‰¤ 0.9%
Temperature Range Operation: 32 to 104Ā°F (0 to +40Ā°C)
Storage: -4.0 to 158Ā°F (-20 to +70Ā°C)
Transmitter Synchronization 2.4 GHz, low power OQPSK (only active during synchronization)
Receiver
Principle of Operation Double superheterodyne
Diversity Method True diversity
Sensitivity < 3 ĀµV at 52 dBA rms S/N at (peak deviation)
Frequency Response 50 Hz to 16 kHz (-3 dB)
Maximum AF Output Voltage At peak deviation, 1 kHz AF
1/4″ (6.3 mm) Jack Socket (Unbalanced): +6 dBu
XLR Socket (Balanced): +12 dBu
At peak deviation, 1 kHz AF
Adjustment Range Audio: 40 dB, adjustable in 5-dB steps
Power Supply Nominal Input: 100 to 240 VAC 50/60 Hz
Input Current: 200 mA (Max.)
Nominal Output: 12 VDC 300 mA
Squelch Adjustable from 3 dBĪ¼ V to 28 dBĪ¼ V (combined with pilot tone)
Line/Mic Level 20 dB, switchable
Housing Material Rugged metal housing
Dimensions (W x H x D) 7.9 x 1.7 x 5.0″ (200 x 42 x 127 mm)
Weight 24 oz (680 g)
Transmitter
RF Output Power 10 mW
AF Frequency Response 50 Hz to 16 kHz (Line)
80 Hz to 16 kHz (Mic)
Audio Input 1/8″ (3.5 mm) jack socket
Input Voltage Maximum at 3% THD:
Mic: Typ. 1.5 V rms
Line: Typ. 2.6 V rms @ -30 dB gain
Power Supply 2 x AA size batteries, 1.5 V
Operating Time Approximately 10 hours
Sensitivity Adjustment Range: 0 to -30 dB, adjustable in 10-dB steps
Housing Material Rugged ABS housing
Dimensions (W x H x D) 2.8 x 3.8 x 1.1″ (71 x 96 x 28 mm) approximate
Weight 3.4 oz (95 g) approximate
Microphone
Transducer Principle Condenser, pre-polarized
Sensitivity 20 mV/Pa
Pickup Pattern Omnidirectional
Maximum SPL 130 dB
Dimensions Not specified by manufacturer
Weight Not specified by manufacturer
Packaging Info
Package Weight 4.795 lb
Box Dimensions (LxWxH) 14.65 x 13.8 x 3.4″
