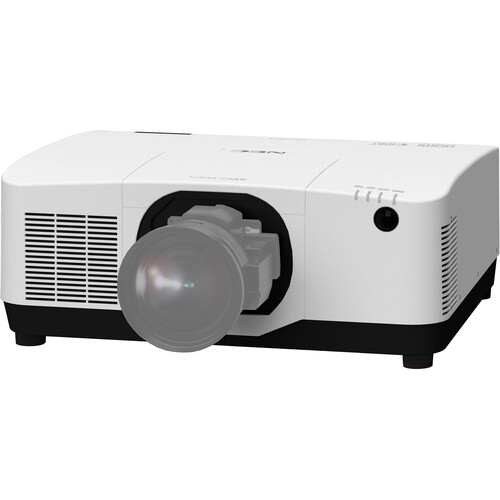

Sharp NEC NP-PA1505UL 15,000-Lumen WUXGA Laser 3LCD Projector (No Lens, White)

Add to Wishlist
  • Brightness of 15,000 Center Lumens
  • WUXGA (1920 x 1200) Native Resolution
  • 3G-SDI, HDBaseT & 2 x HDMI Inputs
  • HDBaseT Output for Daisy Chaining
  • 20,000 Hours+ Laser Life
  • IP5X Certified Dust Resistance
  • 360° Installation Capability
  • Integrated Stacking & Edge Blending
  • RS-232 & LAN Controllable
  • AMX, Crestron & Extron Control Support

د.إ113,499.00

Add to Wishlist

The white NEC NP-PA1505UL 14,000-Lumen WUXGA Laser 3LCD Projector is a high-brightness, professional installation projector designed for medium to large corporate and higher education spaces. Featuring a laser light source in an IP5X certified filter-free case, the NP-PA1505UL is built for long life with minimal maintenance. Enjoy installation flexibility with a full line of optional lenses, 360° orientation support, and full geometric correction. Connect a variety of devices via 3G-SDI, HDBaseT, and HDMI 2.0 inputs with support for up to 4K60 video signals. Additionally, an HDBaseT output is available for daisy chaining in multi-projector setups with stacking and edge blending capability built in.

4K Ready
Display stunning 4K60 content using NEC’s proprietary high-performance video processing/scaling chip without the loss of critical details.
HDBaseT
Simplify your installations with HDBaseT, which is optimized for video applications and supporting uncompressed full HD digital video, audio, Ethernet, power, and various control signals. With only a single cable (up to 327′) to run, infrastructure and labor costs are reduced, installations are significantly easier, and there is no cable clutter to manage. With uncompressed HD video support, images have never been more stunning. What’s more, control signals are contained in the same cable.
Built-In Stacking and Edge Blending
Stacking capability allows the projectors to boost an image’s brightness up to 68,000 lumens, which is ideal for larger sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector. Edge blending blends multiple projected images to display a single high-resolution image.
Geometric Correction
Projecting an image is not confined to a standard flat screen or wall with the NEC PA Series. Geometric correction allows these models to project an image on spheres, cylinders, corner angles, and many more non-standard surfaces.
Control System Support
Integrated software applications such as AMX Beacon, Crestron Roomview, Extron XTP, and PJ Link allow for complete interactivity and control.
NEC ProAssist
Projector management software for installation professionals provides full projector control for multiple screens to create the perfect image. Controls such as input switching, picture, lens, edge blending, uniformity, and gamma control are adjustable through the GUI.
Optional Lenses

Enjoy greater installation flexibility with motorized bayonet style lenses providing quick and easy exchanges. Lens throw distances range from 4.25 to 141ft.

Throw Ratio Lens Type Model Number
0.86-1.25:1 Short/Standard-throw zoom lens NP53ZL
1.24-2.01:1 Standard-throw zoom lens NP54ZL
1.98-3.95 Long-throw zoom lens NP55ZL



Additional Features
  • WUXGA native resolution
  • Motorized lens shift
  • Motorized zoom and focus
  • 3.5mm variable audio output
  • Instant on/off
  • Auto power off
  • 360° roll-free installation
  • Portrait mode
  • Picture-in-picture
  • Picture-by-picture
  • Multi-display and tile matrix via HDBaseT daisy chain
  • Control over LAN or RS-232
  • Built-in wall color correction
SKU: NP-PA1505UL-W 1 Category: Tag:
Display System
3-Chip RGB Liquid Crystal Shutter Projection System LCD
Native Resolution
1920 x 1200
Maximum Brightness
15,000 Lumens (Center)
HDR Support
Yes,
Inputs/Outputs
2x HDMI 2.0 Audio, Video Input
1x BNC (3G-SDI) Video Input
1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input
1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Output
1x 1/8″ / 3.5 mm Mini Audio Output
1x USB-A Control Input
1x RJ45 (Ethernet) Control Input
1x DE-9/DB-9 (RS-232) Control Input
1x 1/8″ / 3.5 mm Mini Remote Input
Light Source
Laser Phosphor
Image Display
Display System
3-Chip RGB Liquid Crystal Shutter Projection System LCD
Native Resolution
1920 x 1200
Supported Resolutions
Maximum: 3840 x 2160 @ 60 Hz
Maximum Brightness
15,000 Lumens (Center)
Aspect Ratio
Native: 16:10
Dynamic Contrast Ratio
3,000,000:1
Color Depth
10-Bit (1.07 Billion Colors)
Scan
Horizontal: 15 to 153 kHz
Vertical: 24 to 120 Hz
Includes Lens
No
Features
Keystone Correction
Vertical: ± 30°
Horizontal: ± 40°
HDR Support
Yes,
Multi-Input Support (PIP/PBP)
Picture-in-Picture (PIP), Picture-by-Picture (PBP)
Ceiling Mountable
Yes
Rear Screen Projection
Yes
Built-In Speaker
No
Projection Tilt Option
Yes
Input/Output Connectors
Inputs/Outputs
2x HDMI 2.0 Audio, Video Input
1x BNC (3G-SDI) Video Input
1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input
1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Output
1x 1/8″ / 3.5 mm Mini Audio Output
1x USB-A Control Input
1x RJ45 (Ethernet) Control Input
1x DE-9/DB-9 (RS-232) Control Input
1x 1/8″ / 3.5 mm Mini Remote Input
HDCP Support
Yes, Version 2.2
Hardware
Mobile App Compatible
No
Wireless LAN / Wi-Fi
No
Bluetooth
No
General
Light Source
Laser Phosphor
Expected Lamp Life
Full Brightness: 20,000 Hours
Fan Noise
Full Brightness: 38 dB
Security
Cable Lock Slot
Password Protection
Security Bar
Supported Languages
Arabic
Croatian
Czech
Danish
Dutch
English
Finnish
French
German
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
Full Brightness: 960 W
Standby Mode (Lamp Off): < 0.4 W
Certifications
UL 60950-1: 2nd Edition, UL 62368. 3rd Edition, FCC, CAN/CSA, ICES-003 Issue 7
Operating Temperature
32 to 113°F / 0 to 45°C
Storage Temperature
14 to 122°F / -10 to 50°C
Operating Humidity
20 to 80%
Storage Humidity
20 to 80% (Non-Condensing)
Dimensions (W x H x D)
23.6 x 9.4 x 19.3″ / 599.0 x 238.0 x 490.0 mm (including protruding parts)
Weight
63.3 lb / 28.7 kg
