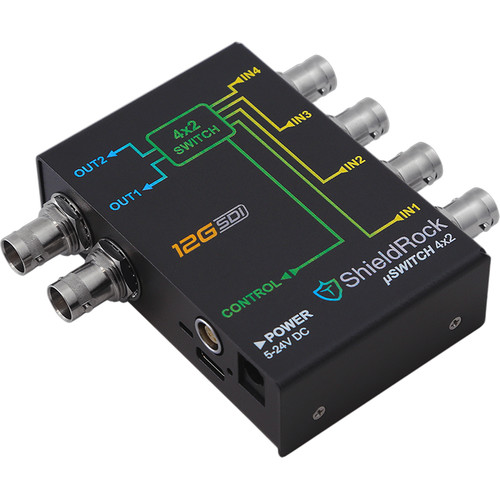

ShieldRock µSwitch 4×2 12G-SDI Switch with RS-232 & USB Type-C Control

Add to Wishlist
  • 4 x 12G-SDI Inputs & 2 x 12G-SDI Outputs
  • Supports up to DCI/UHD 4K60 Video
  • Control via 4-Pin LEMO-Type Connector
  • Power & Control via USB Type-C Connector

AED3,499.00

Add to Wishlist

The µSwitch 4×2 12G-SDI Switch with RS-232 & USB Type-C Control from ShieldRock is a simple and versatile switch with serial and USB-C control. It features four 12G-SDI inputs, two 12G-SDI outputs, a 4-pin LEMO-type control port for RS-232 serial control, and a USB Type-C port for power and control from a macOS, Windows, or Linux system. It supports video input and output up to DCI/UHD 4K60.

SKU: SRBMC-USW4X2 Category: Tag:
Processing
Switching Type
Software
Input
Video Inputs
4x BNC (12G-SDI) Female
Input Video Format
SDI
DCI 4K at 23.98/24/25/29.97/30/48/50/59.94/60 fps
UHD 4K 24/25/29.97/30/48/50/59.94/60 fps
1080p 23.98/24/25/29.97/30/48/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 23.98/24/25/29.97/30/48/50/59.94/60 fps
576i / 625 lines
480i / 525 lines
Input Audio Format
AES/EBU
Embedded Audio Input
SDI
Output
Video Outputs
2x BNC (12G-SDI) Female
Output Video Format
SDI
DCI 4K at 23.98/24/25/29.97/30/48/50/59.94/60 fps
UHD 4K 23.98/24/25/29.97/30/48/50/59.94/60 fps
1080p 23.98/24/25/29.97/30/48/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 24/25/29.97/30/48/50/59.94/60 fps
576i / 625 lines
480i / 525 lines
Output Audio Format
AES/EBU
Embedded Audio Output
SDI
Connectivity
Other I/O
1x LEMO 4-Pin Control, RS-232 Input
1x USB-C Control Input
Video Standard Compliance
SMPTE 259M/292M/296M/297M/372M/424M/425M
Hardware
OS Compatibility
macOS
Windows
Linux
Wi-Fi
No
Bluetooth
No
Power
Power Consumption
Device: 5 to 24 VDC (1 W)
General
Dimensions
3.6 x 3.5 x 1″ / 92.5 x 88.4 x 25.4 mm
Weight
5.3 oz / 150 g
Packaging Info
Package Weight
0.82 lb
Box Dimensions (LxWxH)
8.7 x 6.1 x 1.9″
