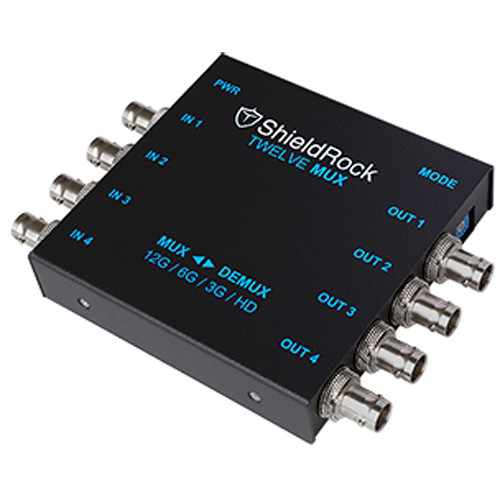

ShieldRock TWELVE MUX 12G-SDI Mux/DeMux Converter

Add to Wishlist

AED3,999.00

Add to Wishlist

The TWELVE MUX 12G-SDI Mux/DeMux Converter from ShieldRock converts between single-link, dual-link, and quad-link SDI transport interfaces. It supports 4K, UHD, 2K, and HD video formats, including audio channels. The converter can be used for converting between quad-link 3G to single-link 12G, or from single-link 12G to quad-link 3G. In addition, all SMPTE interfaces in 12G, 6G, 3G, and 1.5G are supported.

SKU: SRBMC-TWLVMUX Category: Tag:
Video Interface
12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI (auto switching)
SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M
Supports AES10 multi-channel (MADI) audio
Video Formats
4K/UHD 2160p 23.98/24/25/29.97/30/48/50/59.94/60
2K/HD 1080p 23.98/24/25/29.97/30/48/50/59.94/60
1080i 50/59.94/60
1080PsF 23.98/24/25/29.97/30
720p 23.98/24/25/29.97/30/48/50/59.94/60
Electrical
Input: 5 to 24 VDC
Power Consumption
7 W
Dimensions
5.4 x 4 x 0.86″ (137.2 x 101.6 x 21.9 mm)
Weight
11.6 oz (330 g)
Packaging Info
Package Weight
1.085 lb
Box Dimensions (LxWxH)
9.2 x 6.4 x 2.3″
