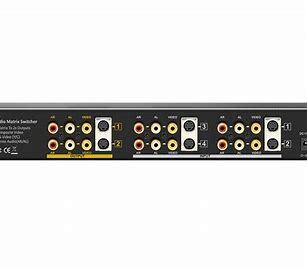

Shinybow 4×2 Composite/S-Video/Audio Matrix Routing Switcher

Add to Wishlist

AED1,599.00

Add to Wishlist

The SB-5450M 4×2 Composite/S-Video/Audio Matrix Routing Switcher from Shinybow supports resolutions up to 1080p and features four inputs and two outputs for S-Video, composite video, and stereo RCA audio. Because it is a matrix switcher, any of the inputs can be routed to any of the outputs, making it well suited for multi-display installations. It is 1 RU in height and is mountable in standard 19″ racks using optional rack ears (sold separately). Control is provided via front selection push buttons with LED readout, or infrared remote controller.

Key Features
  • Matrix switcher with four inputs and two outputs
  • Each input/output offers S-Video, composite RCA video, and stereo RCA audio (AR/AL) connections
  • Supports 480i, 480p, 576p, 720p, 1080i, and 1080p TV resolutions
  • 100 MHz (-3 dB), 200 mVpp video bandwidth
  • 30 MHz audio bandwidth
  • 20 Hz to 20 kHz audio frequency response
  • Scan rates accepted for 50 Hz or 60 Hz
  • IR remote control (38 kHz frequency)
  • Front panel control via selection channel push buttons with LED readout
  • Rack-mountable 1 RU with separately available rack ears
  • Low power consumed; full load under 250mAh
  • 100 to 240 VAC universal power supply included
SKU: SB-5450M Category: Tag:
nputs
Video:
4 x S-Video
4 x Composite RCAAudio:
4 x Stereo RCA (AR/AL)
Outputs
Video:
2 x S-Video
2 x Composite RCAAudio:
2 x Stereo RCA (AR/AL)
Video Bandwidth
100 MHz, -3 dB, 2 Vpp
Audio Bandwidth
30 MHz, -3 dB
Audio-Right: 30 MHz / Audio-Left: 30 MHz
Audio Frequency Response
20 Hz to 20 kHz
All Hostile Crosstalk
-56 dB at 5 MHz / -45 dB at 50 MHz
Scan Rates Accepted
50 Hz or 60 Hz
IR Infrared Frequency
38 kHz
Safety Approvals
CE, FCC, VCCI, Erp, WEEE
Power Voltage Input
12 VDC, 1 A
Power Adapter
100 to 240 VAC, 50/60 Hz
Dimensions
12.0 x 6.1 x 1.7″ (30.4 x 15.4 x 4.4 cm)
Weight
3.1 lb (1.4 kg), with metal case
Packaging Info
Package Weight
4.85 lb
Box Dimensions (LxWxH)
13 x 10.4 x 3″
