Shure ANI4IN 4-Channel Dante Mic/Line Audio Network Interface Unit (XLR Inputs)


Key Features
  • Four XLR Analog Inputs
  • Single Ethernet Port
  • LEDs Indicate Device Status/Audio Signal
  • Crestron & AMX Control Strings
  • 4-Band C/S PEQ
  • Browser-Based Software Control

3,199.00 د.إ

Shure ANI4INĀ Overview

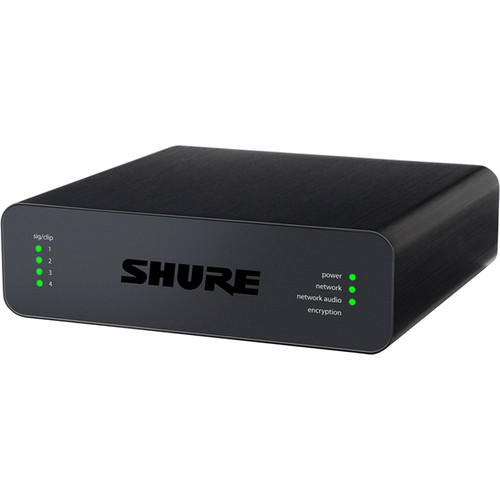

The 1/3 RUĀ ANI4IN Dante Mic/Line Audio Network Interface UnitĀ fromĀ ShureĀ is an interface unit with four 3-Pin XLR input ports that convert four line or microphone analog signals onto a Dante network for audio routing and browser-based control. It features a single Ethernet port, customizable EQ settings, channel summing, and LEDs that indicate the device status and audio signal. It is compatible with third-party control systems.

  • Single Ethernet port carries Dante audio, power (PoE – class 0)
  • Control strings for third-party preset controllers including Crestron and AMX
  • Four band C/S PEQ on every channel
  • Provides channel summing to combine input signals and send them over a single Dante channel
  • Browser-based software control for all device parameters, per input channel for preamp gain, phantom power, mute control, digital gain, and polarity control
Category: Tag:
Rack Units
1/3 RU wide
Connectors

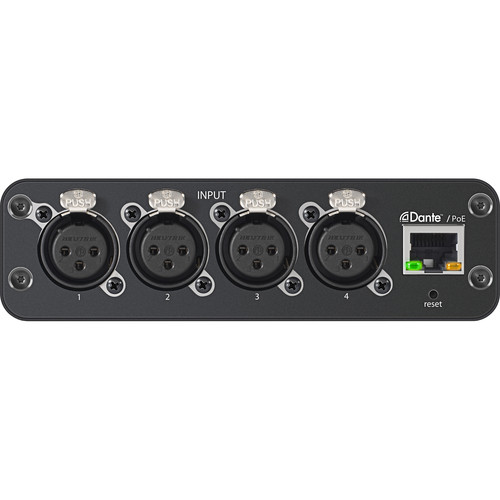

4 x 3-Pin XLR Analog Ports, input
1 x PoE Port (Class 0)
Dimensions
9.00 x 6.25 x 3″ / 22.86 x 15.88 x 7.62 cm
Weight
2.16 lb / 0.98 kg
Packaging Info
Package Weight
2.4 lb
Box Dimensions (LxWxH)
10.15 x 6.65 x 3.25″
