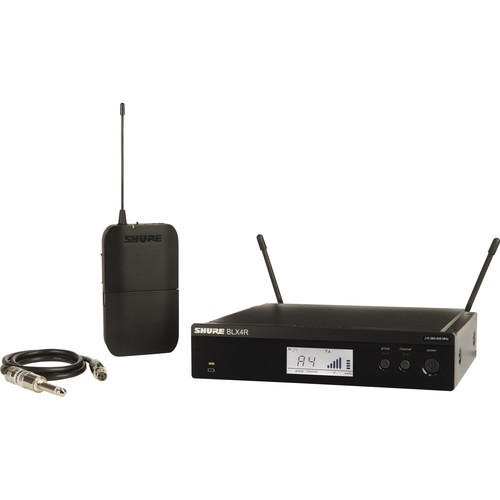

Shure BLX14R Rackmount Wireless Guitar System (J11: 596 to 616 MHz)

Add to Wishlist

1,899.00 د.إ

Add to Wishlist
Key Features
  • For Guitar & Bass Players
  • WA302 Instrument Cable
  • Lightweight Bodypack Transmitter
  • Single-Channel Rackmount Receiver
  • 123 Auto-Scan Frequencies
  • Two Removable Antennas with Diversity
  • Adjustable Output Level
  • Rugged Metal Construction
  • 14-Hr AA Batteries
  • Expandable to 12 Mic Channels/300′ Range

Shure BLX14R Overview

The Shure BLX14R brings guitar and bass players a cost-effective wireless system with quality sound, simple setup, intuitive operation, and dependable performance right out of the box. It includes the rugged BLX4R single-channel receiver with LCD display, adjustable output level, and removable antennas for rackmounting the unit—ideal for sound-reinforcement applications in small venues, wedding halls, and houses of worship.

The BLX14R also includes a WA302 1/4″ to TA4F instrument cable and a bodypack transmitter. The receiver features one-touch QuickScan frequency selection to quickly search 123 available frequencies and locate a clean RF channel in case of interference.

It provides up to 14 hours of continuous use with two AA batteries, at a range up to 300′. Up to 12 mic channels can operate simultaneously in each frequency band.



Lightweight Bodypack Transmitter

The durable BLX1 bodypack transmitter offers a lightweight, ergonomic design that is comfortable for the presenter to wear. Group and channel selection buttons allow for quick and simple frequency matching with the receiver. Other features include an easily accessible on/off switch, adjustable gain control, and a TA4M 4-pin input jack.

Easy-to-Use Rackmount Receiver for Quality Audio

The BLX4R receiver employs a microprocessor-controlled antenna diversity system to improve the quality and reliability of your wireless audio. The receiver can be rackmounted with the included hardware, allowing you to position the two removable antennas on the front of the rack for optimal signal reception.The LCD display shows group and channel settings, and allows you to meter audio level and signal strength. An LED indicator even lets you keep an eye on the transmitter’s remaining battery life. The unit offers 1/4″ and XLR connectors with adjustable output level for flexible connectivity to PA systems and mixing boards.

A Versatile System to Meet Your Needs

Shure offers a variety of lavalier, instrument, headset, and handheld microphone options to adapt your BLX system as your needs evolve.

  • The discrete MX153 sub-miniature earset mic provides exceptional clarity in spoken word applications.
  • For fitness instructors, the SM31FH is a rugged, moisture-repelling headset microphone designed to stay secure and comfortable during active performances.
  • The CVL lavalier mic offers low visibility and clear vocal reproduction for discreet applications.
  • Instrumentalists can attach the WB98H/C flexible gooseneck instrument microphone for brass, woodwind, and percussion applications.
  • The BLX2 handheld transmitter is available with three different mic capsules for presenters who prefer the flexibility of a handheld microphone.
SKU: BLX14R-J11 Category: Tag:

Shure BLX14R Specs

System
Wireless Transmission Analog UHF
Number of RF Channels 123
Included Transmitters 1 x Bodypack
Diversity Antenna Diversity
RF Frequency Band J11:
596 to 608 MHz
614 to 616 MHz
RF Bandwidth 14 MHz
RF Channel Scanning Auto-Scan
Max Operating Range 300′ / 91.4 m (Line of Sight)
Max Systems per Setup 12
Dynamic Range 100 dBA
Receiver
Form Factor Tabletop
Mounting Options Rackmount (with Included Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x 1/4 Wave External, Detachable (Rear-Mount)
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Output
1 x 1/4″ TS Female Unbalanced Output
Audio Output Level XLR Output:
-20.5 dBV (Mic Level)
1/4″ Output:
-13 dBV (Instrument Level)
Frequency Response 50 Hz to 15 kHz (Dependent on Mic)
Impedance XLR Output:
200 Ohms
1/4″ Output:
50 Ohms
Approximate RF Sensitivity -105 dBm
Adjacent Channel Isolation >50 dB
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 12 to 15 VDC at 260 mA, Center-Positive (Included)
Display & Indicators 1 x Backlit LCD (AF Level, Channel, Group, Metering, RF Level)
1 x LED (Transmitter Battery Status)
Housing Steel
Dimensions 7.8 x 2 x 6.4″ / 198 x 50 x 163 mm (without Mounting Hardware, Antennas)
Weight 35.2 oz / 998 g
Transmitter 1
Transmitter
Form Factor Bodypack
RF Output Power 10 mW
Audio I/O 1 x TA4/Mini XLR 4-Pin Male Input (Lockable)
Included Cable Connector 1/4″ TS
Muting Off/On Switch
Auto-Level Control No
Gain Range -16 to +10 dB
Sync Method Manual
Antenna 1 x Flexible Whip, Fixed (Beltpack)
Power Requirements Battery
Battery Type 2 x AA (Included)
Approx. Battery Life 14 Hours (Alkaline)
Display & Indicators 1 x Multi-Segment LED (Channel, Group)
1 x LED (Battery Status, Power)
Housing ABS
Dimensions 2.5 x 4.3 x 0.8″ / 64 x 110 x 21 mm
Weight 2.6 oz / 75 g (without Batteries)
