Shure ULXS14/85 Wireless Cardioid Lavalier Microphone System (J1: 554 to 590 MHz)

Add to Wishlist

3,599.00 د.إ

Add to Wishlist
Key Features
  • For Presenters and Performers
  • WL185 Cardioid Lavalier Mic
  • Lightweight Bodypack Transmitter
  • Predictive-Diversity Receiver
  • 1440 Auto-Scan Frequencies
  • Adjustable Gain Range
  • 8 Hours on 9V Battery
  • Expandable to 40 Mic Channels/300′ Range

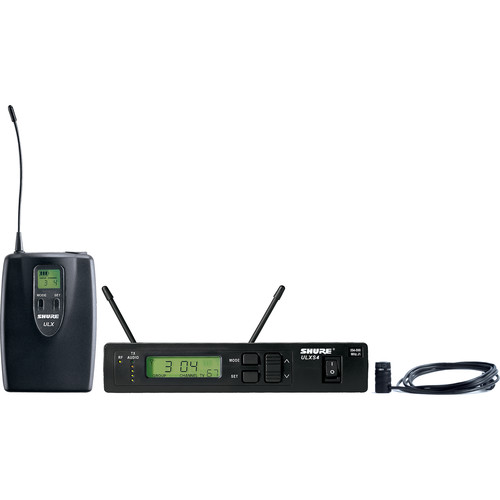

The Shure ULXS14/85 is a wireless lavalier microphone system that brings reliable transmission and high-quality audio to presenters, performers, clergy, and instructors. In addition to the portable ULXS4 receiver, this configuration features the ULX1 bodypack transmitter and the WL185 cardioid lavalier microphone. The system is suitable for lecture halls, conference rooms, and houses of worship as well as performance spaces, musical stages, theaters, and more.

The ULXS4 receiver features a plastic, half-rack-size chassis that is simple to use. The receiver’s auto-scan function searches a 36 MHz UHF tuning range with 1440 selectable frequencies available, seeking out a clean channel for clear, interference-free transmission. Manually enter the selected frequency into the transmitter and you’re up and running. If the RF environment changes and interference is heard, simply rescan with the receiver and set the transmitter to the new frequency.

The included WL185 lavalier microphone offers a cardioid polar pattern and is optimized for speech intelligibility. The bodypack transmitter provides up to 8 hours of operation on a 9V battery and a transmission range up to 300′. The unit offers a TA4M input with an adjustable input level.

The system can be expanded to allow up to 40 wireless mics to operate simultaneously in the same space.

Reliable Performance That’s Easy to Use

System

  • Auto-scan instantly locates a clear, interference-free channel for safe transmission
  • Predictive-diversity technology uses a microprocessor to switch antennas before dropouts occur, greatly improving reception
  • Shure’s patented Audio Reference Companding delivers crystal-clear audio with a 25 Hz to 15 kHz frequency response

Portable Receiver

  • Lightweight plastic construction
  • 1/2-rack-size chassis can be rackmounted with UA506 (single) or UA507 (dual) hardware kits—available separately
  • Detachable 1/4-wave antennas
  • Multifunction backlit LCD shows group, channel, and transmitter battery strength
  • Audio level meters
  • Back panel houses a balanced XLR mic-level output as well as an unbalanced 1/4″ instrument-level output

Bodypack Transmitter

  • TA4M mic/line input connector
  • 25 dB adjustable gain range and a -20 dB pad to accommodate a wide variety of microphone and instrument levels
  • Manual frequency setting to match receiver
  • Frequency and power lockout to prevent accidents
  • Backlit LCD shows group, channel, battery power, and lockout status
  • Lightweight design
  • 9V battery provides up to 8 hours of continuous use

Cardioid Lavalier Mic Optimized for Speech

The WL185 lavalier condenser microphone is built for clear vocal reproduction when using a PA system.The mic features a cardioid polar pattern that rejects unwanted noise, Commshield RF Filtering to minimize RF interference from nearby smartphones, and a tailored frequency response optimized for speech intelligibility.

Improve Your Wireless Performance

Adding UA874 active antennas or PA805 passive antennas increases the range of your system and offers increased protection against interference.

The UA844+ antenna distribution system (available separately) lets you stretch the power of your antenna pairs, giving you more on-air channels in less setup time.

Add Functionality to Your System

Shure offers a variety of headset, instrument, and handheld microphone options to adapt your ULX system as your needs evolve.

  • The WL184 supercardioid lavalier mic offers a narrower, feedback-resistant pickup pattern for louder events
  • The discrete MX153 sub-miniature earset mic provides exceptional clarity in spoken word applications
  • The PGA31 is a comfortable, durable headset microphone for active performance
  • Instrumentalists can attach the WB98H/C flexible gooseneck instrument microphone for brass, woodwind, and percussion applications
  • The WA302 guitar cable lets you connect the bodypack transmitter to a guitar or bass
  • The ULX2 handheld transmitter is available with different mic capsules for presenters and performers who prefer the flexibility of a handheld microphone
SKU: ULXS14/85-J1 Category: Tag:

Shure ULXS14/85 Specs

System
Wireless Transmission Analog UHF
Number of RF Channels 1440
Included Transmitters 1 x Bodypack
Diversity Antenna Diversity
RF Frequency Band J1:
554 to 590 MHz
RF Bandwidth 36 MHz
Frequency Step Size 25 kHz
Max Operating Range 300′ / 91.4 m
Max Systems per Setup 40
Dynamic Range 100 dB
Deviation ±38 kHz
Receiver
Form Factor Tabletop
Mounting Options Rackmount (with Optional Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x 1/4 Wave External, BNC (Rear-Mount)
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Output
1 x 1/4″ Unbalanced Output
Audio Output Level -17 to +3.9 dBV (Mic Level, Line Level)
Frequency Response 25 Hz to 15 kHz ±2 dB
Impedance XLR Output:
1848 Ohms (Balanced)
30 Ohms (Balanced)
1/4″ Output:
1 Kilohms (Unbalanced)
Squelch Adjustable
Spurious Rejection: 75 dB
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 14 to 18 VDC (Included)
Display & Indicators LCD (AF Level, Channel, Group, Level, Metering, Sync, Transmitter Battery Status)
Housing Plastic
Operating Temperature -4 to 120°F / -20 to 48°C
Dimensions 8.4 x 1.7 x 6.4″ / 214 x 43 x 163 mm
Weight 37 oz / 1049 g
Transmitter 1
Transmitter
Form Factor Bodypack
RF Output Power 20 mW (30 mW Peak)
Audio I/O 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input
Pad 20 dB
Muting Off/On Switch
Audio Input Level +25 dBV (Instrument Level, Pad On)
Gain Range 25 dB
Antenna 1 x External, Fixed (Beltpack)
Power Requirements Battery
Battery Type 1 x 9V
Approx. Battery Life 9 Hours (Alkaline)
Display & Indicators 1 x Backlit LCD (Battery Status, Channel, Group, Power)
Dimensions 2.7 x 3.9 x 1.1″ / 68.6 x 99.1 x 27.9 mm
Weight 2.8 oz / 79 g (without Batteries)
Microphone
Form Factor Lavalier
Sound Field Mono
Capsule Electret Condenser
Polar Pattern Cardioid
Frequency Range 50 Hz to 17 kHz
Equivalent Noise Level 28 dB A-Weighted
Maximum SPL 130.5 dB SPL
Load Impedance 18 Kilohms
Sensitivity -45.5 dBV/Pa
Dynamic Range 102.5 dB
Operating Voltage 1.5 to 10 V
Packaging Info
Package Weight 4.5 lb
Box Dimensions (LxWxH) 18.4 x 14.6 x 3.8″
