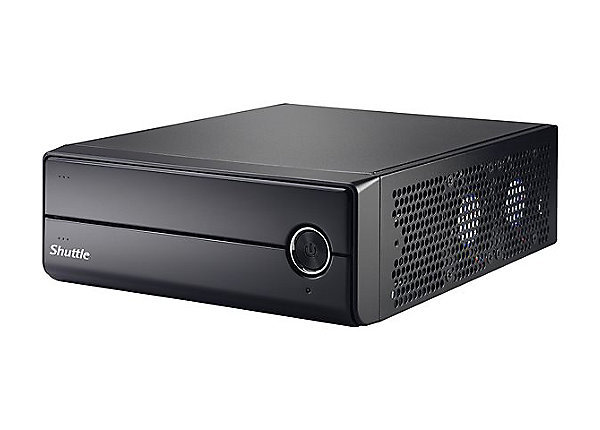

Shuttle XH97V – no CPU – 0 MB – 0 GB

The Shuttle XH97V, with its Intel H97 Chipset and 4th and 5th generation of Intel Core processor support, delivers power and performance needed in the most demanding work environment. The 3.5 Liter chassis enables a balanced platform for creating a solution that’s as powerful – or energy-efficient – as you want it to be to your office and business. The XH97V adds a new dimension to your video experience with built-in features included in 4th and 5th generation of Intel processors as well as new built-in 3D visuals, graphics, 4K ultra HD, and Intel WiDi which allows users to view content on an Intel WiDi-enabled TV Screen. The XH97V is specially designed to be business friendly with increased manageability and security. It supports Intel Small Business Advantage (Intel SBA) that allows users to monitor and maintain PC security, and helps prevent theft by blocking unwanted USB devices from being recognized on your PC. The XH97V also supports Intel Device Protection Technology with Boot Guard that helps block viruses and other malicious software from infecting your PC. With these security features in place, you can have a peace of mind knowing that your data is well-protected.

XH97V

An all-around performance PC fit for home, small office, and industrial use, the compact barebone XH97V delivers big performance from a small device. The device is just as suitable for low-noise home-media PC with support for 4K displays as it is for digital signage applications. The XH97V is capable of delivering Full HD multi-media content to up to three screens simultaneously, driving down the cost of additional media players for three-display digital signs. Built on Intel® H97 Express chipset technology, the system supports 4th Generation Haswell/Haswell Refresh 65W processors and dual channel DDR3 1600 with up to 16GB of memory. What’s more, the built-in heatpipe plus smart fan cooling system ensures quiet operation and maximum stability, making the XH97V a very reliable system for a wide range of applications.

Features

Support Intel 4th generation Core processors Featuring increased processing and graphics performance with support for Intel Haswell/Haswell Refresh 65W processors that integrate Intel® HD Graphics series core and DirectX 11.1.

Equipped with an Intel 9 series Chipset With integrated Intel® H97 Express Chipset, the XH97V supports dual channel DDR3 1600 with up to 16GB memory (8GBx2). The devices support Gigabit LAN, SATA 6Gbps, and USB3.0 interface for superb data transfer speed.

Supports an Optical Disk Drive (slim ODD) Perfect for home theatre or other environments where a Blu-ray disk drive is needed, the XH97V integrates an ODD bay.

Greater life cycle and system stability All the components of the highly integrated mainboard of this PC are fitted with modern solid capacitors, which offer six times the lifespan of normal capacitors and allow for operation in up to 50 ⁰C ambient temperatures.

Support 4K Ultra HD HDMI and DisplayPort video outputs support 4K high resolution (3840×2160). Now with four times the resolution of Full HD, viewers can enjoy the crystal clear imaging of 4K.

24/7 Certified Approved for 24/7 operation, the system uses smart fan and heat-pipe technology to keep things cool for extended periods of operation.

Connect with three Full HD monitors independently The XH97V delivers Full HD content on up to three independent screens via two display ports and one HDMI. This is great news for multi-display digital signage installers and those needing a three-screen workstation alike as it drives down the cost of an extra processor. Use an adaptor to convert HDMI into DVI interface and DisplayPort into HDMI or DVI interface for diversified signal selection. *For triple display: convert two DisplayPort signals into HDMI or DVI with one active and one normal DisplayPort to HDMI or DVI cable (adapter).

Heat pipe cooling technology The XH97V features Shuttle’s exclusive heat pipe cooling module with smart fan design. The precise vent design allows for constant air circulation between the inside and outside of the machine, resulting in high stability and low noise for long-term operation.

Supports an optional 3.5” HDD XH97V supports installation of an optional 3.5” HDD rack for increased storage through purchase of PHD4 accessory.  *Note: Installation of ODD is not compatible with 3.5” HDD configuration.

Add extra storage or an ODD

Users can install additional storage and/or a slim line ODD with the following configurations: A) Two 2.5” storage drives and a slim line ODD or B) three 2.5” storage drives (SSD/HDD)*
*Note: Installation of ODD is not compatible with three SSD/HDD configuration.

Processor
	Max Supported Qty:		1
	Type:		No CPU
	Upgradability:		Upgradable
	RAM
	Features:		Dual channel memory architecture , Unbuffered
	Form Factor:		SO DIMM 204-pin
	Installed Size:		0 MB
	Max Supported Size:		16 GB
	Technology:		DDR3 SDRAM
	OS Provided
	Type:		No operating system
	Service
	Support Details Full Contract Period:		3 years
	Support Details Type:		Limited warranty
	Audio Input
	Type:		None
	Audio Output
	Compliant Standards:		High Definition Audio
	Form Factor:		Integrated
	Sound Output Mode:		5.1 channel surround
	Bay Provided
	Form Factor:		5.25″ x 1/6H (Slim Line)
	Free Qty:		1
	Total Qty:		1
	Form Factor:		2.5″ x 1/6H
	Form Factor:		2.5″ x 1/8H
	Dimensions & Weight
	Depth:		9.4 in
	Height:		2.8 in
	Weight:		4.9 lbs
	Width:		7.9 in
	Display
	Type:		None.
	Environmental Parameters
	Humidity Range Operating:		10 – 90% (non-condensing)
	Max Operating Temperature:		122 °F
	Min Operating Temperature:		32 °F
	Header
	Brand:		Shuttle
	Compatibility:		PC
	Manufacturer:		Shuttle Comp Inter
	Model:		XH97V
	Packaged Quantity:		1
	Product Line:		Shuttle
	Interface Provided
	Location:		2 front, 2 rear
	Qty:		4
	Type:		USB 3.0
	Type:		USB 2.0
	Connector Type:		Mini-jack
	Location:		1 in front
	Qty:		1
	Type:		Microphone
	Type:		Audio line-out/headphones
	Type:		DisplayPort
	Type:		HDMI
	Type:		LAN (Gigabit Ethernet)
	Type:		Serial
	Type:		Audio line-out (rear)/microphone
	Type:		Audio line-out (center/subwoofer)/line-in
	Type:		eSATA-300
	Mainboard
	Chipset Type:		Intel H97 Express
	Processor Socket:		LGA1150 Socket
	Miscellaneous
	Color:		Black
	Color Category:		Black
	Compliant Standards:		BSMI , C-Tick , CB , Directive 73/23/EWG , Directive 89/336/EWG , EMI , Energy-using Products (EuP) Lot 6 , ETL , FCC , RoHS
	Features:		Security lock slot (cable lock sold separately) , UEFI BIOS
	Flat Panel Mount Interface:		100 x 100 mm , 75 x 75 mm
	Networking
	Data Link Protocol:		Ethernet , Fast Ethernet , Gigabit Ethernet
	Ethernet Controller(s):		Realtek RTL8111G
	Features:		PXE support , Wake on LAN (WoL)
	Form Factor:		Integrated
	Optical Storage
	Drive Type:		No optical drive
	Type:		None
	Optical Storage (2nd)
	Drive Type:		No optical drive
	Type:		None
	Power Device
	Frequency Required:		50/60 Hz
	Nominal Voltage:		AC 120/230 V
	Power Provided:		90 Watt
	Type:		Power adapter
	Printer
	Type:		None
	Slot Provided
	Free Qty:		1
	Total Qty:		1
	Free Qty:		2
	Total Qty:		2
	Storage Controller
	Channel Qty:		3
	Form Factor:		Integrated
	Installed Qty:		1
	Interface Type:		Serial ATA-600
	Type:		Serial ATA
	Storage Controller (2nd)
	Channel Qty:		1
	Controller Interface Type:		Serial ATA-300
	Form Factor:		Integrated
	Installed Qty:		1
	Type:		Serial ATA
	Storage Removable
	Type:		None
	System
	Hard Drive Capacity:		0 GB
	Type:		PC barebone
	Video Output
	Graphics Processor Vendor:		No graphics
	Service & Support
	Type:		3 years warranty
	Audio Output Details
	Speaker Type:		None
	Chassis
	Form Factor:		Ultra small form factor
	Manufacturer Form Factor:		Slim-PC
	Environmental Standards
	ENERGY STAR Qualified:		Yes
	Expansion Bays
	Form Factor (metric):		13.3 cm x 1/6H (Slim Line)
	Type:		External
	Form Factor (metric):		6.4 cm x 1/6H
	Type:		Internal
	Form Factor (metric):		6.4 cm x 1/8H
	Expansion Slots
	Type:		CPU
	Type:		SO DIMM 204-pin
	Type:		PCIe 2.0 Half Mini Card
	Type:		Mini PCIe 2.0/mSATA
	Hard Drive
	Type:		No HDD
	Hard Drive (2nd)
	Type:		None
	Hard Drive (3rd)
	Type:		None
