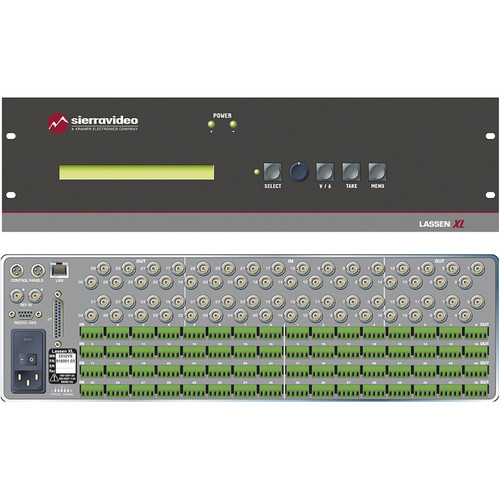

Sierra Video 3232VS-XL Lassen XL 32 x 32 Composite Video and Stereo Audio Routing Switcher

Add to Wishlist

AED33,099.00

Add to Wishlist

The Sierra Video 3232VS-XL Lassen XL 32 x 32 Composite Video and Stereo Audio Routing Switcher is designed for routing composite video and stereo audio signals. It features 32 inputs and 32 outputs, an LCD display, and a Qwik Adjust knob rotary control interface. The Lassen 3232VS-XL measures 3RU, and features BNC video connectors and 5-pin terminal block audio connectors. The Lassen XL also offers IP Ethernet control via a standard TCP/IP socket connection and a RS232/422 serial interface.

The Lassen XL routing switcher is designed to connect with other Sierra Video routing switcher families. The Lassen switcher can perform as either the master or the slave unit in your control system. The routing switcher can be inserted into an existing Sierra Video routing system providing additional format levels. Additional Lassen models can be linked to any Sierra Video SCP Series control panel for control of larger broadcast systems.

IP (Ethernet) Control via standard TCP/IP socket connection – Mac or PC
Enhanced Video Boards 300MHz (-3dB)
RS232/422 Control
Qwik Adjust Knob Rotary Control Interface – intuitive user interface with front panel LCD display
Genlock Input- looping internal sync input for vertical interval switching
Use with other Sierra Video Routing Switchers – functions as either the master or the slave unit when used with other Sierra Video routing switchers
SKU: LASSEN 32X32 CV+ST.AUD RTR 3RU Category: Tag:
Composite Video
Bandwidth
> 100 MHz (-3 dB)
Video Gain
Unity
Crosstalk
-80 dB @ 1 MHz
-47 dB @ 100 MHz
Switching Speed
Deterministic
Input/Output Signal
Video Level: 300 mV to 2.5V pp Max
Impedance: 75 Ω nominal
Return Loss: < -30 dB @ 5 MHz
Connector Type: BNC
Audio
Type
Analog Stereo
Input Adjust Range
+20.5 dB to -8 dB
Output Adjust Range
+15 dB to -59.5 dB, and fully off (MUTE)
Frequency Response
20 Hz – 20 kHz ± 0.5 dB (typical -3 dB @ 120 kHz) (unity gain)
Dynamic Range
96 dB (20 Hz to 20 kHz un-weighted) (unity gain)
Crosstalk
< -80 dB @ 1 kHz (unity gain)
< -60 dB @ 10 kHz (unity gain)
Total Harmonic Distortion (THD)
< 0.025% (20 Hz – 20 kHz @ +4 dBu) (unity gain)
Intermodulation Distortion
< 0.025% SMPTE-DIN @ +4 dBu (unity gain)
< 0.01% CCIF @ +16 dBu (unity gain)
Input Signal
Max Source Level: +24 dBu
Impedance: > 20 kΩ
Connector Type: 5-pin terminal block for balanced or unbalanced operation
Output Signal
Max Source Level: +24 dBu balanced
+18 dBu unbalanced
Impedance: < 50 Ω
Connector Type: 5-pin terminal block for balanced or unbalanced operation
Control
Control Panels
Supports SCP programmable control panels, XY & single bus control panels
Serial
General purpose 9-pin D-sub connector
Switchable RS-232 or RS-422
9600, 38400, 115200 baud
Serial Protocol
SVS host, simple Kramer
RS-485
Mini-XLR for optional control panels
Ethernet
10/100 Base-T, full-duplex
Connector: RJ-45
Ethernet Protocol
ARP, ICMP, TCP/IP, Telnet, HTTP
Web Server
For control interface
General
Power
90-240 VAC, 50/60 Hz (< 150 W) auto-detecting
Storage Temperature
40 to 150° F (4.4 to 65.5° C)
Operating Temperature
30 to 100° F ambient (-1.1 to 37.8° C)
Humidity
10% to 90 % non-condensing
Dimensions
19 x 18.5 x 5.25″ (48.3 x 46.9 x 13.3 cm)
Weight
34 lb (15.4 kg)
Packaging Info
Package Weight
38.365 lb
Box Dimensions (LxWxH)
27.7 x 25 x 12.7″
