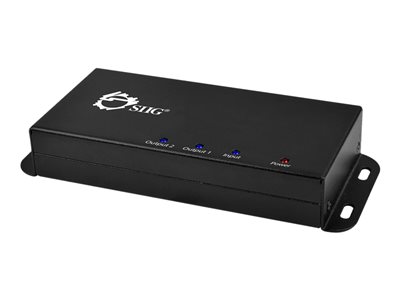

SIIG 4×2 HDMI 2-Port Splitter with 3D Supported – video splitter – 2 ports CE-H22B12-S1
Availability:
10 in stock
199.00 د.إ
10 in stock
Ce-H22B12-S1 4Kx2K Hdmi 4Port
Overview
SIIG’s 4Kx2K HDMI 2-Port Splitter with 3D Supported is designed to broadcast HDMI content from one HDMI source to 2 display units without signal distortion and degradation. It supports premium video quality with full scale display resolutions up to 4Kx2K, 3D video, HDMI Deep Color, and multiple digital audio formats including Dolby Digital, DTS-HD and Dolby TrueHD. It is easy and hassle-free to install with no software installation required. And it features automatic EDID learning ability to fully maximize the display unit’s compatibility. This HDMI 2-Port Splitter is a great device for digital signage deployment to broadcast high definition audio and video for both home and commercial applications.
- Supports HDMI v1.4, 3D, Full-HD and up to 4K UHD resolution
- Provides a wide range of applications for home entertainment, display signage, surveillance system, information center, conference meeting or presentation
- Works flawlessly with most HDMI-equipped source and destination devices such as PCs, Laptops, Blu-ray players, home theater systems, gaming stations, monitors, TVs, video projectors, etc
- Individual LED Indicator shows the connection status of each HDMI port
- Premium metal housing delivers superior heat dissipation for long life and stable operation in any environment
- Easy installation with no software installation needed
Specifications
General
| Device Type | Video splitter – 2 ports |
| Subtype | HDMI |
| Ports | 2 x HDMI |
| Max Resolution | 4096 x 2160 @ 30 Hz |
| Max Video Bandwidth | 340 MHz |
| Features | HDCP compliant, 3D support, 4K resolution support, metal housing |
| Processor | X Silicon Image 19187B |
Expansion / Connectivity
| Interfaces | 2 x HDMI output 1 x HDMI input |
Power
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
Miscellaneous
| Color | Black |
| Compliant Standards | FCC, RoHS |
Dimensions & Weight
| Width | 4.2 in |
| Depth | 0.8 in |
| Height | 2 in |
Manufacturer Warranty
| Service & Support | Limited warranty – 2 years |
Environmental Parameters
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 5 – 90% (non-condensing) |
| Min Storage Temperature | 5 °F |
| Max Storage Temperature | 158 °F |
| General | |
|---|---|
| Device Type | Video splitter – 2 ports |
| Features | HDCP compliant, 3D support, 4K resolution support, metal housing |
| Max Resolution | 4096 x 2160 @ 30 Hz |
| Max Video Bandwidth | 340 MHz |
| Ports | 2 x HDMI |
| Processor | X Silicon Image 19187B |
| Subtype | HDMI |
| Dimensions & Weight | |
|---|---|
| Depth | 0.8 in |
| Height | 2 in |
| Width | 4.2 in |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating | 5 – 90% (non-condensing) |
| Max Operating Temperature | 131 °F |
| Max Storage Temperature | 158 °F |
| Min Operating Temperature | 14 °F |
| Min Storage Temperature | 5 °F |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 2 x HDMI output ¦ 1 x HDMI input |
| Manufacturer Warranty | |
|---|---|
| Service & Support | Limited warranty – 2 years |
| Miscellaneous | |
|---|---|
| Color | Black |
| Compliant Standards | FCC, RoHS |
| Power | |
|---|---|
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
