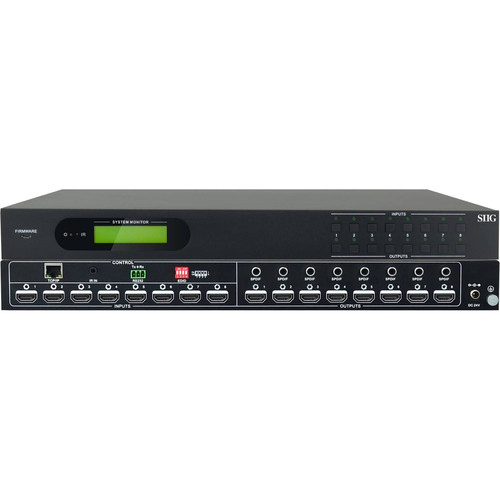

SIIG HDMI 2.0 8×8 Matrix Switcher

Add to Wishlist
  • 8 x HDMI Inputs / 8 x HDMI Outputs
  • 8 x RCA S/PDIF Outputs for De-Embedding
  • Up to 4K x 2K/60 Hz YUV 4:4:4, HDR, 3D
  • On-Board, TCP/IP, RS-232, IR Control
  • Web-Based GUI for TCP/IP Control
  • Real-Time Status LCD
  • HDCP 2.2
  • DIP Switch EDID Management
  • Metal Housing

AED7,799.00

Add to Wishlist

TheĀ SIIG HDMI 2.0 8×8 Matrix SwitcherĀ features eight HDMI inputs, eight HDMI outputs, and eight RCA S/PDIF outputs for de-embedding the HDMI audio. It supports up to 4K x 2K/60 Hz YUV 4:4:4 resolution, HDR, and 1080p 3D signals. The HDMI cable distance supported is 16.5′. The switcher can be controlled using onboard 8×8 matrix buttons, an IR remote control, RS-232, or TCP/IP via a web-based GUI. An LCD on the front panel confirms the matrix configuration status in real time. EDID is managed via a 4-pin DIP switch.

Key Features
  • 8 x HDMI inputs
  • 8 x HDMI outputs
  • 8 x RCA S/PDIF outputs
  • Up to 4K x 2K/60 Hz YUV 4:4:4 resolution, HDR, and 1080p 3D signals
  • HDMI output distance: 16.5′
  • Real-time status LCD
  • TCP/IP RJ-45 and terminal block RS-232 control
  • Web-based GUI for TCP/IP control
  • IR input
  • HDCP 2.2
  • DIP switch EDID management
  • Metal housing
  • Firmware upgradeable via a micro-USB port
SKU: CE-H23X11-S1 Category: Tag:
Processing
Switching Type
Pushbutton
Input
Video Inputs
8x HDMI (2.0)
Input Video Format
HDMI (4:4:4 YUV)
UHD 4K at 60 fps
Output
Video Outputs
8x HDMI (2.0)
Output Video Format
HDMI (4:4:4 YUV)
UHD 4K at 60 fps
Audio Outputs
8x RCA S/PDIF
Connectivity
Other I/O
1x RJ45 LAN, Control
1x Block 3-Pin RS-232, Control
1x 1/8″ / 3.5 mm IR, Control
1x Micro-USB Firmware
HDCP Support
Yes, Version 2.2
Display
Wi-Fi
No
Bluetooth
No
Power
Power I/O
1x Barrel (24 VDC at 2.7 A) Input
Power Consumption
Device: 21 W
Power Supply: 100 to 240 VAC at 2.7 A
Environmental
Operating Temperature
14 to 131Ā°F / -10 to 55Ā°C
Storage Temperature
-4 to 140Ā°F / -20 to 60Ā°C
General
Certifications
CE, FCC, RoHS
Dimensions
17.2 x 9.33 x 1.73″ / 43.7 x 23.7 x 4.4Ā cm
Weight
4.01Ā lb / 1.82Ā kg
Packaging Info
Package Weight
7.54 lb
Box Dimensions (LxWxH)
21.2 x 13.4 x 5.7″
