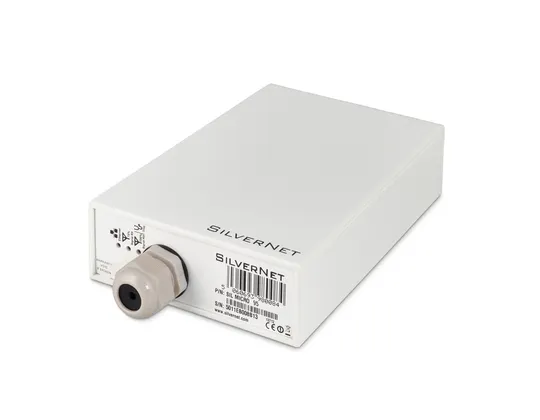

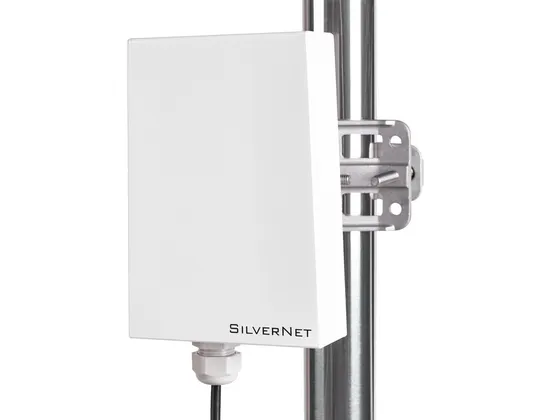

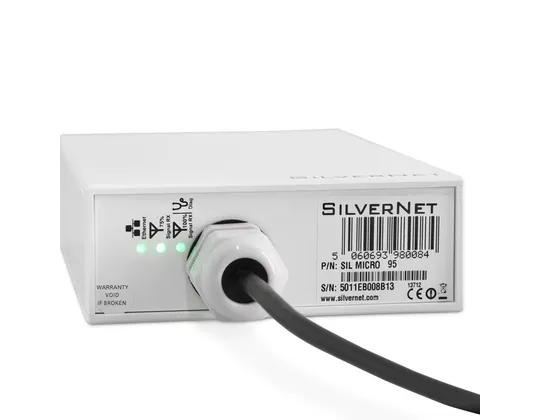

SilverNet SIL MICRO PCP bridge/repeater Network bridge 100 Mbit/s Black, White


100Mbps, MIMO, 5.1-5.8 GHz, 26 dBm, 14 dBi, RJ-45, PoE, 179x120x45mm, pre-configured

AED5,899.00

Highlights

Nominated for ‘Security Product of the Year 2012’, due to it’s high MTBF and robust design, the MICRO has always been a great choice for harsh environments that need high reliability. The simplicity of installation and full integration into our Free NMS ‘SilverView’ make this the go-to product for professional CCTV and network installers. Clients can quickly build up stable Point to Point or Point to MultiPoint outdoor wireless broadband access systems for “Last mile access” at low cost. The MICRO range is used in CCTV and data networks extensively where reliability and ease of installation is paramount. The amazingly small form factor of the MICRO will benefit locations where the radio needs to be unobtrusive. (16.4 x 12.3 x 4.5 cm). Available in Standard White or Carbon Black to fit into street scenery. Other colours available on special order. This radio is part of the SilverNet PRO Range. The PRO Range is a family of class leading, wireless outdoor bridge solutions that have been optimised for long transmission distances and designed to be extremely compact and rugged. The PRO Range will save money, while servicing the need to construct a solid and reliable wireless system replacing the requirement for expensive lease lines.

SKU: SIL MICRO-PCP Category: Tag:
Feature Details
Maximum data transfer rate 100 Mbit/s
Maximum transfer distance 2000 m
Supported data transfer rates 100, 240, 500Mbps
Antenna type Internal
Antenna gain level (max) 14 dBi
Antennas quantity 1
Wi-Fi Y
Wi-Fi band Single-band (5 GHz)
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max) 1300 Mbit/s
Frequency band 5.1 – 5.8 GHz
Transmission gain 0 – 14 dB
Signal strength -40 dBm
Channels quantity 25 channels
Modulation 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
Receiver sensitivity -82dBm@54Mbps, -74dBm@300Mbps, [email protected]
Output power (dBm) 26
Indoor range 2000m
Outdoor range 2000m
Ethernet LAN Y
Ethernet LAN interface type Gigabit Ethernet
Ethernet LAN data rates 10,100,1000 Mbit/s
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af
Cabling technology 10/100/1000Base-T(X)
Full duplex Y
Auto MDI/MDI-X Y
Static IP Y
Dynamic IP Y
Connectivity technology Wired & Wireless
Ethernet LAN (RJ-45) ports 1
Security algorithms 256-bit AES, 802.1x RADIUS, SNMP, SNMPv2
MAC address filtering Y
Authentication method WPA2 AES
Management protocols SNMP V2
Web-based management Y
DHCP client Y
Product type Network bridge
Product colour Black, White
Remote control function Y
LED indicators LAN, Signal strength
Automatic Transmit Power Control (ATPC) Y
Wall mountable Y
Reset button Y
International Protection (IP) code IP66
Surge protection Y
Quality of Service (QoS) support Y
Network Time Protocol (NTP) client Y
Mean time between failures (MTBF) 60000 h
Country of origin United Kingdom
Minimum system requirements Internet Explorer, Google Chrome, Mozilla Firefox
Compatible operating systems Microsoft Windows, Mac OS, Linux Distributions
Power source type DC, PoE
AC input voltage 100-240 V
Power supply 15.4 W
DC input voltage 24-48/48-56 V
Power consumption (typical) 6 W
Power consumption (max) 16 W
Power over Ethernet (PoE) Y
Power over Ethernet (PoE) voltage 48 V
Power plug type Type G
Operating temperature (T-T) -20 – 70 °C
Operating temperature (T-T) -4 – 158 °F
Operating relative humidity (H-H) 0 – 95%
Storage temperature (T-T) -40 – 90 °C
Storage relative humidity (H-H) 0 – 95%
Certification CE, FCC
Antenna diameter 20.5 cm
Width 179 mm
Depth 120 mm
Height 45 mm
Weight 500 g
PoE+ Injector(s) Y
Mounting bracket(s) included Y
Power supply included Y
Antenna included Y
Quick installation guide Y
Package width 290 mm
Package depth 115 mm
Package height 320 mm
Package weight 3.12 kg
Package type Box
Quantity per pack 2 pc(s)
UK Trade Tariff code 85176200
