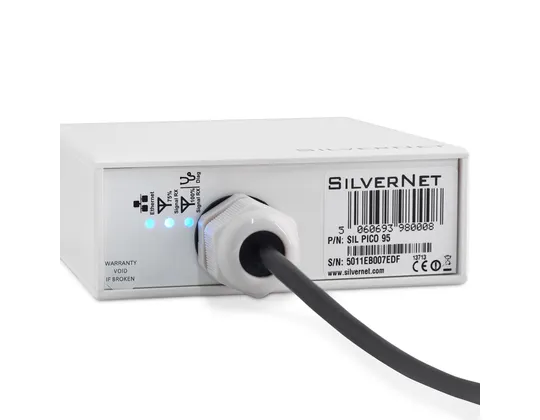

SilverNet SIL PICO PCP bridge/repeater Network bridge 100 Mbit/s White

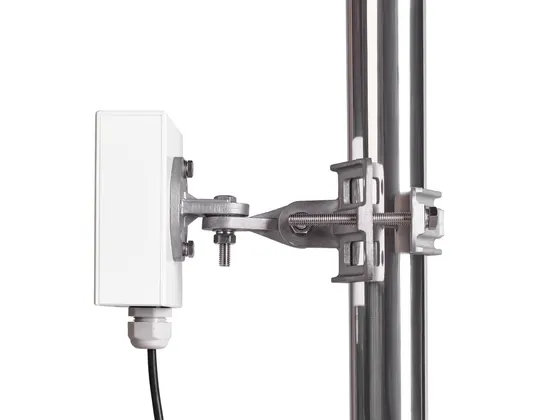

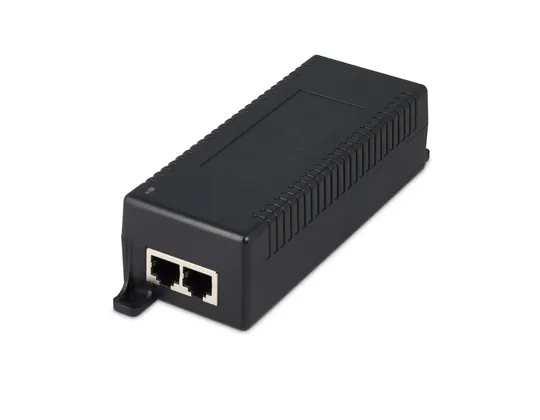

100Mbps up to 1km complete radio link. Built in dual polarised antenna, Full duplex with up to 100Mbps usable bandwidth Includes 2 x radios, 2 x PoE injector PSU’s and 2 x Basic brackets
AED4,599.00
Highlights
The ‘SIL PICO’ is the perfect choice for clients who need to build up a quick, compact and stable Point to Point outdoor wireless broadband access system for “Last miles access” at low cost. Its compact size and ease of installation make it ideal for urban CCTV and short range data connections up to 1KM. The amazingly small form factor of the SIL PICO will benefit locations where the radio needs to be unobtrusive. (11.9 x 12.3 x 4.4 cm). The PICO contains an integrated 12dBi dual-polarised antenna which enables high directivity transmission, comparatively for its size, for use in clustered urban environments. This radio is part of the SilverNet PRO Range. The PRO Range is a family of class leading, wireless outdoor bridge solutions that have been optimised for long transmission distances and designed to be extremely compact and rugged. Couple that with the FREE SilverView network monitoring software and you have an outstanding feature packed solution. The PRO Range will save money, while servicing the need to construct a solid and reliable wireless system replacing the requirement for expensive lease lines.
| Feature | Details |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Maximum transfer distance | 1000 m |
| Supported data transfer rates | 100, 240, 500 Mbps |
| Antenna type | Internal |
| Antenna gain level (max) | 12 dBi |
| Pan/tilt-axis range | 180° |
| Antennas quantity | 1 |
| Wi-Fi | Y |
| Wi-Fi band | Single-band (5 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| Frequency band | 5.1 – 5.8 GHz |
| Transmission gain | 0 – 12 dB |
| Signal strength | -40 dBm |
| Channels quantity | 25 channels |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Receiver sensitivity | -82 dBm @54 Mbps, -74 dBm @300 Mbps, -68 dBm @1.3 Gbps |
| Output power (dBm) | 26 |
| Indoor range | 1000 m |
| Outdoor range | 1000 m |
| Ethernet LAN | Y |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af |
| Cabling technology | 10/100/1000Base-T(X) |
| Full duplex | Y |
| Auto MDI/MDI-X | Y |
| Static IP | Y |
| Dynamic IP | Y |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 1 |
| Security algorithms | 128-bit AES, 256-bit AES |
| MAC address filtering | Y |
| Authentication method | WPA2 AES |
| Management protocols | SNMP V2 |
| Web-based management | Y |
| DHCP client | Y |
| Product type | Network bridge |
| Product colour | White |
| Remote control function | Y |
| LED indicators | LAN, Signal strength |
| Automatic Transmit Power Control (ATPC) | Y |
| Wall mountable | Y |
| Reset button | Y |
| International Protection (IP) code | IP66 |
| Surge protection | Y |
| Quality of Service (QoS) support | Y |
| Wi-Fi Multimedia (WMM)/(WME) | Y |
| Network Time Protocol (NTP) client | Y |
| Mean time between failures (MTBF) | 60000 h |
| Country of origin | United Kingdom |
| Minimum system requirements | Internet Explorer, Google Chrome, Mozilla Firefox |
| Compatible operating systems | Microsoft Windows, Mac OS, Linux Distributions |
| Power source type | PoE |
| AC input voltage | 100-240 V |
| Power supply | 15.4 W |
| DC input voltage | 24 – 48 V |
| Power consumption (typical) | 6 W |
| Power consumption (max) | 16 W |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) voltage | 48 V |
| Power plug type | Type G |
| Operating temperature (T-T) | -20 – 70 °C |
| Operating temperature (T-T) | -4 – 158 °F |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage temperature (T-T) | -40 – 90 °C |
| Storage relative humidity (H-H) | 0 – 95% |
| Certification | CE, FCC |
| Antenna diameter | 16.5 cm |
| Width | 119 mm |
| Depth | 120 mm |
| Height | 45 mm |
| Weight | 300 g |
| PoE+ Injector(s) | Y |
| Mounting bracket(s) included | Y |
| Power supply included | Y |
| Antenna included | Y |
| Quick installation guide | Y |
| Package width | 290 mm |
| Package depth | 115 mm |
| Package height | 320 mm |
| Package weight | 2.16 kg |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| UK Trade Tariff code | 85176200 |
