Power Supply

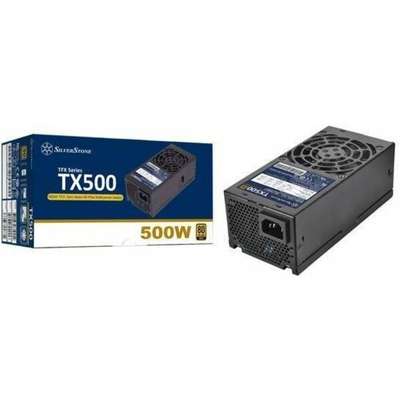

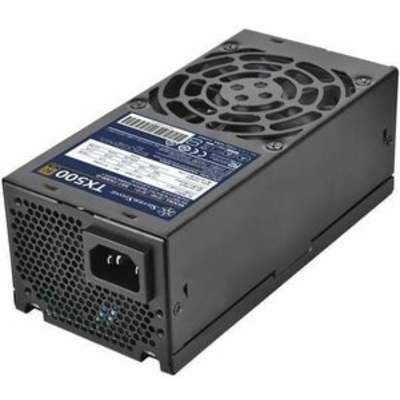

Silverstone PS SST-TX500-G 500W 80+Gold Active PFC TFX Black
- Support standard TFX form factor
- 500W continuous power output at 50°C operating temperature rated for 24/7 operation
- High efficiency with 80 PLUS Gold certification
- Silent running 80mm fan with 18 dBA minimum
- Multiple protection circuitry
- Single PCI-E 6+2pin connectors support
AED1,099.00
Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity. Built-in 80mm fan has excellent airflow and low noise, perfect for quiet home or office use. Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.
Advanced protections for safety and security
- Over current protection
- Over power protection
- Over voltage protection
- Short circuit protection
- Under voltage protection
- Over temperature protection
| Category | Specification |
|---|
| General Information |
| Product Name | Silverstone PS SST-TX500-G 500W 80+Gold Active PFC TFX Black |
| Product Model | SST-TX500-G |
| Product Type | Power Supply |
| Technical Information |
| Efficiency | 90% |
| Power Factor Correction (PFC) | Active |
| Number of Fans | 1 |
| Fan Bearing Type | Hydro Dynamic Bearing |
| Fan Diameter | 80 mm |
| Protection Type | Over Current, Over Power, Over Voltage, Short Circuit, Under Voltage, Over Temperature |
| Interfaces/Ports |
| Number of SATA Power Connectors | 4 |
| PCI Express Connector | Yes |
| Number of (6+2 pin) PCI Express Power Connectors | 2 |
| Number of (4+4 pin) CPU Power Connectors | 1 |
| Environmental Conditions |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Power Description |
| Input Voltage | 120 V AC, 230 V AC |
| Number of +12V Rails | 1 |
| Output Voltage | 3.3 V DC, 5 V DC, 12 V DC, -12 V DC, 5 V SB |
| Output Voltage Detail | 3.3 V DC @ 18 A, 5 V DC @ 18 A, 12 V DC @ 41.6 A, -12 V DC @ 0.3 A, 5 V SB @ 2.5 A |
| Output Power | 500 W |
| Reliability |
| MTBF | 100,000 Hours |
| Physical Characteristics |
| Color Family | Black |
| Product Color | Black |
| Form Factor | TFX |
| Height | 2.6″ |
| Width | 3.3″ |
| Depth | 6.9″ |
| Miscellaneous |
| Energy Efficiency Certification | 80 Plus Gold |
| Environmental Compliance | China RoHS, RoHS, WEEE |
| Other Information |
| Input Frequency | 63Hz |
