Smart-Avi 4 Port 4K Dual Monitor DisplayPort 1.2 KVM Switch with USB Hub
30 in stock
AED2,899.00
30 in stock
4 Port 4K Dual Monitor DisplayPort 1.2 KVM Switch with USB Hub
The SmartAVI DPN-4Duo is a dedicated multi-platform 4K KVM switch capable of managing four dual-head computers through two DisplayPort monitors, one USB keyboard, one USB mouse, and other USB 2.0 devices. The dual-head compatibility of the switch enables increased workflow capabilities. DisplayPort is one of the latest options in screen connectivity that delivers top quality highdefinition video, and this device is DisplayPort 1.2 complant with support for screen resolutions up to 3840×2160 (@30Hz). HDMI and DVI video connections are supported with the proper video converters, and the device is backwards compatible with prior DisplayPort versions.

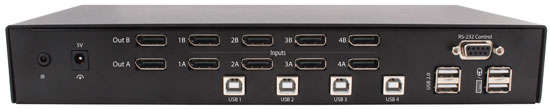

DPN-4Duo Rear
The DPN-4Duo provides a simplified management approach for four DisplayPort equipped computers USB 2.0 outputs for a keyboard, mouse and other USB peripheral devices such as a printers and flash drives. This dynamic KVM console can be controlled keyboard Hot Keys or RS-232 commands, as well as directly through the console’s easy-to-read front panel. EDID Pass-Through technology enables smooth and efficient switching, making the device easy to implement in virtually any scenario.
DPN-4Duo Features
- Switch KVM control on four connected dual-head computers from one workstation with two DisplayPort monitors
- Supports resolutions up to 3840×2160 (@30Hz)
- DisplayPort 1.2 compliant
- Zero pixel loss with TMDS signal correction
- Supports all USB 2.0 devices, including keyboard and mouse
- Supports Windows, Mac and Linux
- Rack mountable in a standard 19 inch rack
- Supports control via RS-232
- Hot key commands for quick channel selection
- Independent (asynchronous) switching of KVM and peripheral USB ports. Users can scan a document and save in another computer
- Complete keyboard emulation for error free booting
- Front panel keys for manual switching
- HDMI and DVI supported with adaptors, backwards compatible with prior DisplayPort versions

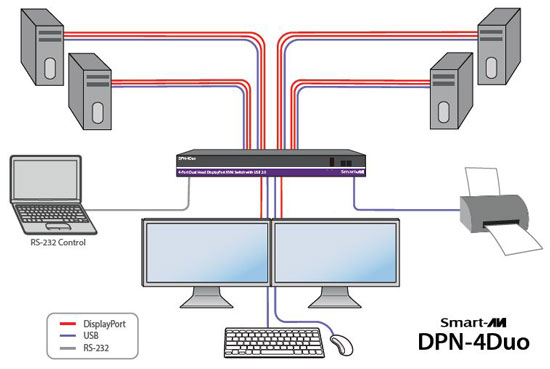

DPN-4DUO-S Application Diagram
SmartAVI DPN-4DUO-S (DPN-4Duo System) Package Includes: DPN-4Duo & PS5VDC4A Power Sypply
SmartAVI DPN-4Duo-S Specifications:
| Video | |
| Format | DisplayPort 1.2 |
| Link Rate | 5.4 Gbps/lane |
| Input Interface | (8) DisplayPort (female) |
| Output Interface | (2) DisplayPort (female) |
| Resolution | Up to: 3840×2160 (@30Hz)- UHD 4K |
| DDC | Faux transaction mode option over Aux channel |
| Input Equalization | Automatic |
| Bandwidth Frequency | 10.2 Gbps |
| USB | |
| Signal Type | USB 2.0, 1.1, and 1.0 w/ internal Hub |
| Input Interface | (4) USB Type B (female) |
| Output Interface | (2) USB 1.1 Type A (female) for keyboardand mouse (2) USB 2.0 Type A Transparent |
| Control | |
| Front Panel | Tactile Switches |
| RS-232 | Via Control @ 9600 bps |
| Hot Keys | Via Keyboard |
| Emulation | Keyboard and Mouse only |
| Other | |
| Power | External 100-240 VAC/ 5VDC4A @ 20W |
| Consumption | 20 W (Max) |
| Dimensions | 1.75″H (1U) x 6″D x 12″W |
| Weight | 4 lbs |
| Approvals | UL, CE, ROHS Compliant |
| Operating Temp. | 23 to 95 F (-5 to 35 C) |
| Storage Temp. | -4 to 185 F (-20-85 C) |
| Humidity | 5 to 90% (No Condensation) |
| Weight | 1.09 kg |
|---|
