4-Port Digital Audio Switch with Analog Converter

The SMA-AD400 enables users to convert four digital audio signals to an analog stereo RCA and 3.5mm output, along with an SPDIF digital output. Today’s video and audio devices – including Blu-ray players, gaming consoles and others – often come with digital audio outputs. However, not all stereos, home theatres and PA systems are equipped for digital audio. The SMA-AD400 is an inexpensive and compact converter that makes digital audio signals compatible with the most common analog audio connectors, RCA and 3.5mm. With four inputs, two outputs and a button for switching, this unit delivers lots of flexibility. The device is plug-and-play ready and small enough to fit nearly anywhere.

Features:

• Two Toslink digital audio inputs and two Coaxial digital audio inputs
• One Toslink digital audio output, one RCA stereo output and one 3.5mm headphone output
• Supports 192KHZ/24bit DAC
• Supports Dolby AC3, DTS, THX, HDCD and LPCM for SPDIF output
• Automatic identification of input signal format
• Input status indication for easy trouble shooting

Applications:

• Home Theatre
• Control Rooms
• Production Studios
• PA Systems
• A/V Presentations
• Meeting Rooms

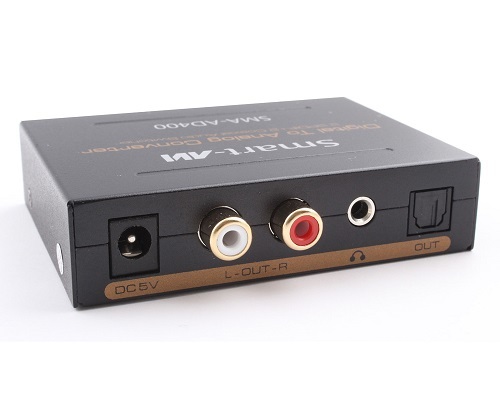

SMA-AD400 BackView

SMA-AD400 Diagram

Specifications:
