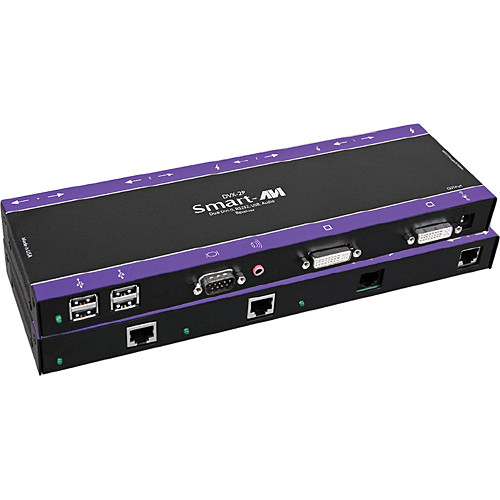

Smart-AVI DVX-2P Receiver


Key Features
  • Multiple Signal Reception up to 275′
  • External Power Supplies for RX
  • Stereo Audio / RS-232 Signals
  • Signal Reception via CAT6 Cables
  • Supports up to 2 DVI-D Sources
  • Supports 1.5 / 12 Mbps Data Transfer

AED2,099.99

TheĀ Smart-AVI DVX-2P ReceiverĀ offers multiple signal reception at distances up to 275′ while retaining clear image and audio quality. An external power supply for the receiver is also included. Using CAT6 STP cables, you can also receive DVI-D, USB 1.1, Stereo Audio, and RS-232 signals over long distances.

Smart-AVI DVX-2PĀ Overview

TheĀ Smart-AVI DVX-2P ReceiverĀ offers multiple signal reception at distances up to 275′ while retaining clear image and audio quality. An external power supply for the receiver is also included. Using CAT6 STP cables, you can also receive DVI-D, USB 1.1, Stereo Audio, and RS-232 signals over long distances.



You can use up to 2 DVI-D sources, and achieve data transfer rates of 1.5 and 12 Mbps using the DVX-2P Receiver. Wide compatibility is offered for all operating systems and KVM switches along with full compliance to USB 1.1 standards. You can use the DVX-2P Receiver in medical, education, military, and entertainment applications where close proximity between displays and workstations needs to be avoided.

Provides multiple signal reception up to 275′ while still retaining clear image and audio quality
Includes external power supply for receiver
Provides DVI-D, USB 1.1, Stereo Audio, and RS-232 signal reception via CAT6 STP cables
Supports 2 DVI-D sources
Allows you to achieve 1.5 and 12 Mbps data transfer rates
Compatibility for all operating systems and KVM switches
Provides full compliance with USB 1.1 standards
Can be used in medical, education, military, and entertainment applications where close proximity between displays and workstations needs to be avoided
SKU: DVX-2P-RXS Category: Tag:

Smart-AVI DVX-2PĀ Specs

General
Inputs/Outputs Receiver:
1 x DVI-DInput
1 x DVI-DOutput
1 x DE-9/DB-9 (RS232)Output
4 x USB-A 1.1Output
Supported Resolutions 1024 x 720
640 x 480
1920 x 1200 @ 60 Hz
1280 x 1024 @ 75 Hz
Maximum Transmission Distance 275′ / 83.8Ā m
Transmission Method CAT6 Cable
Audio Channels Supported 2-Channel Stereo
Impedance 10K Ohms (Audio)
Performance
Bandwidth 1.65 Gbps
15 MHz at 0 dB (Audio)
Physical
Dimensions 10.8 x 3.4 x 1.1″ / 274.0 x 86.0 x 28.0Ā mm
Weight 8.0Ā lb / 3.6Ā kg
