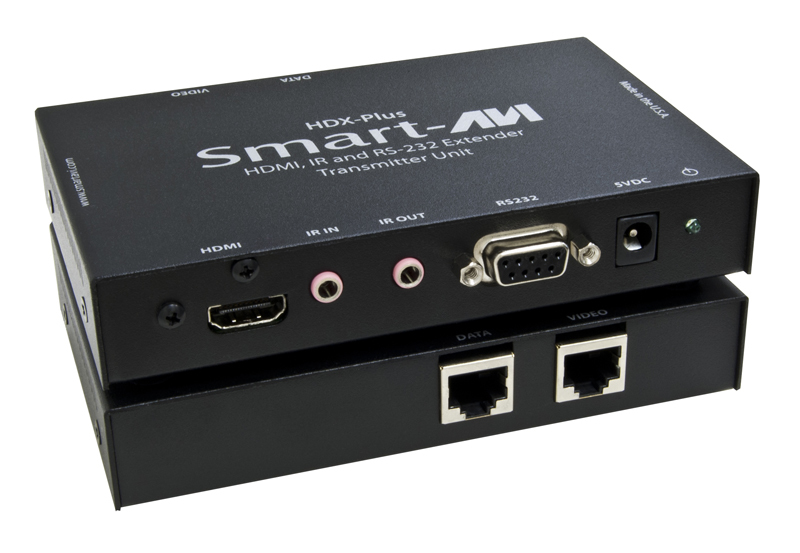

HDMI, IR, RS-232 Point to Point CAT5 Extender Transmitter

The HDX-Plus uses two CAT5 UTP/STP cables to extend HDMI signals such as HDTV output over 200ft (60m) from the source. It is capable of transmitting high-resolution HD video up to 1080p. Controlling your video source is easy with the HDX-Plus’ bi-directional IR and RS-232 extension. Whether it’s for a home entertainment system or a commercial installation, the HDX-Plus delivers flexibility and control.
*Replaces the HDX-1000
*Transmitter Only.

Applications

• Home theater
• Corporate/educational presentations
• Call centers
• Industrial (long range workstation isolation)
• Information Terminals/Kiosks
• Airport Installations
• Educational Environments with remote displays

Features

• Extends HDMI output over two CAT5/5e/6 UTP/STP cable
• Extends IR and RS-232 control signals for remote control
• Delivers uncompressed HD video up to 1080p@60Hz@48bits and 3D
• Data signals up to 3.4Gbps
• HDMI 1.3 and HDCP compliance
• IR and RS-232 communication are bi-directional
• Transmits high-quality Dolby TrueHD, DTS-HD MA audio signals
• Transmits 1080p resolution over 200 feet (60 meters) from the source

SmartAVI HDX-PLUS Transmitter Specifications
