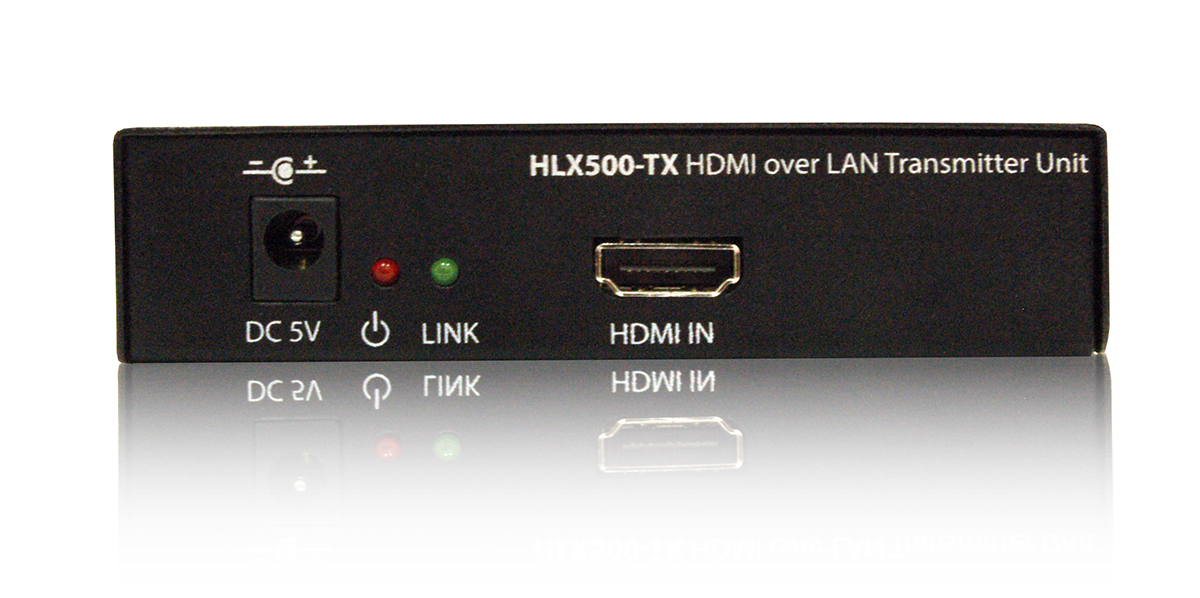

Smart-Avi HDMI, LAN or CAT5e/6 Transmitter

Availability:

30 in stock


699.00 د.إ

30 in stock

HDMI, LAN or CAT5e/6 Transmitter

The HLX-500 HDMI Transmitter gives users the freedom to extend HDMI signals via LAN, using inexpensive Cat5e/6 cables that many modern communications already rely on. This chainable extender can be used to generate thousands of feet of HDMI signal extension, breaking distance barriers. Users can set up their own extension cabling or utilize the pre-existing LAN infrastructure they have access to. Each unit extends signals up to 500 feet. With no software or driver required, users can easily extend HDMI signals such as HDTV, Blu-Ray, video game consoles and more. HLX-500 supports 1080p HD video up to 1920×1080 resolution at 60Hz and is Infrared Remote enabled.Ā Ā

The HLX-500 compresses data to utilize Cat5e/6 cables, but users will see no degradation of signal when using one gigabit Internet connections and up. For users utilizing pre-existing LAN connections, implementing a one gigabit switch allows for full resolution extension. Users with smaller bandwidth will experience compressed signals, if they so choose.

Applications

  • Extends HDMI signal up to 500 feet via LAN (Cat5e/6 cables)
  • Chainable for thousands of feet of extension
  • Supports high resolution 1080p HD video, 1920×1080 at 60Hz
  • Supports stereo audio
  • IR (Infrared) remote enabled
  • Bracket mountable
  • No software or driver required
  • Plug-and-Play ready

Features

  • Extends HDMI signal up to 500 feet via LAN (Cat5e/6 cables)
  • Chainable for thousands of feet of extension
  • Supports high resolution 1080p HD video, 1920×1080 at 60Hz
  • Supports stereo audio
  • IR (Infrared) remote enabled
  • Bracket mountable
  • No software or driver required
  • Plug-and-Play ready

diagram

SmartAVI HLX-500 Transmitter Specifications

Mechanical Ā
Height 1 in. (2.54 cm)
Width 4 in. (10.16 cm.)
Depth Ā 4.35 in. (11.04 cm.)
Format HDMI 1.3 and HDCP compliant
HDTV Resolutions 480p,720p,1080i, 1080p, 60Hz/48bit
TV Resolution 480i
Input Interface (TX) HDMI Type A 19-pin Female TMDS
Input Cable Length (TX) Up to 40 ft
Audio Format Dolby TrueHD, DTS-HD MA
Input/Output Interface HDMI
IR Signal Type 38 KHz
IR Interface 3.5 mm Jack socket
RS-232 Baud Rate Up to 19,200 bps
RS-232 Input Interface DB-9 (Serial)Female
Power External 100-240 VAC/5VDC2A @10W



SKU: HLX-TX500 Category: Tags: , ,
Dimensions 4.35 × 4 × 1 cm
