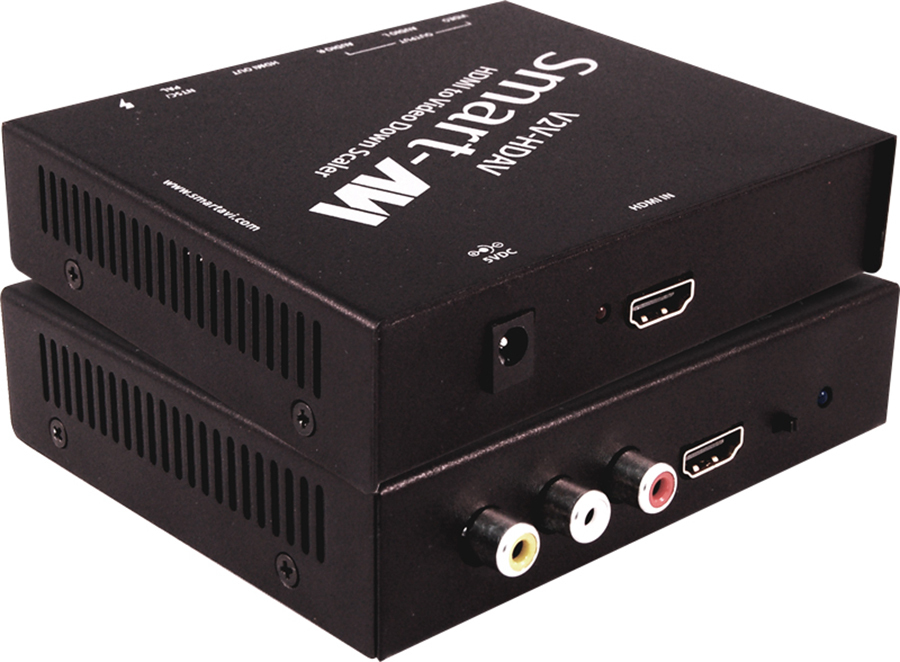

Smart-Avi HDMI to AV Converter- Down-scaler
Smart-Avi HDMI to AV Converter- Down-scaler

Smart-Avi HDMI to AV Converter- Down-scaler

Availability:

30 in stock
Add to Wishlist

AED999.00

30 in stock

Add to Wishlist

HDMI to AV Converter- Down-scaler

The V2V-HDAV takes an HDMI input and downscales the signal to a composite video signal, allowing users to bridge the gap between the latest advances in HD signals and the older displays and audio receivers that many systems still rely on and use effectively

Applications

  • Video Conferencing
  • Video Capture
  • Video Walls
  • Education
  • Security Systems
  • Video Modulation
  • Multimedia Presentations
  • Video Installation

Feature

  • Hardware conversion, plug and play without any software driver
  • HDMI1.3 compatible
  • Support NTSC and PAL two standard TV formats
  • One HDMI input, one HDMI output, one AV output, one stereo output
  • HDMI input: 480P, 576P, 720P, 1080I, 1080P @ 60Hz
  • Compatible with DVI mode 800×600,1024×768,1280x,720,1280×1024,1920×1080/@60hz
  • Supports the HDCP protocol
  • Support for HDMI 1.3
  • CVBS output: 480i, 576i

diagram

SmartAVI V2V-HDAV Specifications

Mechanical
Height 1.12 in. (2.84 cm)
Width 4.75 in. (12.06 cm.)
Depth  4 in. (10.16 cm.)
Video Amplifiter Bandwidth 3.2G
Input Ports 1x HDMI
Input Video Signal Video (TMDS) 0.5~1.0 Vpp
Output Ports 3xRCA, 1xHDMI
Signal Supports HDMI Standard, DVI and HDCP compliant
Pixel Rates Clock frequency beyond 165 Mpix/second
Input DDC Signal 5 volts
Format 4:4:4 NS 4:2:2 data input formats
Resolution 480,720p,1080i, HDMI formats



SKU: V2V-HDAVS Category: Tags: , ,
Dimensions 4 × 4.75 × 1.12 cm
