Smart-Avi Hds4ps 4-Port Hdmi Splitter

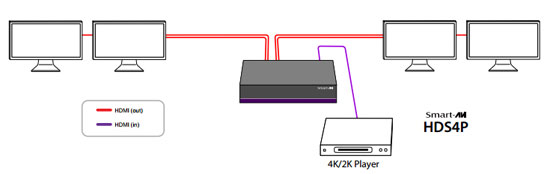

The HDS4P HDMI splitter gives users the ability to take a single HDMI input and route it to four displays. With no loss of signal quality and a simple, hardware-only implementation, the HDS4P is the easiest and most cost-effective way to get a stunning HD signal to four displays simultaneously and instantly. There’s no need for multiple source devices for multiple HD displays when using this handy splitter.

The HDS4P splitter delivers up to 10.2 Gbps data throughput and supports exciting HDMI features like 3D video and the latest in amazing 4K resolution. That means users are always getting top-quality video from the device.

*Also known as HDS-4P3D, HDS4P3D, HDS-4P and HDS-4PS

• Ultra HD | 4K (4096×2160) Resolution and Full 3D
• One HDMI 1.4 input signal split to four HDMI 1.4 sink devices
• HDCP 1.3 protocol compliant
• Supports CEC
• Supports deep color 30bit, 36bit
• Supports Blu-ray players
• Digital audio format, with DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
• Supports signal retiming
• Input up to 50 feet AWG26 HDMI 1.3 standard cable length
• Output up to 80 feet AWG26 cable length
• No loss of quality
• Hardware-only solution

Applications

• Restaurant/Bar
• Home Entertainment
• Wall Displays
• Digital Media
• Airports
• Dealer Rooms
• Control Rooms
• Audio/Visual Presentations
• Shopping Centers
• Security
• Point-of-Sale
• Hotels/Resort

SmartAVI HDS-4P Specifications
