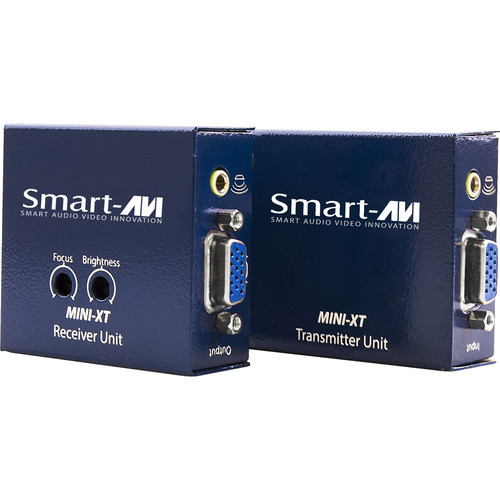

The Mini-XTS VGA Extender with Audio from Smart-AVI is a transmitter unit and a receiver unit set which extends a VGA video signal up to 1,000′ away over a single CAT5e/6 cable. At a 250′ distance the maximum video resolution is 1920 x 1200. In addition, audio can be transmitted via the 3.5mm jack. The receiver has adjustable brightness and focus attenuation dials, which give you better control over the video quality. Both the receiver and transmitter require power. They can be powered with the included power supplies, and the transmitter can be powered via the mini-USB port as well. The Mini-XTS is suitable for corporate and educational environments, industrial workstations, airports, medical campuses, production studios, and more.
The Mini-XT-RXS VGA Extender with Audio Receiver from Smart-AVI is a receiver unit which can receive a VGA video signal at up to 1,000′ away via a single CAT5e/6 cable. At a 250′ distance the maximum video resolution is 1920 x 1200. In addition, audio can be received via the 3.5mm jack. The unit has adjustable brightness and focus attenuation dials, which give you better control over the video quality. The receiver requires power, and can be powered with the included 5V power supply. The Mini-XT-RXS is suitable for corporate and educational environments, industrial workstations, airports, medical campuses, production studios, and more.
The Mini-XT-TXS VGA Extender with Audio Transmitter from Smart-AVI is a transmitter unit that can transmit a VGA video signal to up to 1,000′ away via a single CAT5e/6 cable. At a 250′ distance the maximum video resolution is 1920 x 1200. In addition, audio can be transmitted via the 3.5mm jack. The transmitter requires power, and can be powered with the included 5V power supply or via the mini-USB port. The Mini-XT-TXS is suitable for corporate and educational environments, industrial workstations, airports, medical campuses, production studios, and more.
| Connectors | 1 x RJ45, port 1 x VGA, video output 1 x 3.5 mm jack, audio output 1 x DC power jack, power input |
| Controls | 1 x Dial, focus 1 x Dial, bright with Ultra-Bright switch |
| Bandwidth | 150 MHz -3 dB @ 1500 V/us |
| Video Input Level | ±0.75 Vrms, typical |
| Maximum Resolution / Distance | 1920 x 1200 – 250′ (76.2 m) 1600 x 1200 – 325′ (99.1 m) 1440 x 900 – 500′ (152.4 m) 1280 x 1024 – 650′ (198.1 m) 1024 x 768 – 820′ (249.9 m) 800 x 600 – 1,000′ (304.8 m) |
| Audio Sampling Rate | 32 kHz, 24-bits @ 256 f/s |
| Audio Bandwidth | -0.1 dB @ 20 Hz -3 dB @ 126 kHz |
| Temperature | Operating: 32 to 122°F (0 to 50°C) Storage: -4 to 140°F (-20 to 60°C) |
| Humidity | 0 – 80% |
| Power Consumption | 300 mA |
| Power Source | 5 VDC, 2A |
| Dimensions | 2.6 x 2.0 x 1.1″ (6.5 x 5.2 x 2.7 cm) |
| Weight | 8.8 oz (249.5 g) |
| Connectors | 1 x RJ45, port 1 x VGA, video input 1 x 3.5 mm jack, audio input 1 x Mini-USB, port 1 x DC power jack, power input |
| Bandwidth | 150 MHz -3 dB @ 1500 V |
| Video Input Level | ±0.75 Vrms |
| Maximum Resolution / Distance | 1920 x 1200 – 250′ (76.2 m) 1600 x 1200 – 325′ (99.1 m) 1440 x 900 – 500′ (152.4 m) 1280 x 1024 – 650′ (198.1 m) 1024 x 768 – 820′ (249.9 m) 800 x 600 – 1,000′ (304.8 m) |
| Audio Sampling Rate | 32 kHz, 24-bits @ 256 f/s |
| Audio Input Impedance | 10 kOhms |
| Audio Input Level | 2 Vrms, line level |
| Temperature | Operating: 32 to 122°F (0 to 50°C) Storage: -4 to 140°F (-20 to 60°C) |
| Humidity | 0 – 80% |
| Power Consumption | 100 mA |
| Power Source | 5 VDC 2A, mini-USB |
| Dimensions | 2.6 x 2.0 x 1.1″ (6.5 x 5.2 x 2.7 cm) |
| Weight | 8.8 oz (249.5 g) |
