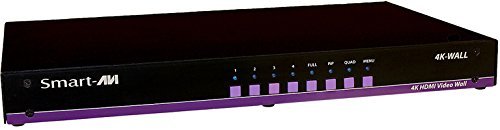

Smart-AVI SM-4KWL-S 4K-Wall Video Wall Processor

The SmartAVI 4K-Wall has four HDMI inputs, four HDMI outputs and support for 4K resolution, the 4K-Wall delivers the premium content that audiences expect. This video wall controller and matrix switch enables users to craft engaging messaging and attractive branding with ease. With numerous options for how each input is displayed, there’s no limit to the unique and exciting content options with this user-friendly hardware solution. Changing content inputs, re-directing what content shows on which screens, and re-orienting content layouts is as simple as the click of a button. Users don’t have to learn any new programs or dedicate a computer to managing the 4K-Wall.

Applications

• Airports
• Malls
• Mass Video Conferencing
• Entertainment Venues
• Corporate Lobbies
• Restaurants
• Financial
• Medical

Features

• Complete hardware solution – no need for a PC
• Plug-and-play ready
• Four HDMI inputs and four HDMI outputs
• DVI-D (up to 1920×1200 input) with adapter
• Learns any EDID
• Internal EDID database
• Multiple configurations
• Easy control and access
• HDCP and HDMI 1.4 compliant
• Supports IR and RS-232
• 4K2K/3840×2160 total (with 1920×1080 monitors)
