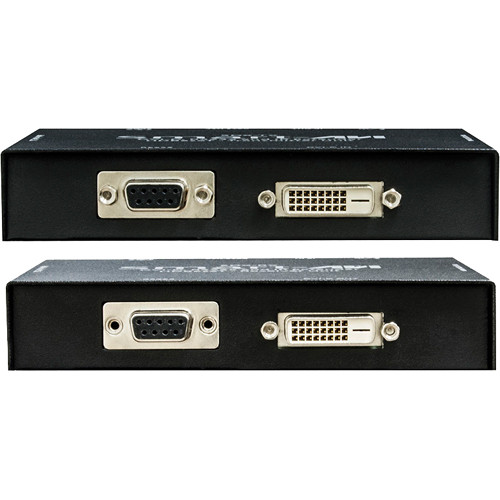

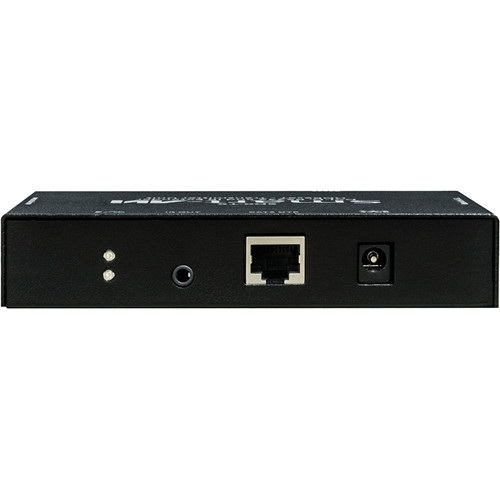

The Smart-AVI Super Range DVI-D & RS232 IR Extender Set is capable of sending DVI-D signals up to 400’ (120m) over a single conventional CAT5/5e/6 cable. The HDBaseT technology requires a special CAT6 shielded cable to go a short distance. This SDX Extender Set also has RS232 and IR extension, giving you the ability to control your displays or devices remotely.
| Format | Video: DVI-D Single Line |
| Maximum Pixel Clock | Video: 165 MHz |
| Interface | Video Input (Transmitter): 1 x DVI-D 29-pin female Output (Receiver): 1 x DVI-D 29-pin female RS232 IR |
| Resolution | Video: Up to 1920 x 1200 @ 60 Hz |
| DDC | Video: 5 Vpp (TTL) |
| Input Equalization | Video: Automatic |
| Cable Length | Video Input: Up to 20.0′ (6.1 m) Output: Up to 20.0′ (6.1 m) |
| Signal Type | USB: OHCI/UHCI (USB 1.1) |
| Speed | RS232: @ 115 kb/s |
| Frequency Response | IR: 30 to 80 kHz |
| Power | External 100 to 240 VAC/5 VDC, 4 A @20 W |
| Temperature | Operating: 32 to 131°F (0 to 55°C) Storage: -4 to 185°F (-20 to 85°C) |
| Humidity | Up to 95% |
| Dimensions | 5.13 x 1.00 x 3.63″ (130.3 x 25.40 x 92.20 mm) |
| Weight | 0.50 lb (0.23 kg) |
